Overview

TRENDnet’s 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports, a 120W PoE power budget, and two dedicated SFP slots. Users are able to connect four PoE+ devices and two SFP modules to this industrial variable voltage PoE+ switch with a 12Gbps switching capacity for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 55V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

Ultra PoE

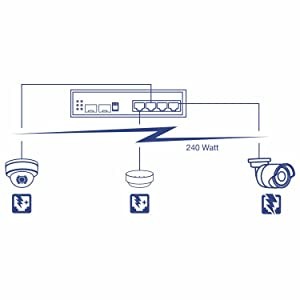

A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power

Fault Tolerance

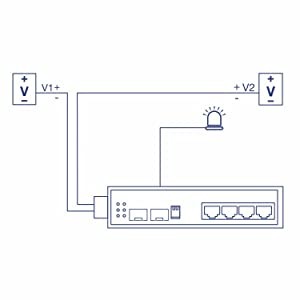

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

Industrial Hardened Design

Equipped with a rugged IP rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

Network Ports

4 x Gigabit PoE+ ports and 2 x dedicated SFP slots

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Switching Capacity

12 Gbps switching capacity

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Grounding Point

Grounding point protects equipment from external electrical surges

Electro Magnetic Compliance

Complies with FCC, Class A and CE EN Class A standards

Shock and Vibration Resistant

Rated for shock, freefall, and vibration

Rated for Extreme Environments

Rugged IP30 rated enclosure designed to withstand a high degree of vibration, shock, and operate within a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

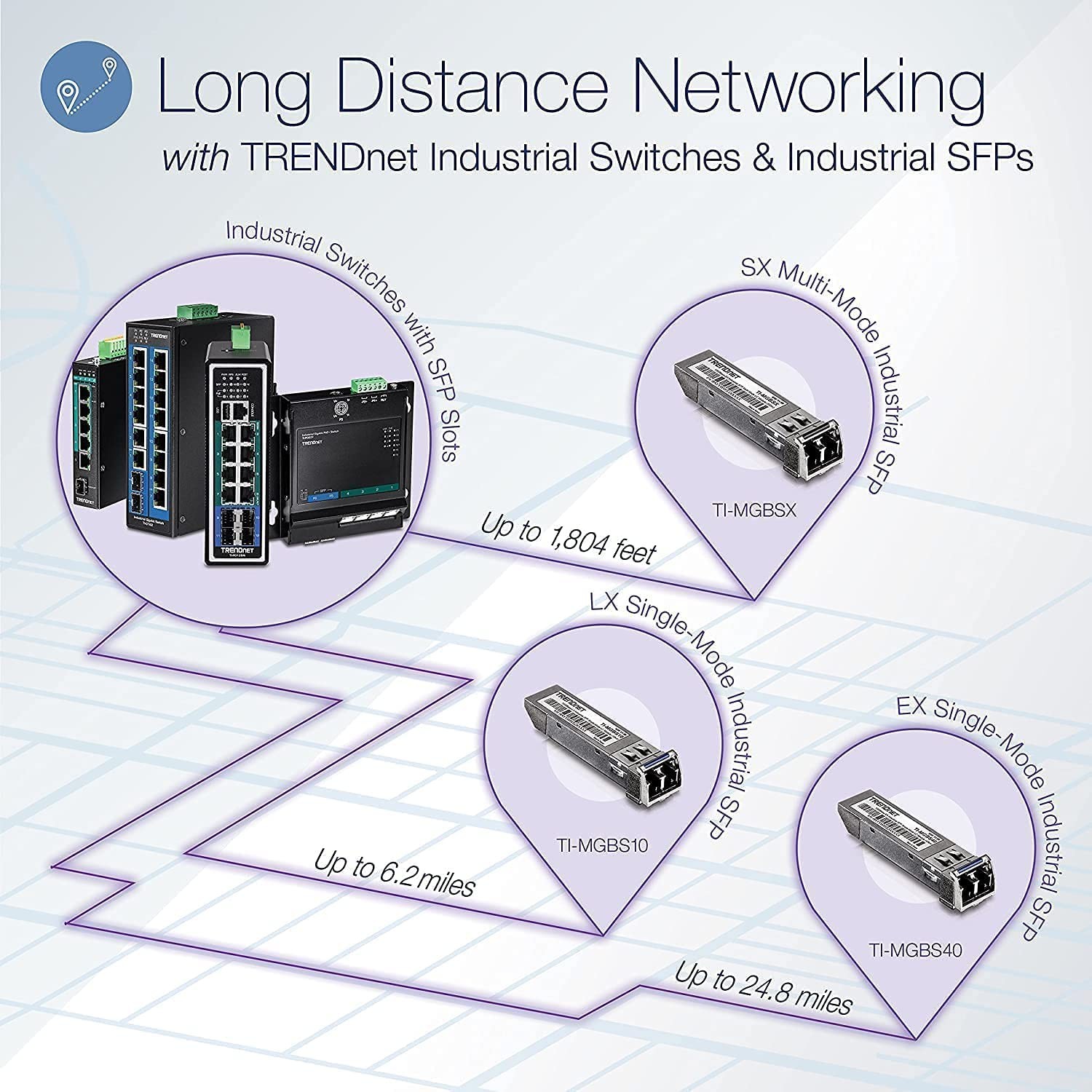

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at

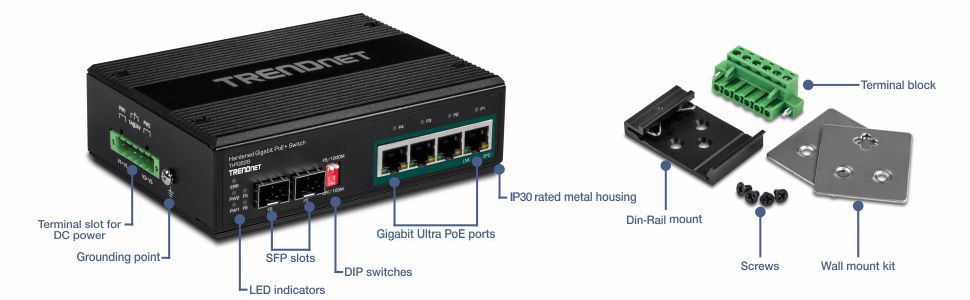

Device Interface	4 x Gigabit PoE+ ports 2 x 100/1000Mbps SFP slots 6-pin removable terminal block LED indicators DIP switch DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 1024 KB Switching Fabric: 12 Gbps MAC Address Table: 1 K entries Jumbo Frame: 9 KB Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Supports 12/24/48 power inputs Voltage booster boost up to 55V DC Dual redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 6KV support
DC Power	Input: 12/24/48 V DC Output: up to 55 V DC Compatible power supply: TI-S15052, TI-S24052, TI-S12024, TI-S12048, TI-S24048, TI-M6024 (sold separately) Consumption: Max. 5.76 Watts (no PoE)
PoE	PoE budget: 120W @ 24VDC/48VDC/56VDC PoE budget: 60W @ 12VDC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
DIP Switch	1: OFF (port 5 SFP on, default), ON (port 5 SFP off) 2: OFF (SFP 1000M, default), ON (SFP 100M)
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when one power source is connected Short circuit mode when two power sources are connected
MTBF	510,304 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point 6 KV ESD protection
Operating Temperature	- 40 to 75 °C (-40 to 167 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	143 x 105 x 45 mm (5.6 x 4.1 x 1.8 in.)
Weight	700 g (1.6 lb)
Certifications	CE FCC Shock (EN 60068-2-27) Freefall (EN 60068-2-32) Vibration (EN 60068-2-6)

PACKAGE CONTENTS

TI-PG62B
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
