OVERVIEW

TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-Rail PoE++ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE++ ports, a 240W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. This hardened industrial switch features multiple redundant power inputs and a power failure alarm relay.

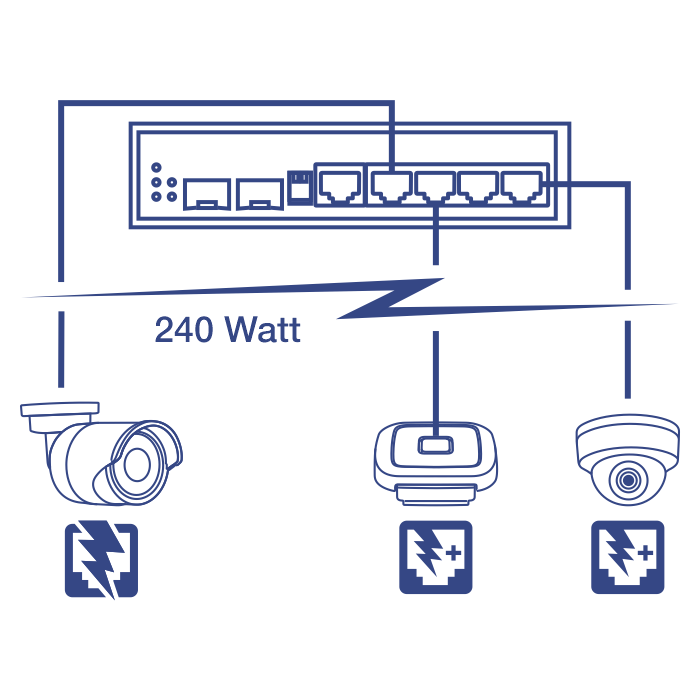

Ultra PoE

A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

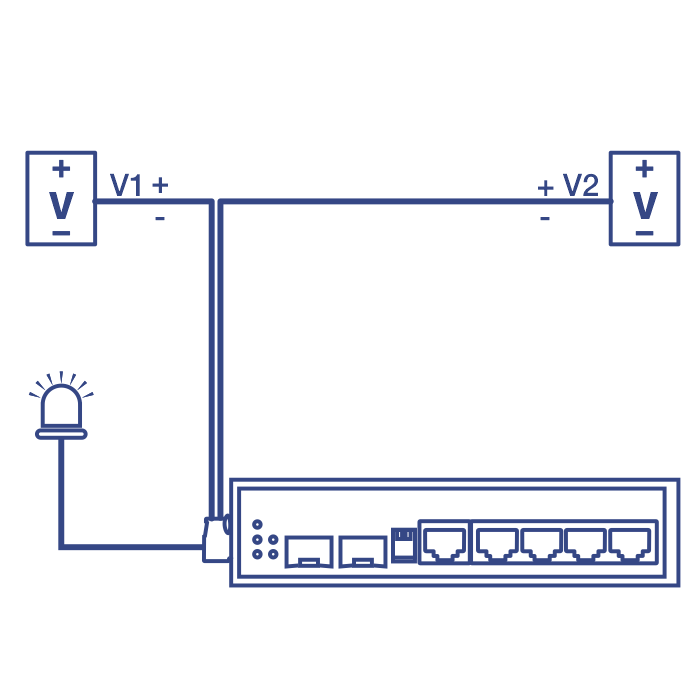

Fault Tolerance

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

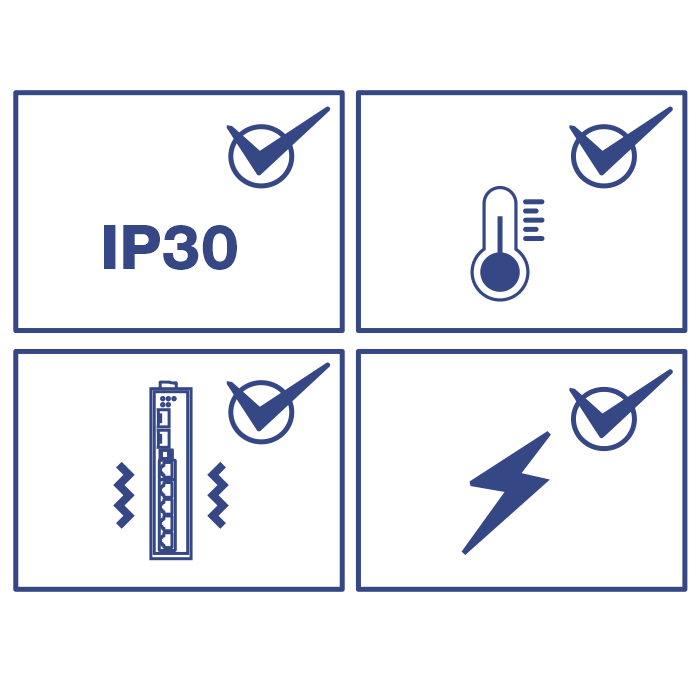

Industrial Hardened Design

Equipped with a rugged rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

Network Ports

4 x Gigabit Ultra PoE ports and 2 x dedicated SFP slots

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Switching Capacity

12 Gbps switching capacity

Redundant Power

Dual redundant power inputs with overload current protection (power supplies sold separately, model TI-S24048)

Shock and Vibration Resistant

Rated for shock, free fall, and vibration

Grounding Point

Grounding point protects equipment from external electrical surges

Electro Magnetic Compliance

Complies with FCC and CE standards

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3bt

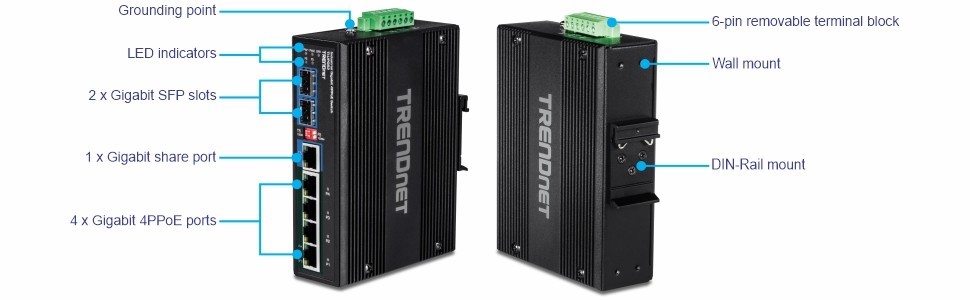

Device Interface	4 x Gigabit PoE++ ports 1 x Gigabit share port 2 x Gigabit SFP slots 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) Fiber: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 12Gbps MAC Address Table: 1K entries Jumbo Frame: 9KB Forwarding rate: 8.9Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Multiple power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging
DC Power	Input: 52 - 56V DC Compatible power supply: TI-S24052, TI-S24048 (sold separately) Max. consumption: 6.2W (no PD)
PoE	PoE: up to 15.4W per port PoE+: up to 30W per port PoE++: up to 90W per port Power budget: 240W
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
DIP Switch	1: OFF (port 5 SFP on, default), ON (port 5 SFP off) 2: OFF (SFP 1000M, default), ON (SFP 100M)
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	510,304 hours
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point ESD Protection: Contact: 6kV / Air: 8kV Surge Protection: 2kV
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	143 x 105 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight	514g (1.1 lb)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-UPG62
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
