OVERVIEW

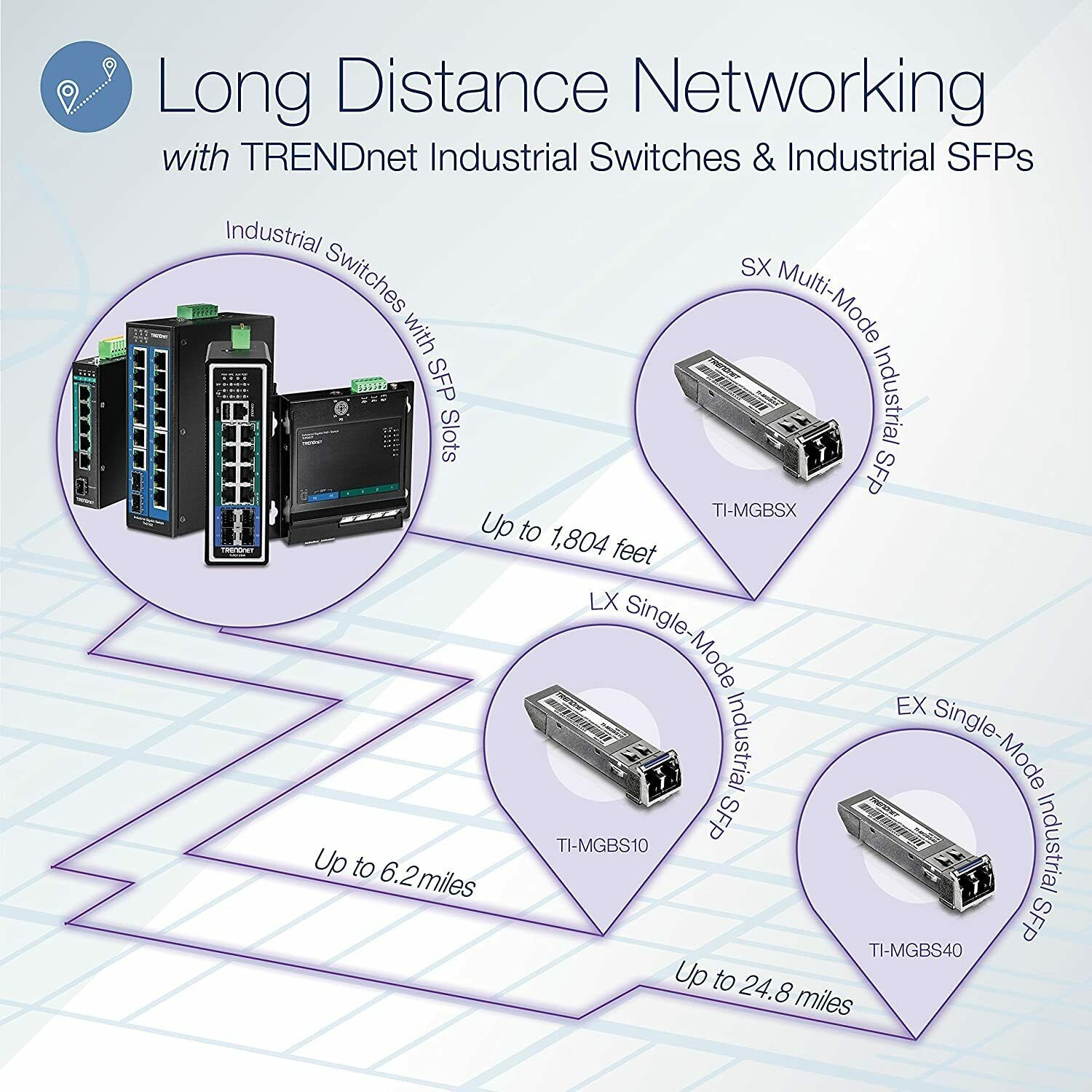

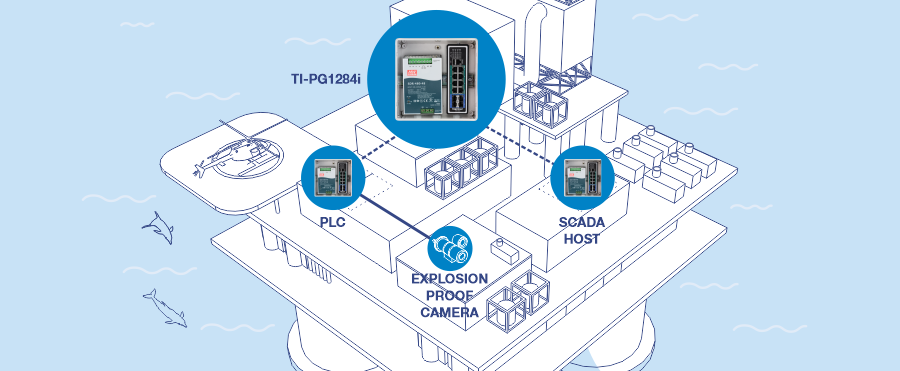

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

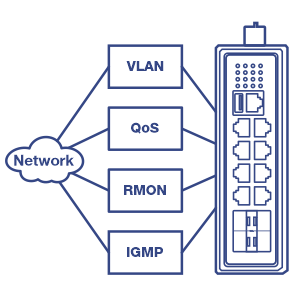

L2+ Management

Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.

PoE Power

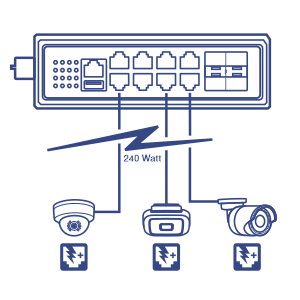

A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Network Ports

8 x Gigabit PoE+ ports, 4 x Gigabit SFP slots allow for a 24Gbps switching capacity, and 1 x console port (RJ-45 to RS-232) for out-of-band management

Traffic Management

Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, Xpress Ring, and ERPS for flexible network integration

DIN-Rail Mount

P30 rated metal enclosure with integrated DIN-Rail mounting hardware

Switching Capacity

24Gbps switching capacity

System Monitoring

Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI, and ModBus / TCP

Alarm Relay

Alarm relay output triggered by power failure of primary and/or redundant power

Shock and Vibration Resistant

Rated for shock , freefall and vibration

Grounding Point

Grounding point protects equipment from external electrical surges

TRENDnet hardened industrial switches

SPECIFICATIONS

Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at

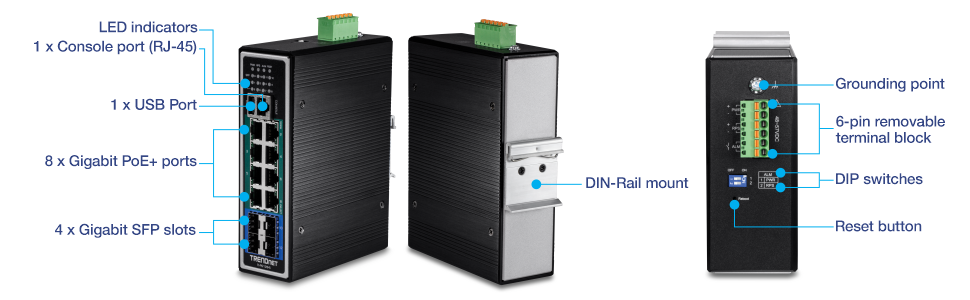

Device Interface

8 x Gigabit PoE+ ports
4 x Gigabit SFP slots
1 x Console port (RJ-45)
1 x USB Port (firmware update, logs, configuration)
6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
DIP switches
LED indicators
Reboot button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)

Performance

Switch fabric: 24Gbps
RAM buffer: 512MB
MAC address table: 16K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 17.9Mpps (64-byte packet size)

Management

HTTP web-based GUI
CLI: Telnet / SSHv2
SNMP v1, v2c, v3
SNMP trap (up to 5 receivers)
RMON groups 1/2/3/9
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
Multiple administrative or read-only user accounts
Enable or disable power saving mode per port
Static MAC entries
LLDP (Link layer discovery protocol)
Netlite device map
ONVIF device discovery
SNTP
SMTP alert
Syslog
Port statistics/utilization
Traffic monitor
Port mirror: one to one, many to one
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
Loopback detection
DHCP relay/option 82
Xpress Ring
ERPS (Ethernet Ring Protection Switching) G8032v2
SFP DDMI (Digital Diagnostic Monitoring Interface)

MIB

MIB II RFC 1213
Bridge MIB RFC 1493
RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
IEEE 802.1s MSTP (multiple spanning tree protocol)
BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN
MAC-based VLAN
Port isolation
Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3
IGMP querier
IGMP fast leave
Up to 256 multicast groups
Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
DHCP snooping/screening
Trusted host/IP access list for management access
Port Security/MAC address learning restriction (Up to 100 entries per port)
Static/dynamic ARP inspection

ACL

Source/Destination MAC address
Source/Destination IP address
Source Interface
VLAN ID
EtherType
TCP/UDP port 1-65535

Layer 3 Features

IPv4 / IPv6 static routing
IPv4 / IPv6 proxy ARP
IP interfaces: Up to 16
Routing table entries: Up to 500 (IPv4: 400 / IPv6: 100)
DHCP Relay / Option 82

Special Features

Netlite device discovery and map display in GUI
Port security: MAC address learning restriction per port
DHCP relay/option 82 & DHCP server snooping/screening support
Wide operating temperature range
Dual redundant power inputs
Alarm relay triggered by power failure
Surge and ESD protection

Power

PWR (Primary) terminal input: 48 – 57V DC
RPS (Redundant) terminal input: 48 – 57V DC
Compatible power supply: TI-S48048 (480W) sold separately
Max. Consumption: 15W (no PoE load); 258W (full PoE load)

PoE

PoE budget: 240W@48V DC input
802.3at: Up to 30W per port
PoE Mode A: Pins 1, 2, 3, and 6 for power
PoE auto classification
PoE port priority/power scheduling/PD alive check
Over current/short circuit protection

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.5 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-26
Stranded wire (AWG): 12-26
Wire strip length: 10-11mm

DIP Switch

Switch	Status	Function
1	OFF	Disable alarm relay for PWR power input
1	ON	Enable alarm relay for power failure on PWR power input
2	OFF	Disable alarm relay for RPS power input
2	ON	Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC
Short circuit mode when one power source is connected
Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure
Fanless passive cooling
DIN-Rail mount
Grounding point
ESD (Ethernet) Protection: 8KV DC
Surge (Power) Protection: 6KV DC

MTBF

562,234 499,126 hours @ 25° C
142,948 104,194hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

964g (2.12 lbs.)

Certifications

CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG1284i
Quick Installation Guide
Removable terminal block
Console cable (RJ-45 to RS-232)
DIN-Rail mounting bracket
