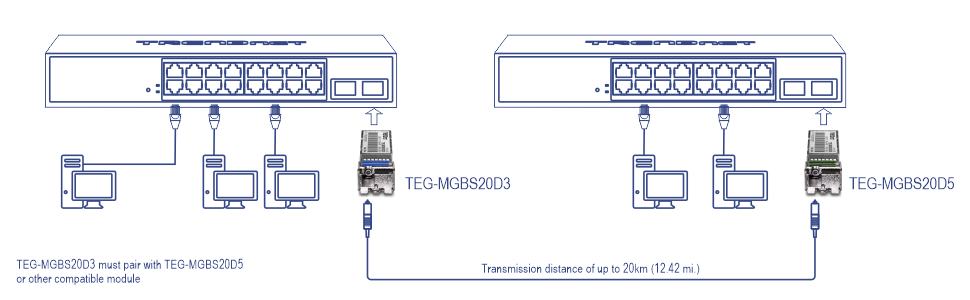

TRENDnet’s TEG-MGBS20D3 when paired with the TEG-MGBS20D5 creates a long distance, single strand fiber solution with a range of up to 20 KM (12.4 miles). Alternatively grow your pre-existing two-strand fiber connection, and turn it into two separate single-strand fiber connections. The SFP interface is compatible with standard SFP slots and offers a 1000BASE-LX SFP interface.

Fiber Applications

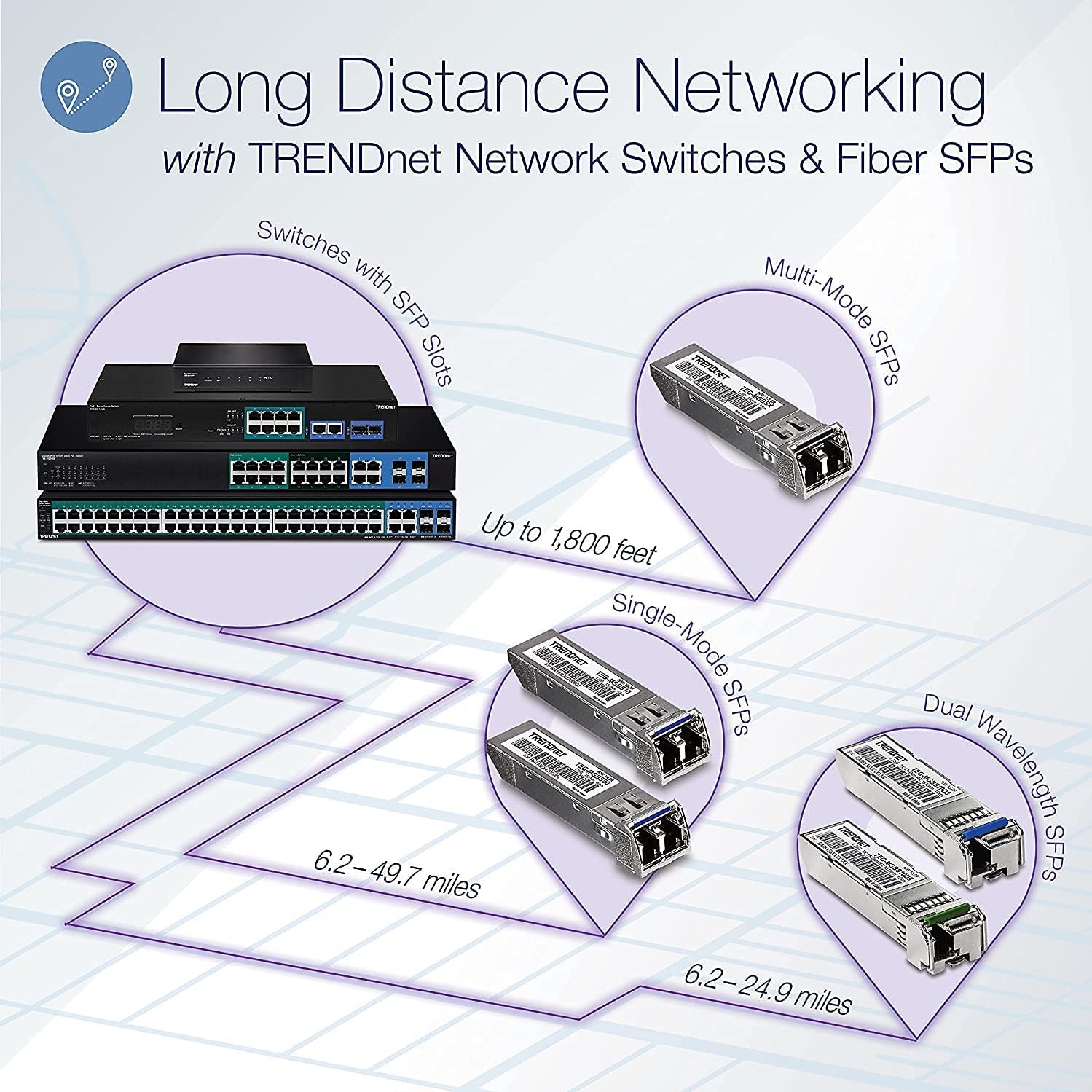

Long-distance fiber networking for manufacturing, business parks, and school campus applications

Fiber Mode/Distance


Single mode SFP transceiver spans distances up to 20km (12.42 mi.) at gigabit speeds.

Compatibility

Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type simplex connectors.


Fiber Distance

Ideal for long-range networking distances up to 20km (12.42 mi.)

Fiber Interface

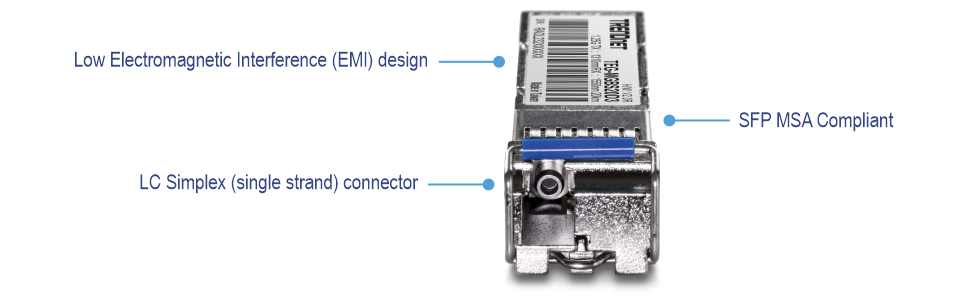

This single mode fiber BiDi SFP transceiver supports LC-type simplex connector

Bi-Directional SFP

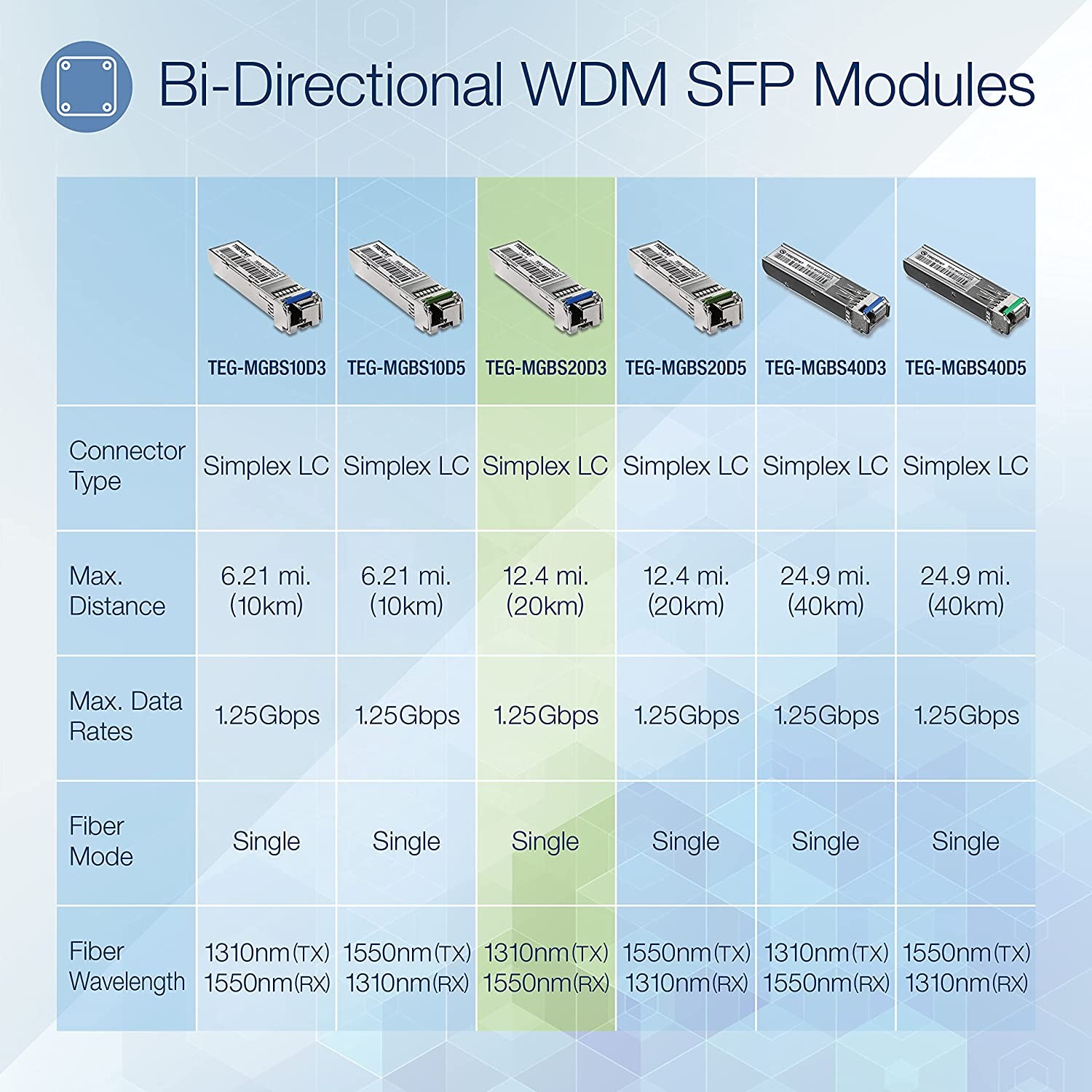

Transmit: 1310nm / Receive: 1550nm, pair with TEG-MGBS20D5 or compatible SFP module

Hot-Pluggable SFP

Hot-pluggable WDM SFP module compatible with an MSA compliant SFP slot

Operating Temperature

This BiDi SFP module is rated for an operating temperature range of 0° - 70° C (-32° - 158° F)


SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC Simplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • TX: 1310nm
  • RX: 1550nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 20km (12.42 mi)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -25 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-MGBS20D3
  • Quick Installation Guide
