TRENDnet’s TEG-MGBS20D5 when paired with the TEG-MGBS20D3 creates a long distance, single strand fiber solution with a range of up to 20 KM (12.4 miles). Alternatively grow your pre-existing two-strand fiber connection, and turn it into two separate single-strand fiber connections. The SFP interface is compatible with standard SFP slots and offers a 1000BASE-LX SFP interface.

Fiber Applications

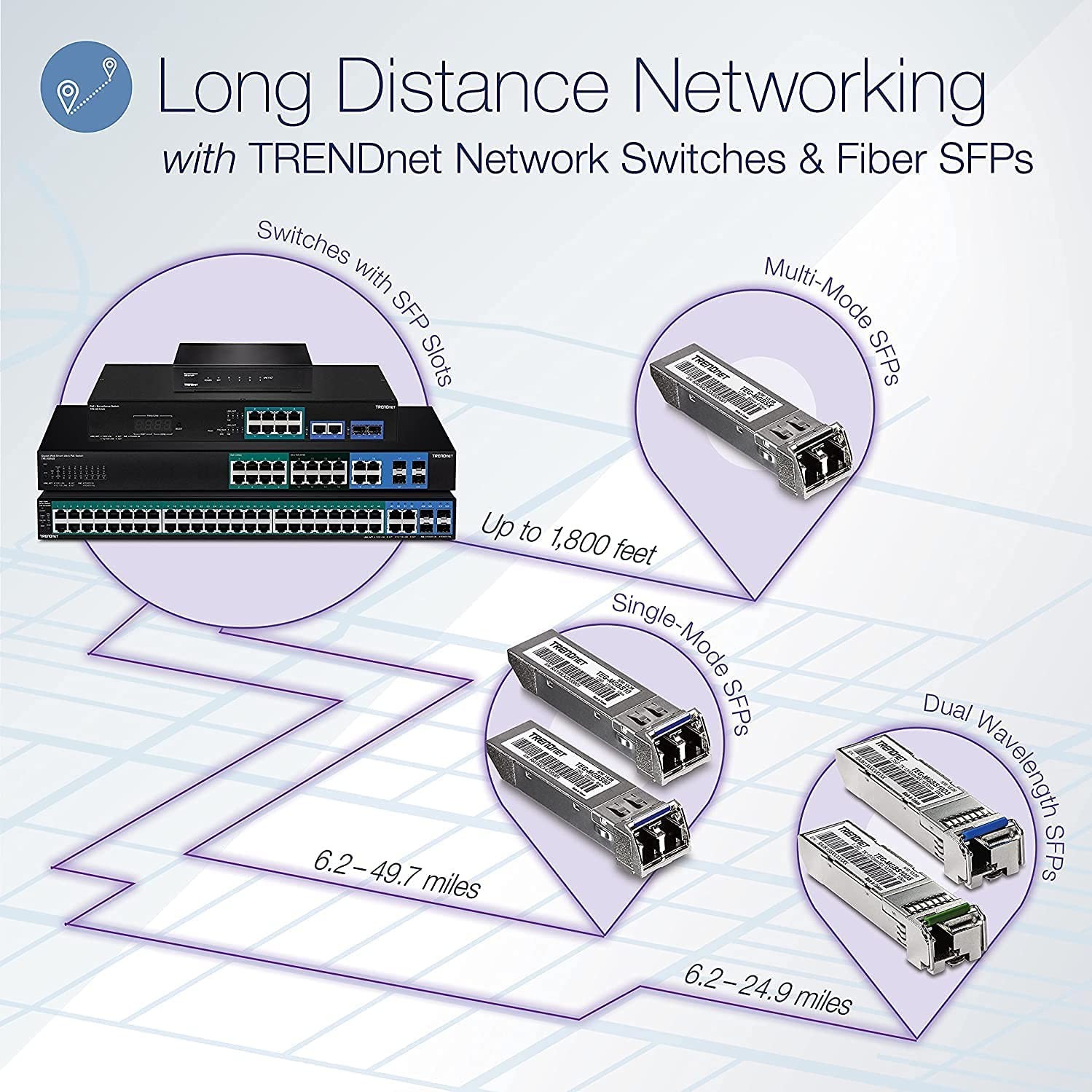

Long-distance fiber networking for manufacturing, business parks, and school campus applications.

Fiber Mode/Distance

Single mode SFP transceiver spans distances up to 20km (12.42 mi.) at gigabit speeds.

Compatibility


Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type simplex connectors.

Fiber Distance

Ideal for long-range networking distances up to 20km (12.42 mi.)

Fiber Interface

This single mode fiber BiDi SFP transceiver supports LC-type simplex connector

Bi-Directional Fiber

Transmit: 1550nm / Receive: 1310nm, pair with TEG-MGBS20D3 or compatible SFP module

Hot-Pluggable SFP

Hot-pluggable SFP transceiver compatible with an MSA compliant SFP slot

Operating Temperature

Rated for an operating temperature range of 0° - 70° C (-32° - 158° F)

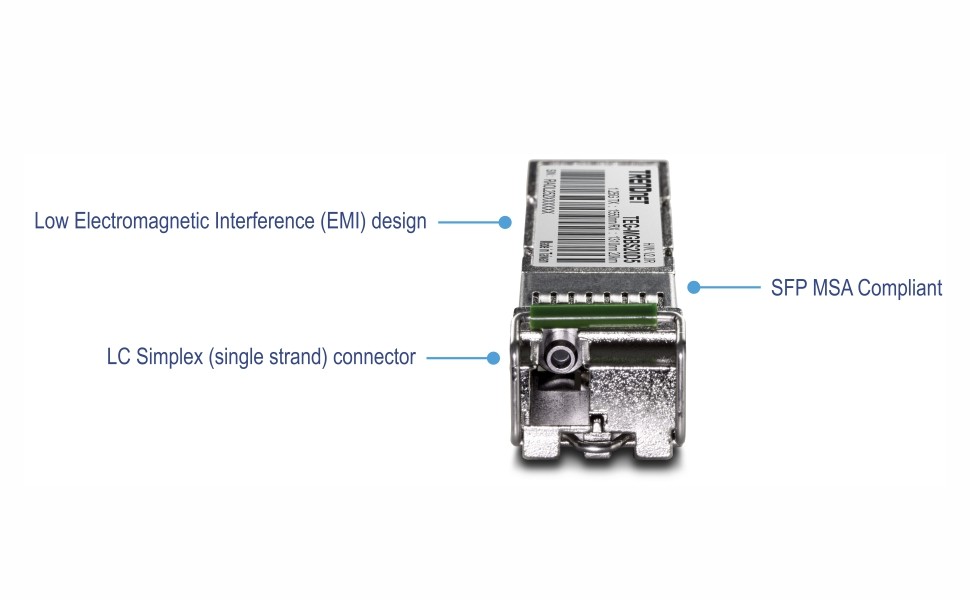

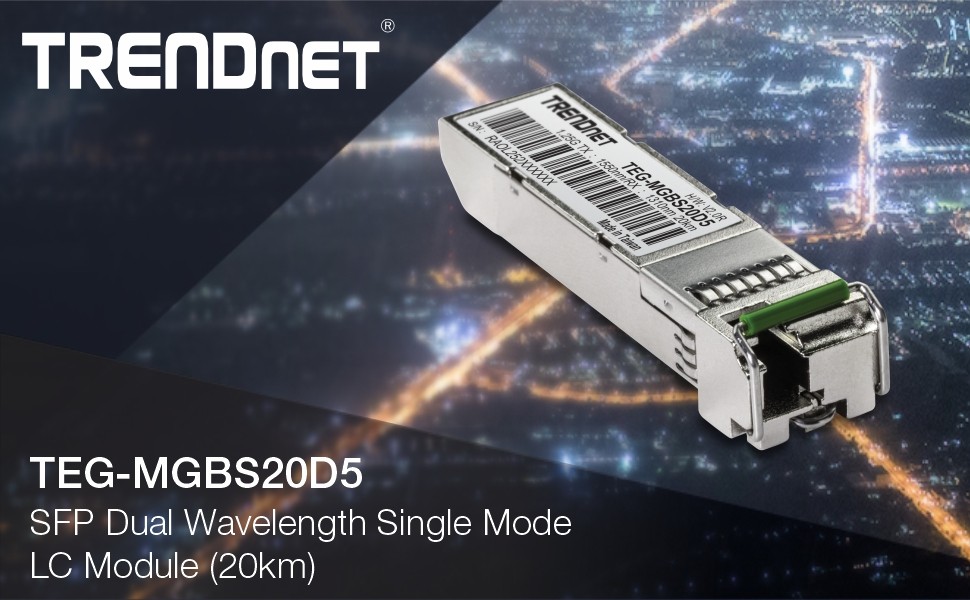

SFP Dual Wavelength Single Mode LC Module (20km)

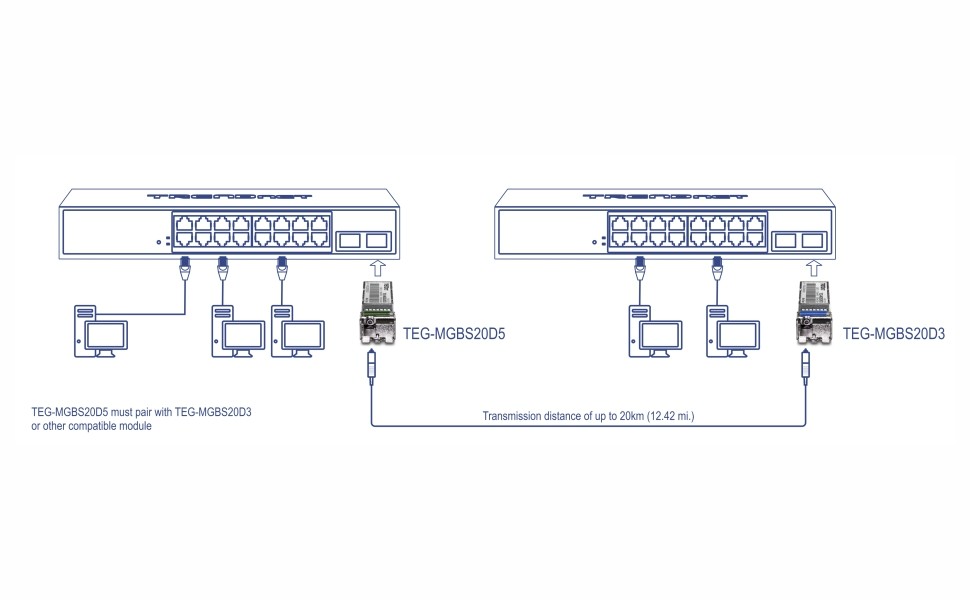

  • Must pair with TEG-MGBS20D3 or other compatible module
  • Transmission distance of up to 20km (12.42 mi.)
  • LC Simplex (single strand) connector type

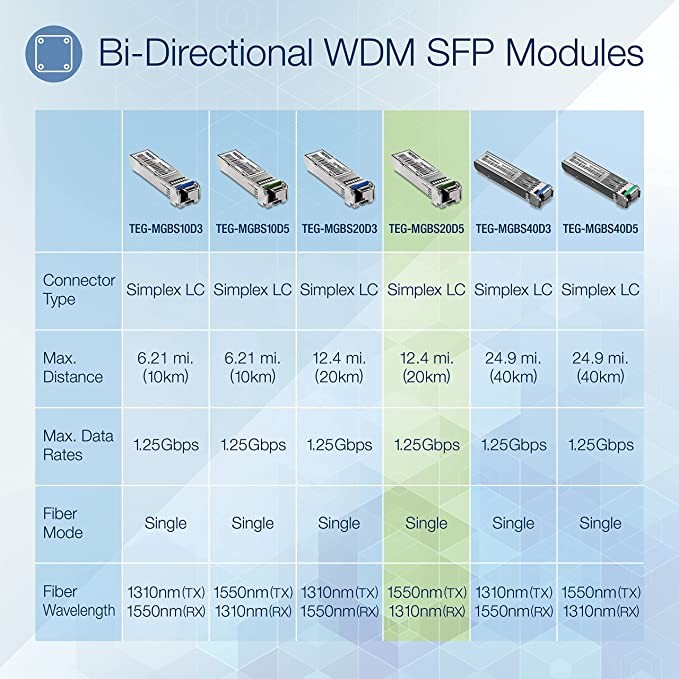

  • Bi-Directional (WDM) SFP Module
  • Supports data rates of up to 1.25Gbps
  • Supports Transmit: 1310nm / Receive: 1550nm
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC Simplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • TX: 1550nm
  • RX: 1310nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 20km (12.42 mi)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -25 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-MGBS20D5
  • Quick Installation Guide


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
