A Smart Solution for Long-Run HDMI Applications
Because the video source does not have to be close to the display, you can secure the source device in a safe remote location for controlled access. The B126-1A1-U uses Cat5e/6 cabling to connect HDMI sources, such as Blu-ray players, laptops and computers, with HDMI display devices, including high-definition televisions, projectors and monitors. It’s ideal for point-of-sale and other retail displays, trade show presentations, churches, schools and even home theater applications.
Supports 1080p at a 60 Hz Refresh Rate
The B126-1A1-U supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz, as well as stereo audio and HDCP. An eight-level equalization control lets you fine-tune the image quality on the remote display using an included screwdriver. You can also connect an HDMI monitor to the transmitter’s local port with a user-supplied HDMI cable, such as Tripp Lite’s P568-Series.
Latching Connectors Ensure Continuous A/V Signal

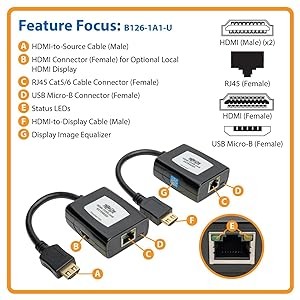

To ensure a continuous signal, the built-in HDMI cables on both the transmitter and receiver feature latching connectors that protect the cables from becoming loose or accidentally dislodged.
Convenient Plug-and-Play Setup & Warranty

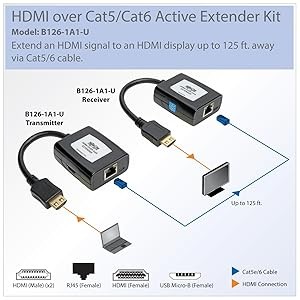

With no software or drivers to install, the B126-1A1-U’s plug-and-play setup gets your application up and running faster, no matter which major operating system you use. The transmitter’s built-in HDMI cable connects to the audio/video source, while the receiver’s built-in HDMI cable connects to the display. An inexpensive user-supplied Cat5e/6 cable (for best results, use a 24 AWG solid-wire cable, such as Tripp Lite’s N202-Series) connects the transmitter and the receiver. Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the connected device or a USB wall charger. LEDs indicate the units are receiving power and a signal from the source.
TAA-Compliant for GSA Schedule Purchases
The B126-1A1-U is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty and Environmentally Responsible Design
The B126-1A1-U comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
