TRENDnet’s TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.

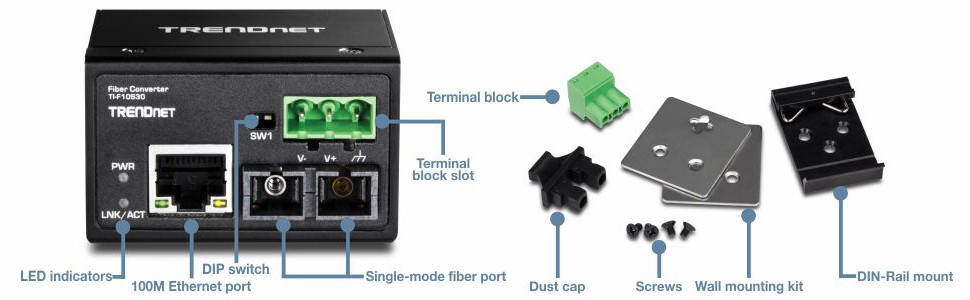

Network Ports

1 x 10/100 Mbps Ethernet port and 1 x 100Base-FX SC-type fiber port

Fiber

100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles)

Dip Switches

Dip Switch 1: Enable/disable Link Fault Pass Through (LFP) support
Dip Switch 2: Converter mode or switch mode

DIN-Rail/Wall Mounts

IP40 rated metal enclosure with included DIN-rail and wall mount hardware

Extreme Temperatures

Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

LED indicators

LED indicators confirm network connectivity

Grounding

Grounding point protects equipment from external electrical surges

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x
Device Interface	1 x 10/100 Mbps port 1 x 100Base-FX port (SC-type) 3-pin terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Special Features	Hardened components rated for extreme temperatures Auto-Negotiation Link Fault Pass Through (LFP) Converter mode, switch mode ESD 8 KV and Surge 6 KV protection
Fiber	Media: Single-mode SC connector Cable: 9 / 125 µm Wavelength: 1310 nm Optical Output Power (dBm): -15 ~ -8 Optical Input Power (dBm): -34 ~ 0 Power Budget: 7 Distance: 30 km
Power	Input: 12 – 60 V DC or 18 – 36 V AC Compatible power supply: TI-M6024 (sold separately) Consumption: Max. 1.92 Watts
Terminal Block	Redundant power inputs, 3 pin Wire range: 0.34 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm Wire strip length: 7 – 8 mm
MTBF	510,304 hours
Housing	IP40 metal case DIN-rail mount Wall mount Grounding point 8 KV ESD protection 6 KV surge protection
Operating Temperature	- 40 to 75 °C (-40 to 167 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	60 x 50 x 35 mm. (2.4 x 2 x 1.4 in.)
Weight	90 g (3.2 oz.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-F10SC30
Quick Installation Guide
Removable terminal block
DIN-rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
