TRENDnet's TI-IG30 is a reliable IP30 rated Gigabit PoE + industrial injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch, then run an Ethernet cable up to 328.1 ft (328 ft) to connect a high-power PoE, PoE +, or PoE + device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection supports zero downtime applications. Both DIN rail bracket and wall mount are included.

Plug and play

PoE Plug and Play Network Devices

PoE / PoE +

Supplies power to a PoE device (up to 15 W) and PoE + (up to 30 W)

Gigabit ports

1 Gigabit Ethernet port and 1 PoE + Gigabit Ethernet port

Extension distance

Extends a PoE network connection up to 328.1 ft (328 ft).

DIN-Rail / Wall Brackets

IP30 rated metal enclosure with DIN rail and wall mount accessories included.

Extreme temperatures

The hardened converter is rated for an operating temperature range of -40 to 75ºC (-40 to 167ºF)

Redundant power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)

Electro magnetic compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A regulations

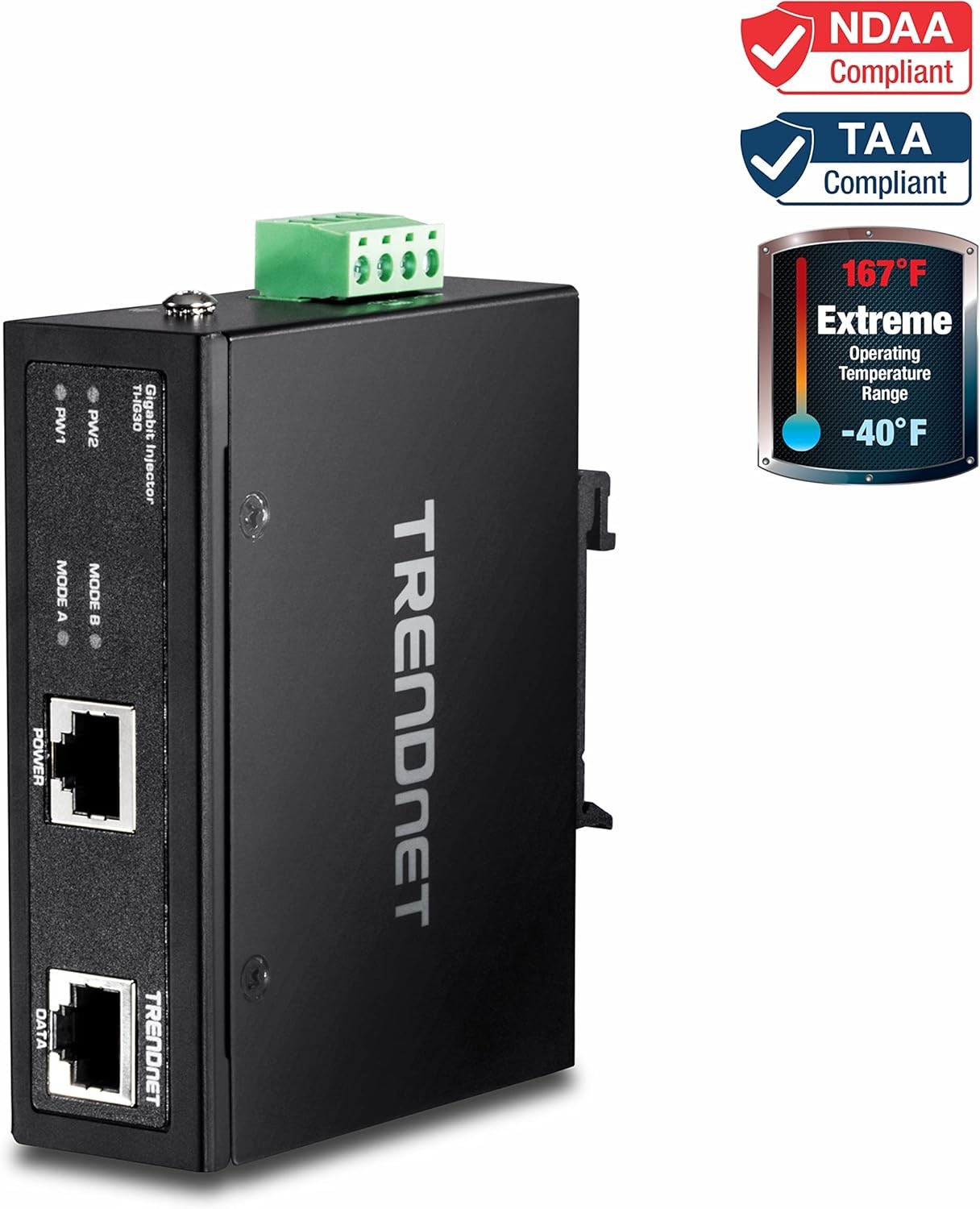

Hardened Industrial Gigabit PoE+ Injector

  • Hardened IP30 rated Gigabit PoE+ Injector
  • High power PoE+
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Includes DIN-rail and wall mounts
  • Power supply sold separately (model TI-S15052, TI-S12048)
  • NDAA / TAA compliant

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at

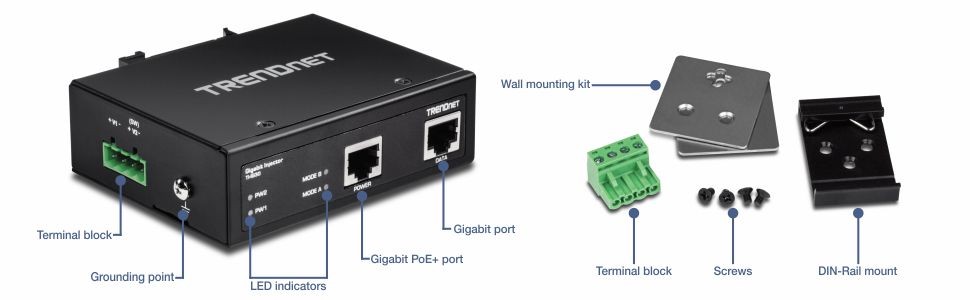

Device Interface
  • 1 x Gigabit port
  • 1 x PoE+ Gigabit port
  • 4-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • ESD 8 KV and Surge 6 KV protection
Power
  • Input: 48 – 56 V DC
  • Compatible power supply: TI-S15052, TI-S12048 (sold separately)
  • Consumption: Max. 36 Watts
PoE
  • PoE budget: 30 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7 – 8 mm
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Weight
  • 134 g (4.7 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TI-IG30
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
