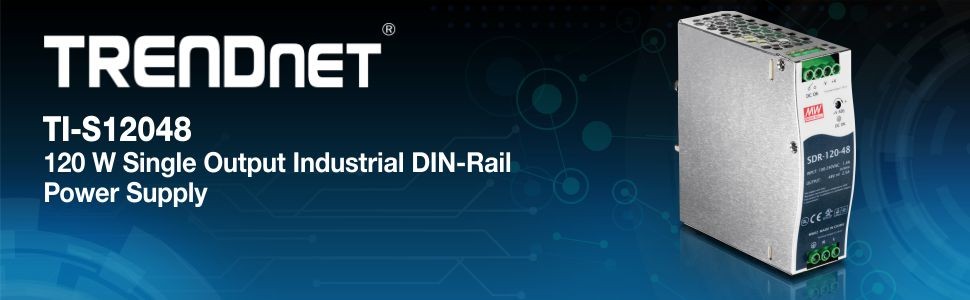

TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection

120 Watt Power

Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points

Active PFC

The built-in active Power Factor Controller (PFC, PF>0.93) helps eliminate unusable reactive power

Overload Protection

Overload/short circuit/over voltage/over temperature protection

Full Load Test

This power supply undergoes a 100 % full load burn-in test

Extreme Temperatures

Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)

LED Indicator

LED indicator confirms power to the unit

DIN-Rail Mount

Metal enclosure with integrated DIN-rail mount

Vibration Resistant

Rated for vibration (IEC 60068-2-6)

SPECIFICATIONS

Interface	Input: 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC Output: 120 Watts, 48 V, 2.5 A DIN-rail: TS-35/7.5 or 15
Housing	Metal case DIN-rail mount LED indicator confirms power to the unit
Special Features	DC OK relay contact 150% peak load capacity Short circuit/overload/over voltage/over temperature protection Protection type: shut down and repower
Operating Temperature	- 25 to 70 °C (- 13 to 158 °F) Max. 95 % non-condensing
MTBF	2,899,000 hours
Dimensions	40 x 125 x 114 mm (1.6 x 4.9 x 4.5 in.)
Weight	670 g (23.6 oz.)
Certifications (Mean Well)	CE UL 508CB 60950-1 TUV EN60950-1
Warranty	1 year

PACKAGE CONTENTS

TI-S12048
