Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

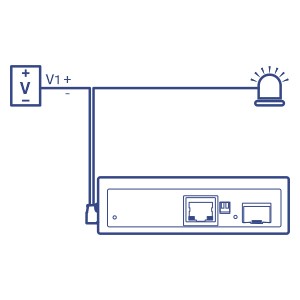

Alarm Relay

12 – 56V DC power input with overload current protection.

Industrial Hardened Design

Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range (-45° - 75° C (-40°a – 167° F)).

Network Ports

1 x Gigabit Ethernet port and 1 x SFP slot

Dip Switches

1: Turns LFP (Link Fault Pass Through) on/off

2: Set SFP speed to 100Mbps or 1000Mbps

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

2 Gbps switching capacity

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Grounding Point

Grounding point protects equipment from external electrical surges

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x

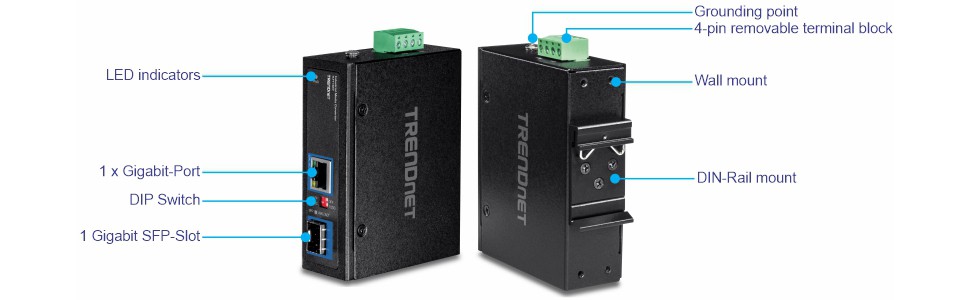

Device Interface
  • 1 x Gigabit port
  • 1 x Gigabit SFP slot
  • 4-pin removable terminal block
  • LED indicators
  • DIP Switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • Fiber: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • Jumbo Frame: 16KB
Special Features
  • Hardened components rated for extreme temperatures
  • 12 – 56V DC power input
  • Alarm Relay
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8KV and Surge 2KV protection
Power
  • Input: 12 – 56V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption:
    • 1.8W @12VDC
    • 2.16W @24VDC
    • 3W @48V
    • 3.36W @56VDC
Terminal Block
  • Power input: 4-pin terminal block
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
DIP Switch
  • 1: Turns LFP (Link Fault Pass Through) on/off
  • 2: Set SFP speed to 100Mbps or 1000Mbps
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 8KV ESD protection
  • 2KV surge protection
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 103 x 80 x 31mm (4.1 x 3.2 x 1.2 in.)
Weight
  • 142g (5 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3 year
PACKAGE CONTENTS
  • TI-F11SFP
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail / wall mount kit
