OVERVIEW

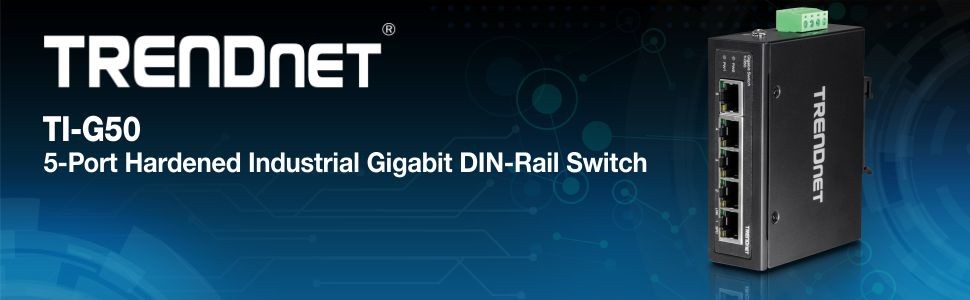

TRENDnet's TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.

Network Ports

5 x Gigabit Ethernet ports

DIN-Rail/Wall Mounts

Metal enclosure protection with included DIN rail and wall-mounting hardware

Switching Capacity

10 Gbps switching capacity

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)

Extreme Temperatures

Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Grounding Point

Grounding point protects equipment from external electrical surges

Electro Magnetic Compliance

Complies with FCC and CE standards

Shock and Vibration Resistant

Rated for shock, freefall, and vibration

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x

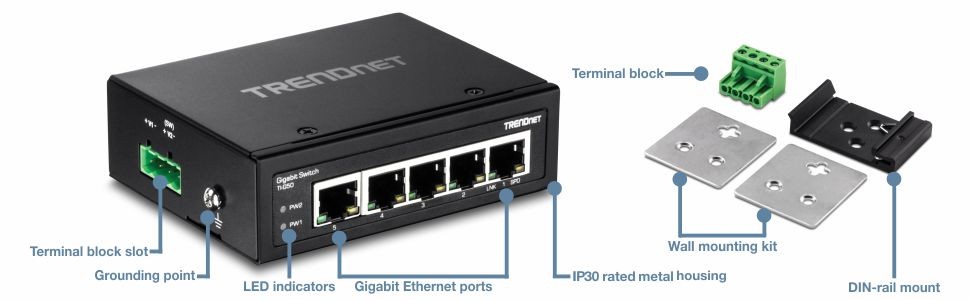

Device Interface
  • 5 x Gigabit ports
  • 4-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 125 KB
  • Switching Fabric: 10 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 7.44 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 kV and Surge 2 kV protection
Power
  • Input: 12 - 56 V DC or 18 - 36 V AC
  • Compatible power supply: TI-M6024 (sold separately)
  • Consumption: Max. 2.76 Watts
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 kV ESD protection
  • 2 kV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.)
Weight
  • 168 g (5.9 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TI-G50
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
