Seamless Access and Sharing System

The Vertiv Avocent HMX IP KVM System (5000-6000 series) is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications that require high resolution and zero latency such as in broadcasting, sports venues, pre- and post-production editing, control rooms and collaborative environments. An IP-based KVM (keyboard, video, mouse) extender, it allows critical computing hardware to be housed remotely from the user workstation in a secure, temperature-controlled environment. It is designed to improve productivity, reduce IT costs and produce better business results. This KVM system provides powerful administrative tools and connection-management control for the network resources without compromising quality.


  • Security via TLS certificate-based encryption
  • Local area network (LAN) operation with unlimited extension distances; no need for dedicated cabling between user and computer
  • Onscreen (OSD) display at each user station; remote OSD allows video to be pushed and controlled at another station or video wall
  • System backups stored internally, externally or via email
  • Updates may be scheduled hourly, daily or weekly


Hardware security, full access

The Vertiv Avocent HMX 5000/6000 IP KVM Systems are extenders that offer a true matrix solution, allowing critical computer hardware to remain in a secure and temperature-controlled environment away from the user workstation while maintaining desktop resolution. This KVM system allows access to any target computer from any access point with IP network so there is no distance limitation.






Easy to manage and use

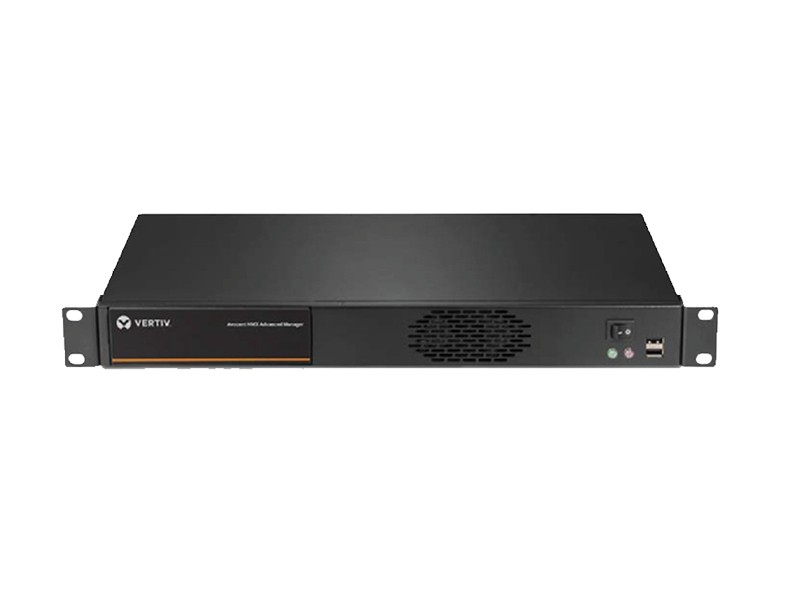

Centralized management from a single console eases administrative and user verification tasks and can be accessed via a web browser. Security is verified via Transport Layer Security (TLS) certification. Hotkey switching allows users to quickly select channels. Video and USB switching is extremely fast to enhance the user experience.



Quality video, USB support

They deliver a real-time, high quality experience that is ideal for demanding and exacting applications. Have desktop experience remotely with no compromise on video quality or control. These KVM systems support high quality DVI-D video as well as a comprehensive list of peripheral devices including CD audio, USB mass storage, keyboard, mouse and other devices.






Broadcast and Video Production

These IP KVM systems facilitate the creating and editing high-quality broadcast and professional video productions by providing uncompromised video quality or control. The HMX 5000/6000 KVMs offer one or two video DVI video connections in resolutions of 1920 x 2000 or 2560 x 1600. They can support a variety of single-link and dual-link video resolutions, convert video to analog and scale in single port increments by simply adding a transmitter or receiver.




Speed, Security, and Control

Ideal for security centers, control rooms, labs, workstation extensions and environments that require high level of redundancy. Centralized management from a single point ensures security with user administration and verification functions. They offer quick access to multiple devices from a single access point, provide fast switching time and include hotkey capabilities. With IP technology, they also allow workstations to be in a remote yet secure climate controlled environment.





Remote Access Management

The Vertiv Avocent HMX IP KVM Systems can benefit environments where the distance between the user and the computer cannot be limited, such as campuses, arenas or stadiums. These high performance KVM systems make it easy for cooperative sharing of computers while updating and multicasting video and key information to any receiver destination. Any screen application that requires rapid updating can easily be managed through the matrix system by authorized, verified users.

HMX5000

Transmitter (TX)

  • HMX5100T
  • HMX5200
  • 1 x DVI-D (5100’s)
  • 1 X VGA, DVI-D, DP (5150)
  • 2 x DVID (5200’s)
  • 1 x USB type B
  • 2 x 3.5mm audio jack 1 X DB9 port Ethernet: 2 x RJ45
  • 1 x SFP cage (MM/SM Fiber or Copper)

Receiver (RX)

  • HMX5100R
  • HMX5200R
  • 1 x DVI-D (5100’s) 2 x DVID (5200’s and 6200’s) 4 x USB type A 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 2 x RJ45 1 x SFP cage (MM/SM Fiber or Copper)

Single/Dual Head

  • 5100 Series - Single
  • 5200 Series - Dual

USB

  • Supports USB 2.0 devices (low, full and high speed).

Video Resolution

  • Up to 1920x1200@60 Hz

Audio

  • Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out

Ethernet

  • 1 GB Ethernet for Matrix switching access
  • 10/100 Ethernet for Setup/Administration

Form Feature

  • Box

Compliance

  • CE FCC
  • UL
  • TAA


HMX6000

Transmitter (TX)

  • HMX6200T
  • HMX6210T(VNC)
  • 1 X VGA, DVI-D
  • 2 x DVID (6200’s)
  • 1 x USB type B
  • 2 x 3.5mm audio jack 1 X DB9 port Ethernet: 2 x RJ45 (VNC access on the 6210T)
  • 1 x SFP cage (MM/SM Fiber or Copper)

Receiver (RX)

  • HMX6200R
  • 1 x DVI-D (5100’s) 2 x DVID (5200’s and 6200’s) 4 x USB type A 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 2 x RJ45 1 x SFP cage (MM/SM Fiber or Copper)

Single/Dual Head

  • All Dual Head

USB

  • Supports USB 2.0 devices (low, full and high speed).
  • Isochronous devices are not supported (e.g. USB audio or video devices) natively. The USB6000 device can be added for Isochronous device.

Video Resolution

  • Up to 2560x1600 @ 60 Hz.

Audio

  • Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out

Ethernet

  • 1 GB Ethernet for Matrix switching access
  • 10/100 Ethernet for Setup/Administration

Form Feature

  • Box

Compliance

  • CE FCC
  • UL
  • TAA


HMX8000

Transmitter (TX)

  • HMX8000T


  • 2 x DisplayPort™,
  • 2 x USB type B
  • 2 x 3.5mm audio jack
  • 1 x DB9 port Ethernet: 2 RJ45
  • 2x SFP+ cages (MM or SM Fiber support)

Receiver (RX)

  • HMX8000R


  • 2x DisplayPort™, 5x USB type A, 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 1 RJ45 2x SFP+ cages (MM or SM Fiber support)

Single/Dual Head

  • All Dual Head

USB

  • 4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. USB device seen as: 7 or 13 port hub

Video Resolution

  • Supports 4K UHD or DCI and refresh rates to 60Hz 4K video over single 10Gb fiber. Add second 10 Gb fiber for dual head

Audio

  • Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out

Ethernet

  • 10 GbE (No 10/100/1000 support)

Form Feature

  • Box

Compliance

  • CE FCC
  • UL
  • TAA


HMX5150​

Transmitter (TX)

  • HMX5150T
  • 1 x (DP or VGA or DVI-D)

Receiver (RX)

  • NA

Single/Dual Head

  • Single Head Only (DP,VGA,DVI-D)

USB

  •   Supports USB2.0 full and low speed (No HS support) USB features: Keyboard, mouse and touch.
  • USB device seen as: 7 or 13 port hub

Video Resolution

  • Up to 1920x1200@60 Hz

Audio

  • Line in/out USB audio 2 channel 16bit 48KHz

Ethernet

  • 1GbE (No 10/100 support)

Form Feature

  • Dongle

Compliance

  • CE
  • FCC
