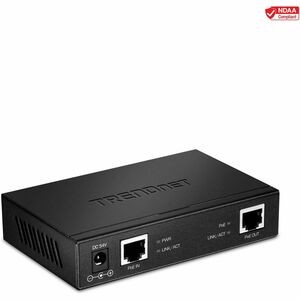

OVERVIEW

TRENDnet's Gigabit PoE+ Extender/Amplifier, model TPE-E110, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The TPE-E110 auto-detects a PoE (15.4W) or PoE+ (30W) connection and extends it for a total distance of up to 200m (656 ft.) from the power sourcing equipment. Daisy chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.) *. The extended range and convenient wall mounting design allows for greater installation flexibility.

PoE Powered

Extends a single PoE+ network connection up to 100m (328 ft.) for a remote PoE (15.4W) or PoE+ (30W) device installation.

Daisy-Chainable

Daisy-chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.).

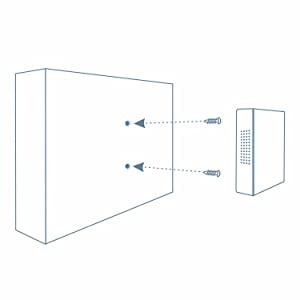

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility.

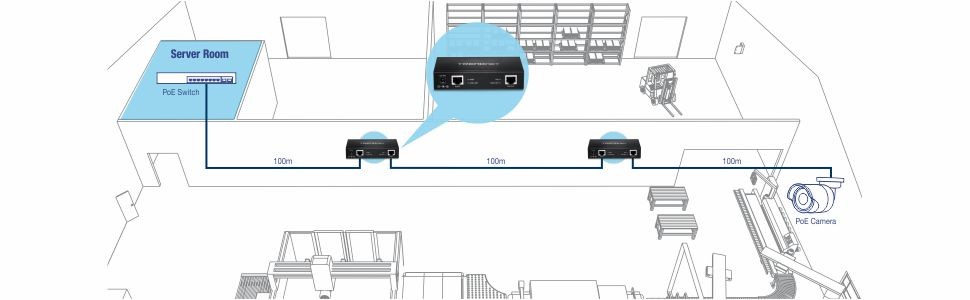

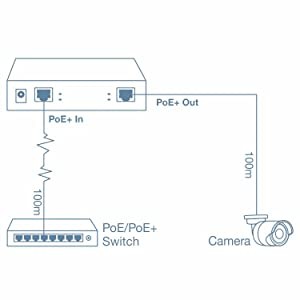

Extension Distance

Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment

PoE/PoE+

Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device

Gigabit Ports

Features one gigabit PoE+ input port and one gigabit PoE+ output port

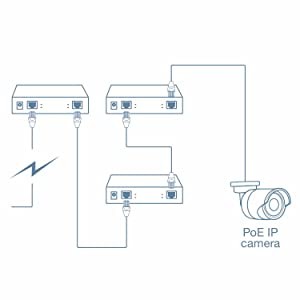

Daisy-Chain

Connect up to 5 units for a PoE+ network extension of up to 600m (1968 ft.)

Gigabit PoE+ Extender/Amplifier

  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.)*
  • PoE/PoE+ powered
  • Wall mountable
  • Durable metal housing
  • NDAA compliant

* Optional power supply required to daisy chain more than the suggested amount of units.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit PoE/PoE+ in port
  • 1 x Gigabit PoE/PoE+ out port
  • 1 x Power port (optional power adapter model name 54VDC0700 sold separately)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • RAM buffer: 128KB
  • MAC Address Table: 2K
  • Jumbo Frame: 9K
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200m (656 ft.)
  • Daisy-chain up to 5 units* without optional power adapter
  • Wall mountable
Daisy Chain
Number of Daisy Chains from PSE Max. PoE output (approx.) Without optional power adapter
  • 1 (up to 100m)
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 2 (up to 200m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 3 (up to 300m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 4 (up to 400m)
  • 30W input: 11.9W
  • 15.4W input: 4W
  • 5 (up to 500m)
  • 30W input: 9.9W
  • 15.4W input: N/A
Number of Daisy Chains from PSE Max. PoE output (approx.) With Optional power adapter
  • 1 (up to 100m)
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 2 (up to 200m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 3 (up to 300m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 4 (up to 400m)
    Add power adapter
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 5 (up to 500m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 6 (up to 600m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 7 (up to 700m)
    Add power adapter
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 8 (up to 800m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 9 (up to 900m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
PoE
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
  • PD auto classification
  • Over current/short circuit protection
Power
  • Powered via PoE/PoE+ switch or injector
  • Max. consumption: 1.6W
Optional Power Adapter (54VDC0700 sold separately)
  • Input: 100 – 240V AC 50/60Hz, 1.2A
  • Output: 54V DC, 0.7A
  • Max. consumption: 32W (with use of power adapter sold separately)
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.77 x 2.95 x 1 in.)
Weight
  • 242g (8.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
PACKAGE CONTENTS
  • TPE-E110
  • Quick Installation Guide


* Optional power supply required to daisy chain more than the suggested number of units.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
