Alarm Output
Alarm output triggered by power failure of primary and / or redundant power (defined by DIP switch)
Redundant Power
Dual redundant power inputs with overload current protection
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 ºC (-40 to 158 ºF)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

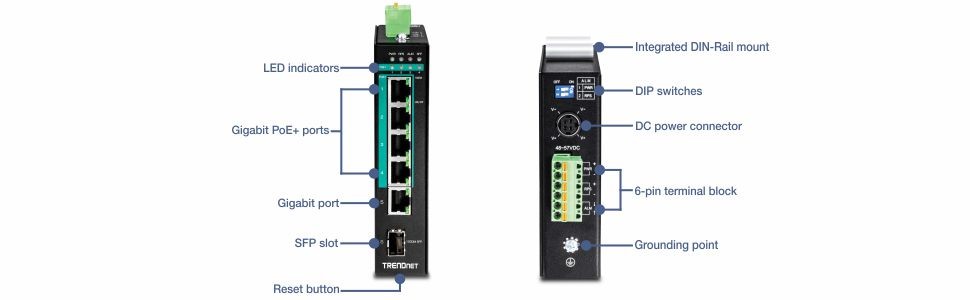

Network Ports
5 x Gigabit Ethernet ports (port 1-4 PoE / PoE+) and 1 x SFP slot
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Switching Capacity
12 Gbps switching capacity
