TRENDnet's VDV and USB Cable Tester, model TC-NT3, is a complete cable tester for network professionals. Accurately tests a variety of voice, data, video, and USB cables. The TC-NT3 identifies the proper, cut, short, and crossover pins connected for cable distances up to 984.3 ft (1,000 ft). Quick test mode issues a pass / fail for large test batches. All components fit into a comfortable travel case.

Cables and ports

Accurately check pin configurations for: T568A / B, CAT3-8, USOC (2, 4, 6 and 8) straight through and reverse, COAX and alarm with included RJ45 to F adapters, USB 3.0 and USB 2.0 cables .

Continuous scan

Continuous scan mode is designed to accommodate testing with wire ends in different locations

Local and remote testing

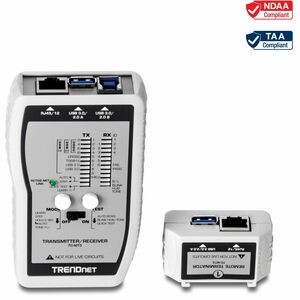

A master unit facilitates loop testing and a detachable remote terminal unit enables cable testing at locations remote from the master unit

Manual scan

Manual scan is very suitable for back loop cable testing

TX / RX Troubleshooting

Displays separate TX and RX results for more efficient troubleshooting

PIN PIN

Identify the proper, cut, short, and crossover pins connected.

Flash switch / hub mode

Designed to confirm which port on a hub / switch is networked to a particular cable, the flashing Hub / Switch mode causes the LED of the connected network port to flash

Cable distance

Tests cable lengths up to 984.3 ft.

VDV & USB Cable Tester

Comprehensive cable tester for network professionals
Tests voice, data, video, and USB cables
Accurately test pin configurations for cable lengths up to 300 meters (1,000 ft.)
Identifies severed, short circuit, and cross connected pins
Quick pass/fail for large test quantities
Blinking Hub/Switch Mode identifies connected hub/switch port
Convenient travel case
NDAA / TAA compliant (U.S. and Canada only)
