AirMapper™ Site Survey
Site surveying and complete Wi-Fi analysis in the palm of your hand – no laptop, no dongle, and no tethered device. The AirMapper app is ideal for quick site surveys of new deployments, change validation and performance verification.

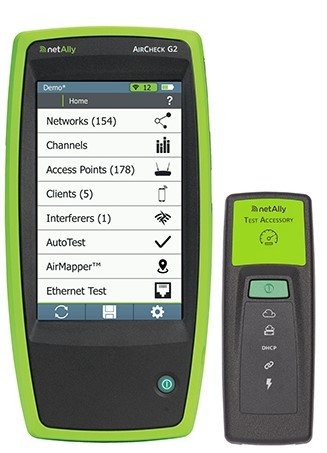

AirCheck G2 Wireless Tester
The AirCheck G2 Wireless Tester’s intuitive user interface provides actionable intelligence, simplifying wireless deployment, troubleshooting, and validation. AirCheck G2 is the most cost-effective hardware-enabled site survey solution and provides network professionals of any skill level with complete and accurate information to validate Wi-Fi deployments and changes, resolve connectivity and performance problems quickly, speed up closure of trouble tickets, and ensure your Wi-Fi network meets end-users’ needs.
"It’s my favorite WiFi diagnostics tool, hands-down. It does so many things in such a small, rugged form factor that it’s impossible not to love. As soon as I first saw it, I knew they had a winner—and I told them so."
---Devin A.
AirCheck G2 Wireless Tester is a powerful troubleshooting tool that can help you identify and resolve many Wi-Fi related problems.
AirCheck G2 Wireless Tester With AirMapper Site Survey Overview
• AirCheck G2 offers a one-button AutoTest function that quickly provides a pass/fail indication of Wi-Fi network quality and identifies common problems
• Faster and easier Wi-Fi site surveys with AirMapperTM Site Survey
• Test the most common Wi-Fi standards (including 802.11ax) with a rugged, handheld, purpose-built wireless tester
• See all networks and devices in your location immediately upon power-up
• View test results, including network availability, connectivity, utilization, throughput, security settings, possible rogues, and interferers
• Automate reporting and enable collaboration with result upload and management via Link-Live Cloud Service
AirCheck G2 - v5.0
•AirMapper Support
•Passive Surveys
•Interactive Calibration
•Upload to Link-Live
•Transfer to AirMagnet Survey
•AP Name Support
•Cisco Meraki
•Mist Systems
•Channel Scan Time Improvements
•Touch Screen Improvements
AutoTest performs the following five essential Wi-Fi tests and a pass/fail indication of the wireless environment as well as identifies common problems — for any level of expertise
- 802.11 Utilization – Reports the top three channels in each band (2.4 GHz and 5 GHz) with the highest airtime utilization
- Non-802.11 Utilization – Reports channels in each band (2.4 GHz and 5 GHz) with the highest non-802.11 airtime utilization
- Co-Channel Interference – Reports channels with the most APs on the same channel that exceed the minimum signal level threshold
- Adjacent Channel Interference – Reports interference on a channel caused by APs are operating on other channels that overlap with that channel
- Network Quality – Verifies coverage, interference, security, and ability to connect to specified networks, along with the availability of critical network services such as DHCP and connectivity to specified network targets
- Rogue Access Points – Reports APs other than your authorized devices. These devices may be compromising network security
iPerf Performance Tests
Getting complaints about slow connections?
Test the throughput speeds of your network by using the AirCheck G2 Wireless Tester with the industry-standard, performance-measuring tool iPerf. Most people, however, don’t have permissions let alone the time to manually configure and set up an open-source, standalone iPerf3 server. Well alleviate this by using the new handheld NetAlly Test Accessory, which can easily act as a mobile plug-and-play iPerf3 server. Operated by either AA batteries or Power over Ethernet (PoE) and available in convenient multipacks, simply plug your pocket-sized NetAlly Test Accessory into any Ethernet port on your network, take your AirCheck G2 Wireless Tester to the area you want to run your network performance test, and in a matter of seconds, you will be able to measure both your upload and download throughput speeds.
Testing, troubleshooting, and verifying performance on your Wi-Fi network has never been easier!
Multiple Language Availability
AirCheck G2 fully supports multiple languages including English, French, German, Spanish, Portuguese, Russian, Japanese, Simplified Chinese, Traditional Chinese and Korean. Multi-language support includes AirCheck G2 user interface, getting-started guide, user manual as well as supporting AirCheck G2 Manager software, help files and user reports.
Link-Live Dashboard
Cloud-Based Results Management
Link-Live Cloud Service

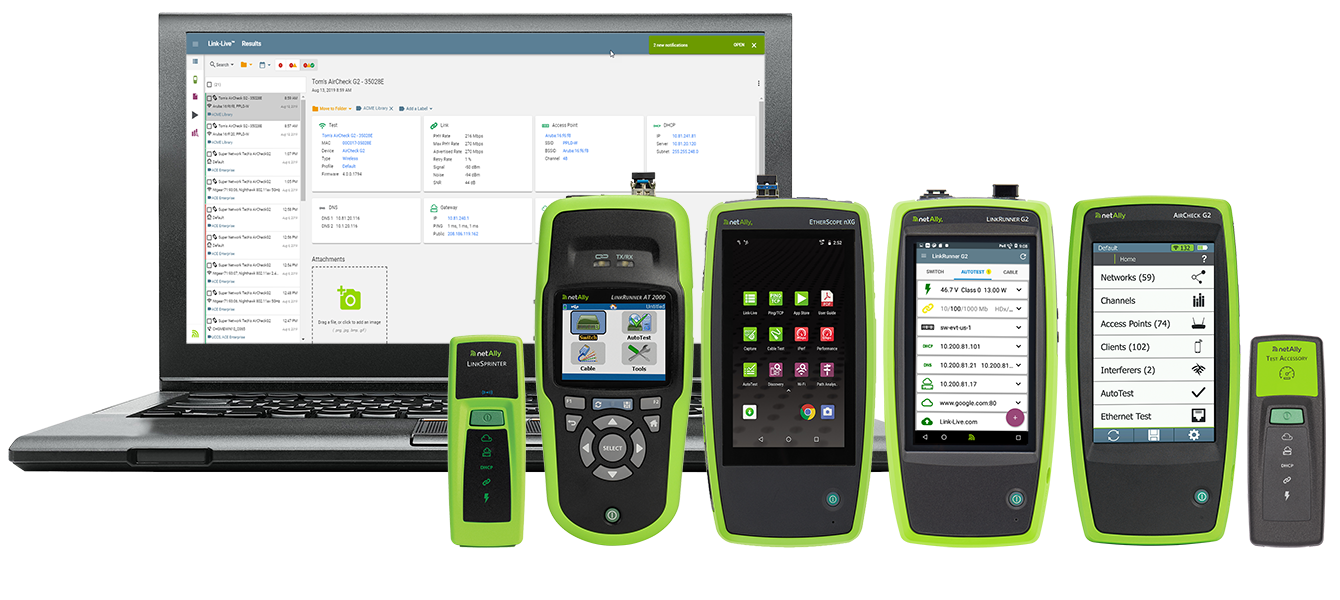

Serving as a centralized test results and device management system, the free Link-Live cloud service transforms team workflows with the ability to quickly and easily log, document, and report test activity from all LinkSprinter, LinkRunner AT, LinkRunner G2, AirCheck G2, and EtherScope nXG hand-held network testers. Once the instrument is connected to the Link-Live Cloud Service, your test results are automatically uploaded to the dashboard for project management and reporting. You have the option of uploading additional files, surveys, screenshots, images, profiles, packet captures, location information, and comments anytime. Also, certain NetAlly instruments with AllyCare Support can receive firmware updates “over the network” from Link- Live as they become available.
AirCheck G2 Manager Software
The AirCheck G2 Manager Software provides the ability to manage AirCheck G2 profiles and view detailed information on saved tests results. The software is free and available for download to any computer from the Link-Live Cloud Service.
What's in the Box?

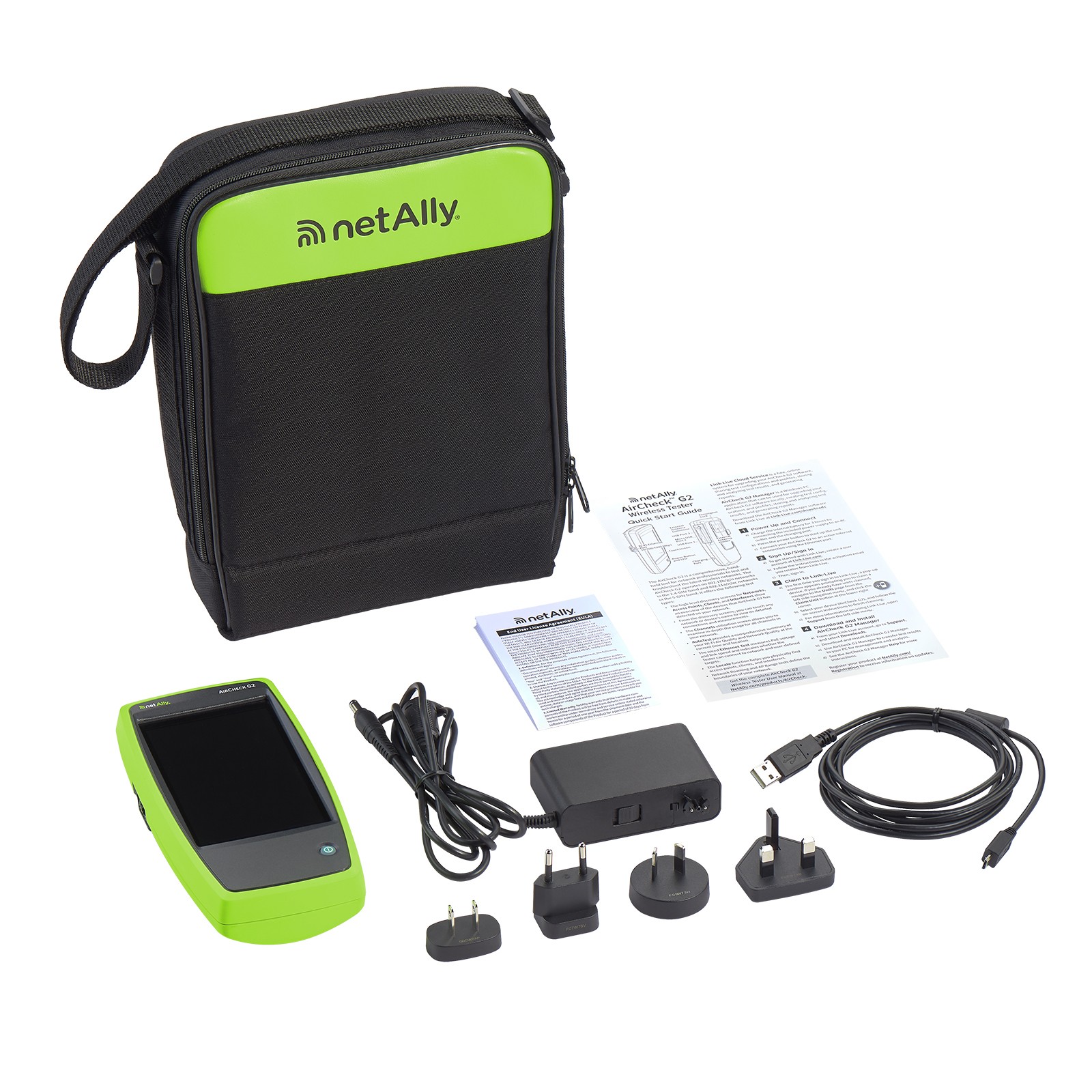

AIRCHECK-G2
- AirCheck G2 Wireless Tester
- Power charger with 4 international adapters
- Small carrying case
- USB cable to connect to a PC
- Quick Start Guide

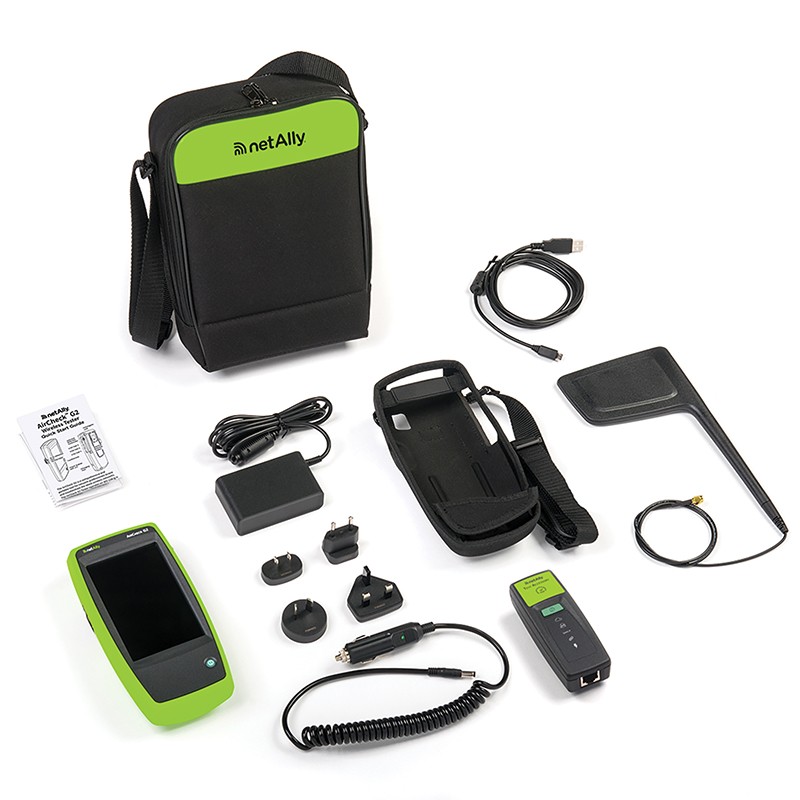

AIRCHECKG2-TA-KT
- AirCheck G2 Wireless Tester
- Test Accessory to act as iPerf server for performance testing
- Power charger with 4 international adapters
- Small carrying case
- USB cable to connect to a PC
- External antenna (RP-SMA connector) for locating devices
- Holster with shoulder strap
- Automobile power charger
- Quick Start Guide
AIRCHECK-G2-KIT
- AirCheck G2 Wireless Tester
- Power charger with 4 international adapters
- Soft carrying case
- USB cable to connect to a PC
- External antenna (RP-SMA connector) for locating devices
- Holster with shoulder strap
- Automobile power charger
- Quick Start Guide

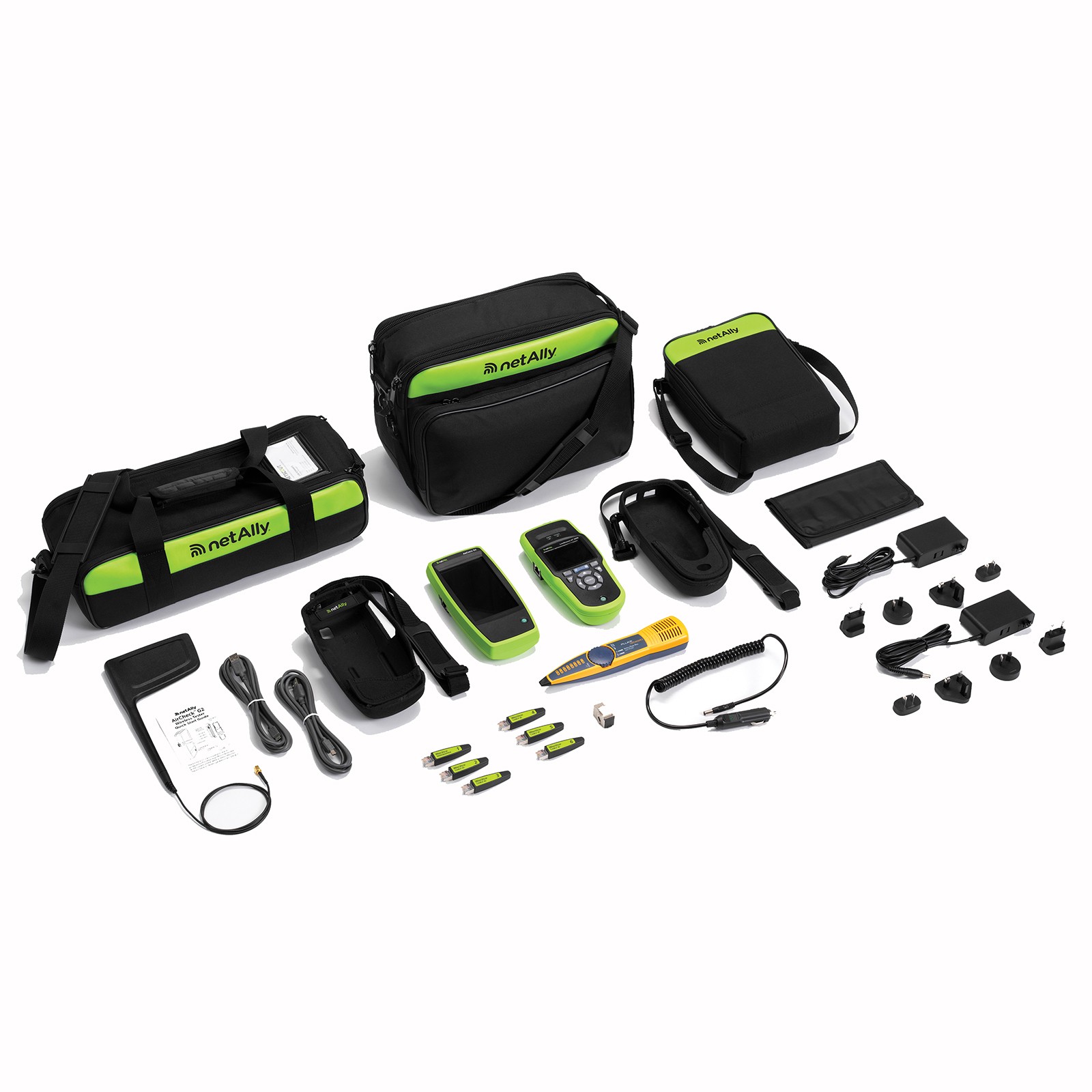

ACKG2-LRAT2000
- AirCheck G2 Wireless Tester
- Power charger with 4 international adapters
- Soft carrying case
- USB cable to connect to a PC
- External antenna (RP-SMA connector) for locating devices
- Holster with shoulder strap
- Automobile power charger
- Quick Start Guide
- LinkRunner AT 2000
- IntelliTone Pro 200 Probe
- WireView Cable IDs #1-6
- Test Accessory soft pouch
- USB cable
- Quick Start Guide
- one 9V alkaline battery
- NetAlly carry case
AllyCare Support
Benefits Summary
• Hardware repair or replacement services included, should the unit malfunction
• Major software version upgrades, minor updates, and firmware updates
• Priority response to technical support calls
• Members-only promotions and programs
• Access to online training modules, searchable knowledge base, online case submission, and much more
Key Features
AllyCare Advantage vs Standard Warranty — While our warranty covers your product from manufacturing defects in hardware for one year, and software for 90 days, there is great value in purchasing AllyCare, available in one- or three-year coverage periods.
Insure Your Investment - Repair/Replacement Guaranteed — If your NetAlly instrument fails or is damaged, we will repair or replace the unit free of charge, including shipping. If you use this service just once, you will have more than recouped your AllyCare investment.
Software Upgrades and Updates — Your NetAlly Handheld Network Testers or AirMagnet software will never be out of date. You will receive access to all available software upgrades, giving you the latest functionality, improving technical efficiency, and troubleshooting. Software upgrades may be released multiple times throughout the year and are only available to AllyCare Members.
Priority Technical Support — AllyCare includes priority access to our world-class Technical Assistance Center (TAC). Our highly-trained technical experts are stationed around the globe, ready to answer your complex troubleshooting questions.
Accessory Replacement - Some accessory parts are essential to your NetAlly handheld network tester or AirMagnet product.
Ensure that you are getting the most out of your
AirCheck G2 Wireless Tester with AllyCare Support Services.
