Effective Solution, Virtual Media Support and Greater Distance

Traditional, thick KVM cables are a thing of the past. By using cost-effective Cat5e/6 cabling, the B078-101-USB2 frees up space in your server cabinet and allows for increased ventilation, longer cable runs and greater savings. This server interface module is needed to connect a USB server to a compatible Tripp Lite KVM switch. Note: The B078-101-USB2 is not compatible with all NetCommander Cat5 IP KVM switches. Contact Tripp Lite Technical Support for information on your model.

The B072-101-USB2 supports virtual media data transfer rates up to 12Mbps.

Using Cat5e/6 cabling allows for your server to be located up to 100 feet away from the KVM switch that controls it. By eliminating bulkier KVM cables, the B078-101-USB2 also allows for cabling to run through conduits and other tight spaces, guaranteeing maximum flexibility when setting up your KVM application.

Plug-and-Play, Compact Design and Three-Year Product Warranty

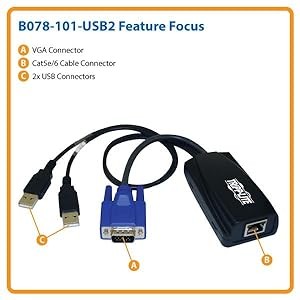

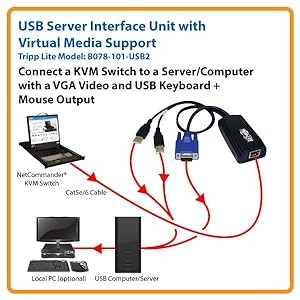

With the B078-101-USB2, there is no software or external power needed. Simply plug the USB and HD15 connectors into the server to be controlled, run the Cat5e/6 cabling to your KVM and you’re ready to go. The unit connects a server or computer with a HD15 connector for video and USB type connectors for mouse and keyboard control to a Tripp Lite B070- or B072-Series KVM switch with Cat5e/6 (RJ45) connectors.

The B078-101-USB2’s compact, lightweight design allows for flexibility when connecting it to a server or computer. The unit’s form factor enables it to fit in tight spaces and frees up space where traditional KVM cabling might limit ventilation and accessibility.

The B078-101-USB2 is backed by a three-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is one of the leading manufacturers of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
