OVERVIEW

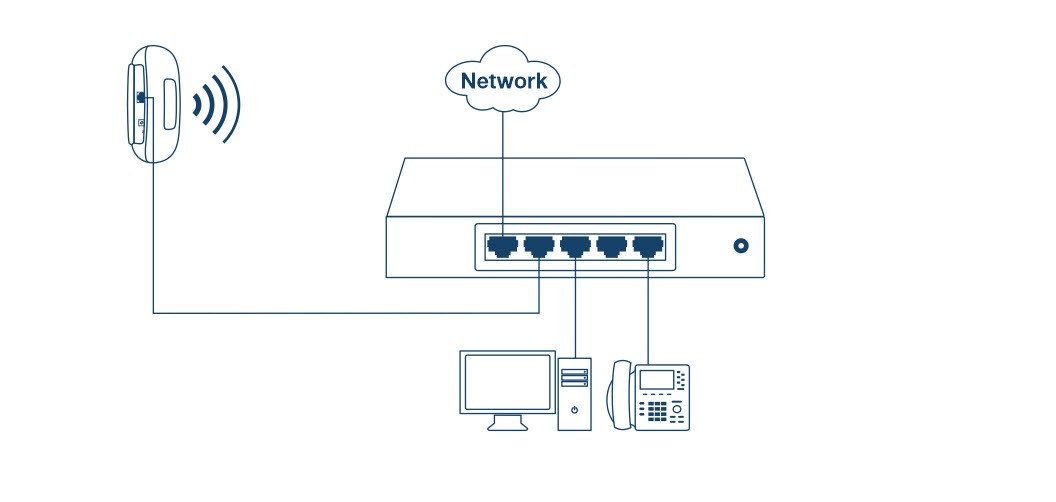

TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG50g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. It supports both PoE and PoE+ devices with a 31W PoE power budget. Easily install this compact sturdy metal switch for reliable high-speed PoE networking.

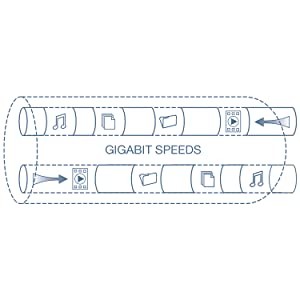

Gigabit Ethernet

Five gigabit ports provide a 10Gbps switching capacity to support edge network installations

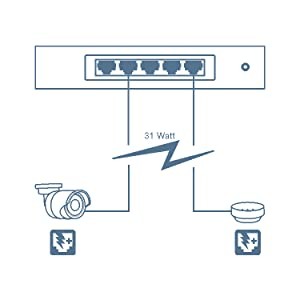

PoE Power

A 31W PoE power budget supplies up to four Power over Ethernet devices, such as access points and IP cameras.

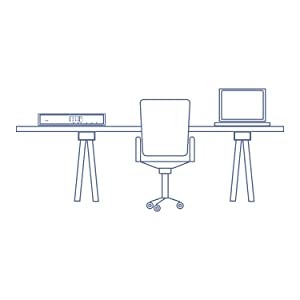

Compact Design

The compact and lightweight housing is well-suited for desktop installations, and the fanless design is perfect for quiet environments.

PoE

Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 31W PoE power budget

Ports

Four gigabit PoE+ ports and one gigabit port

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

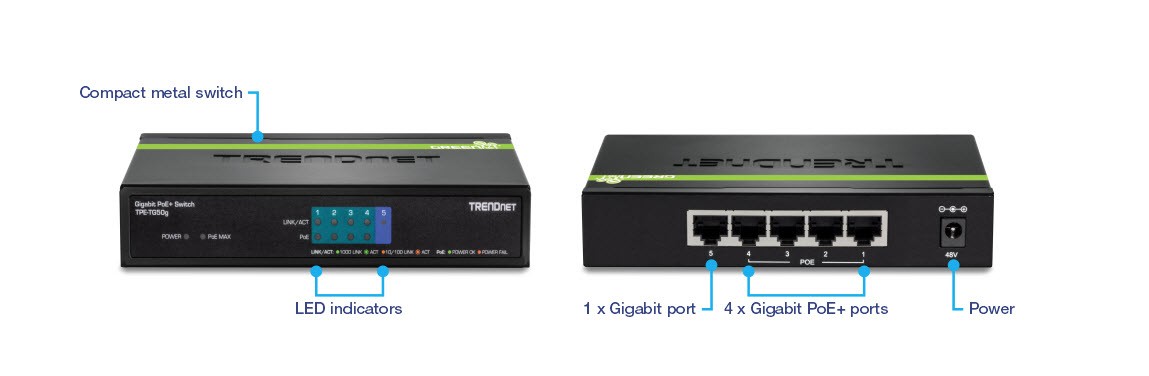

Device Interface	4 x Gigabit PoE/PoE+ ports 1 x Gigabit port LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Packet Buffer: 1Mb Switch Fabric: 10Gbps MAC Address Table: 2K entries Forwarding rate: 7.44Mpps (64-byte packet size) Jumbo Frame: 16K
Power	Input: 110 -240 V AC, 50/60 Hz, 1.2A Output: 54V DC, 0.7A Max. consumption: 37.5W
PoE	PoE budget: 31W PoE Mode A: Pins 1, 2, 3, and 6 for power
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	148 x 95 x 26mm (5.8 x 3.7 x 1 in.)
Weight	371g (13 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG50g
Quick Installation Guide
Power adapter (54V DC, 0.7A)
