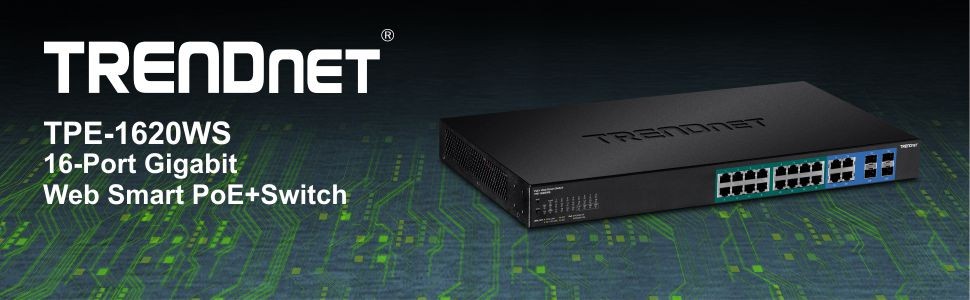

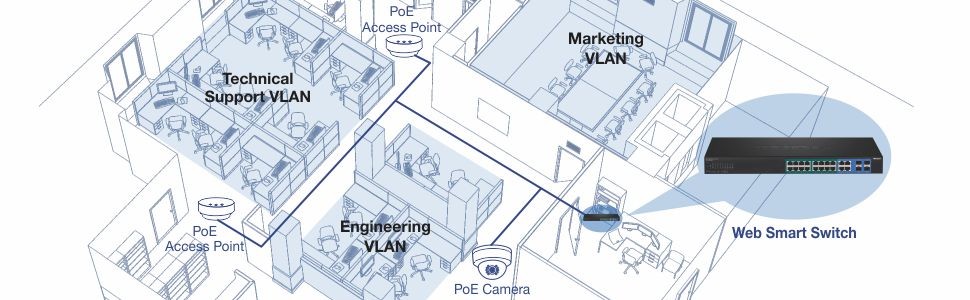

TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switches also feature SFP slots to support long-distance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart PoE+ Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.Easily manage and configure TRENDnet’s Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet’s reliable cloud service.

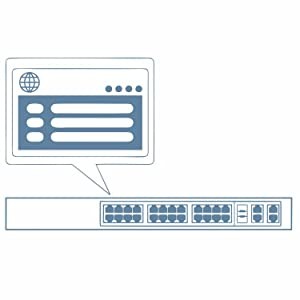

Web Smart Administration

It provides easy-to-use web-based GUI management to reduce the complexity of switch configuration and offers a combination of SMB management features to facilitate deployment.

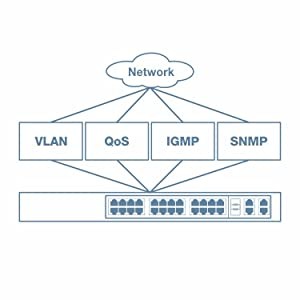

Integration flexibility

Managed features include access control lists, VLANs, IGMP snooping, QoS, RMON, SNMP trap, and syslog for flexible network integration and monitoring.

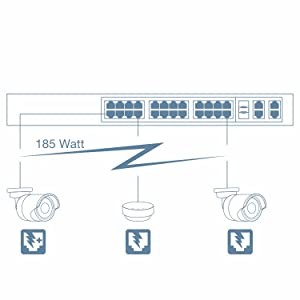

PoE power

A PoE power budget of 185W supplies power to PoE devices.

Hardware design

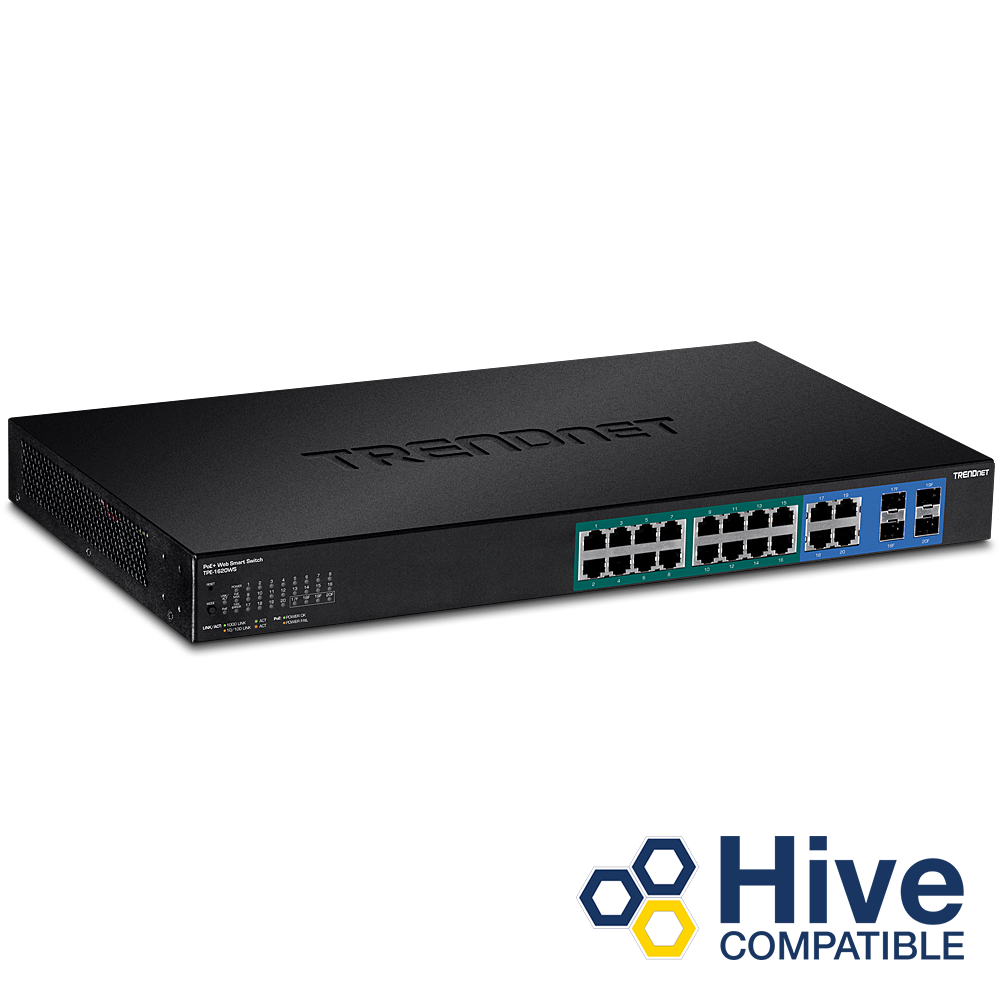

It has 16 gigabit PoE + ports, 4 shared gigabit ports (RJ-45 or SFP), a 40 Gbps switching capacity, an integrated power supply, and includes rack-mount brackets.

PoE power

Supplies up to 30W of PoE + power per port with a total power budget of 185W.

Ready for IPv6

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic management

A wide range of network configurations support: 802.3ad Link Aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loop Detection, GVRP, 802.1p Class of Service (CoS), Width Management port band and QoS queue scheduling.

TRENDnet Hive Cloud Manager

16 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45 or SFP)
185W PoE power budget
Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Remote cloud management with TRENDnet Hive (Additional fee applies)
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private, Multicast, and Voice VLAN support
Smart Fan
40Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az
Device Interface	16 x Gigabit PoE+ ports 4 x shared Gigabit ports (RJ-45/SFP) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 40Gbps RAM buffer: 512KB MAC Address Table: 8K entries Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 29.8Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Hive Cloud Management	Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser Multi-device management Provisioning through scheduled batch firmware or configuration updates for multiple switches Event/hardware network monitoring (CPU/memory utilization) Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only) Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	IP FORWARD TABLE MIB RFC 1354 RMON MIB RFC 1271 IPV4 MIB RFC 1213 IPV6 MIB RFC 2465 GVRP MIB IEEE 802.1Q-VLAN LA MIB IEEE 802.3ad LLDP MIB IEEE 802.1AB IGMP SNOOPING MIB RFC 2933 MLD SNOOPING MIB RFC 3019 PRIVATE VLAN MIB IEEE 802.1Q DHCPSNOOP MIB RFC 2026 QOS MIB RFC 4323 SNMP MIB RFC 3415 STP MIB RFC 4318 PNAC MIB IEEE 802.1x VLAN MIB IEEE 802.1q DNS MIB RFC 1611 ACL MIB BANDWIDTH CTRL MIB LBD MIB MIRROR MIB IPV6 NEIGHBOR MIB SNTP MIB STORM CTRL MIB STATISTICS MIB Tool MIB VOICE VLAN MIB DOS MIB
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one
Encryption	802.1X Port-Based Network Access Control , RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows ^® 10, 8.1, 8, 7, Vista, XP, Windows ^® 2003/2008 Server
Special Features	PoE+ IPv6 802.3az power saving Rack mountable
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 226W
PoE	Power Budget: 185W 802.3at: Up to 30W per port PoE Mode A: Pins 1, 2, 3, and 6 for power PoE auto/manual classification PoE port priority/power scheduling PD alive check
Fan/Acoustics	Quantity: 2 Noise Level: 52 dB(A) (max.)
MTBF	465,862 hours
Operating Temperature	-5 – 50°C (23 - 122°F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 250 x 44mm (17.3 x 9.8 x 1.74 in.) Rack mountable 1U height
Weight	3.66kg (8 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-1620WS
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power cord (1.8m/6 ft.)
Rack mount kit
