OVERVIEW

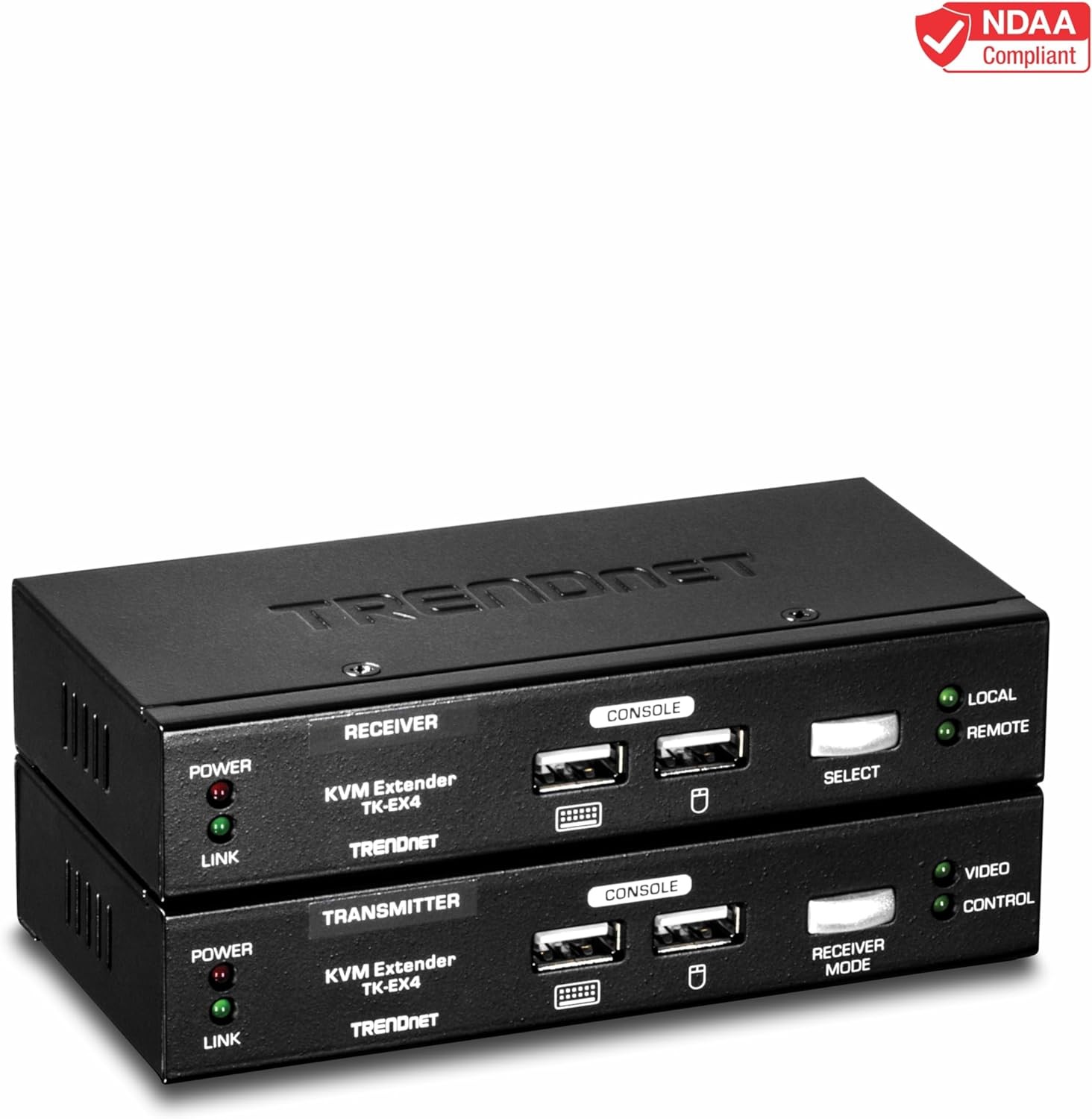

TRENDnet's USB VGA KVM Extension Kit, model TK-EX4, extends keyboard, video, and mouse controls for distances of up to 100m (328 ft.). Remotely access your server in the networking room by extending KVM controls to your office. Connect the KVM extender to a TRENDnet KVM switch to conveniently control multiple servers from a remote location.

No software installation is required. Simply connect devices to the KVM extender with the included cables for full KVM controls. Input hot-key commands on the KVM extender control local and remote console stations. The remote console unit (receiver unit) supports PS/2 keyboard and mouse devices, and monitors with a VGA port. The local console unit (transmitter unit) supports USB mouse and keyboard, and VGA connections.

OSD


Manage KVM switch access with the convenient on-screen display.

KVM Extension


Extend Keyboard, Video, and Mouse controls for distances of up to 100m (328 ft.).

No CD Installation


Simply connect the transmitter and receiver together over cat5e or better cabling for full KVM management.

No CD Installation

Simply connect the transmitter and receiver for full KVM management

Compact

The compact form factors reduce clutter

Hotkeys

Access the remote server or the OSD with hotkey controls

Console Override

Console override blocks KVM functionality at the other terminal when in use

EDID emulation

Adopt monitor resolution settings from the local or remote monitor

Access

Create password-protected OSD access

Automatic logout

For added security, create an OSD timeout after which it automatically logs out

View Only

Allow only long-distance viewing


  • Extend KVM controls for distances of up to 100m (328 ft.)
  • Supports resolutions up to 1920 x 1200
  • Connect to a TRENDnet KVM switch to manage multiple servers
  • Convenient OSD management controls
  • Features hot-key commands
  • NDAA compliant

OVERVIEW

Transmitter Console interface
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitor: VGA
  • Firmware upgrade port: USB Type B
  • Extension: Ethernet port
  • LED indicators
Receiver Console interface
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitor: VGA
  • Firmware upgrade port: USB Type B
  • Extension: Ethernet port
  • LED Indicators
Computer Connections
  • Transmitter: VGA and USB with PS/2
  • Receiver: VGA and USB with PS/2
Monitor Resolution
  • Up to 1920 x 1200
Switching Notification
  • Sound
Switching Controls
  • Transmitter: Block access, viewing access only and full control
  • Receiver: Local or remote view
  • OSD: Password protection, auto OSD logout, four hotkeys options, OSD timeout, console delay function and EDID emulation
Operating Temperature
  • 0°– 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.2A
  • Output: 5V DC, 2A
  • Max. consumption:
  • Transmitter: 2.7W
  • Receiver: 4.7W
Dimensions
  • Transmitter/ receiver: 130 x 65 x 25 mm (5.1 x 2.6 x 1.0 in.)
Weight
  • Transmitter: 285g (10.1 oz.)
  • Receiver: 290g (10.2 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2-year
PACKAGE CONTENTS
  • Transmitter
  • Receiver
  • Quick Installation Guide
  • 2 sets of 1.2 m (4 ft.) 3-in-1 VGA cables
  • 1 set of 1.2 m (4 ft.) USB Type A to B cable
  • 2 Power Adapters (5V DC, 2A)
  • 2 USB to PS2 adapter
