Affordable Full HD,

Low-Bandwidth

AV-Over-IP

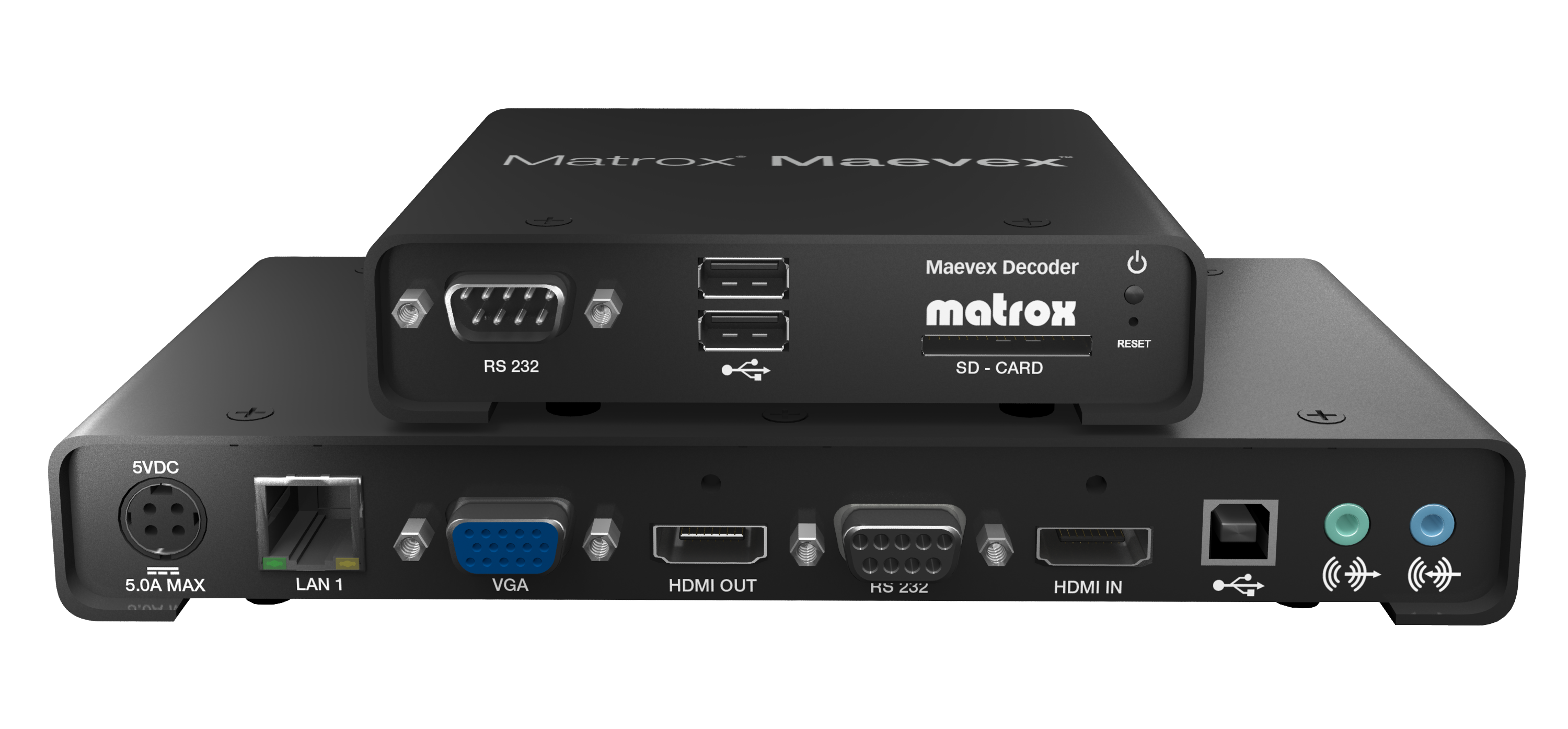

Matrox Maevex 5150 Encoder/Decoder Bundle

The Maevex 5100 Series encoders and decoders can stream or record up to 1080p60 video and audio over a standard IP network at user-defined low bitrates for excellent quality and minimal network bandwidth consumption. These cost-effective single-channel Full HD encoders and decoders use the RTSP streaming protocol and the H.264 video compression standard. The Maevex 5100 Series encoders can stream to Maevex decoders or any device or PC that supports H.264 and RTSP. It can also record to a shared network or NAS drive. Highly energy-efficient, fanless and backed with industry-leading reliability, the Maevex 5100 Series is sure to meet your encoding/decoding needs.

Encoding

  • Encode/record up to 1920x1080p60 and 1920x1200p60 video and audio
  • H.264 compression for high-quality, low-bandwidth AV-over-IP
  • Support for wide-screen and standard aspect ratios and many resolutions
  • Scale streams before distribution for lower bandwidth consumption
  • HDMI or analog audio support
  • Open encoding allows for third-party software decode (e.g. VLC)

Recording

  • Record up to 1920x1080p60 and 1920x1200p60 to NAS or shared network drive
  • Control frequency and duration of recording
  • Schedule the start time and date of recording sessions
  • Recorded user-defined file name includes timestamp for easy file management

Failsafe

  • Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
  • Programmable time delay before failsafe activates
  • Resumes last streaming activity upon power return

Other benefits

  • Daisychain decoders and extend network via integrated network switch
  • Failure resilience—power, network, and device auto-recovery features
  • Reliable, solid-state, energy-efficient design
  • Local real-time pass-through and confidence preview on encoder
  • PowerStream-controlled user access from secured PC
  • Detailed LED indicators for easy and effective troubleshooting
  • Customizable bitmap for encoder/decoder splash screen
  • Rackmountable with optional rackmount tray and accessories

Software

Complete reach and control

Discover devices, manage content, access hardware, and monitor all streams and recordings from any location on the network via the robust Maevex PowerStream Plus software. Included with the purchase of Maevex hardware, PowerStream Plus renders both generations of Maevex products entirely monitorable, configurable, manageable, and updateable via an intuitive and easy-to-use application. PowerStream Plus can be installed on any network-connected computer. Easily tailor operations by integrating PowerStream Plus features into existing applications or create new software applications with the PowerStream Plus SDK—available for both Windows® and Linux®. A REST API is also available for more flexible and portable software development and more direct access to Maevex devices.

Matrox PowerStream Plus

  • Remotely manage the entire Maevex network from one application
  • Compatible with Maevex 5100 and 6100 Series
  • Fine-tune encode/decode parameters and adjust bitrates
  • Conveniently access IP address, bitrate, and other vitals
  • Scale and crop content to fit different outputs
  • Included with Maevex 5100 (free download)
