OVERVIEW

The 8-Port Gigabit GREENnet Switch, model TEG-S82g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal switch for reliable high speed network connectivity.

An illustration of a network switch with eight ports labeled ‘Flex-Power’. To the right, there is a gradient blue arrow pointing to the right, indicating variable power distances. The distances are marked at three points along the arrow: 20m, 60m, and 100m.

Energy Savings

Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization.

Illustration of a network cable labeled GIGABIT SPEEDS with icons representing music, video, data transfer moving through the network.

Gigabit Speeds

8 gigabit ports provide high-speed network connections to devices and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Illustration of a network switch with eight Ethernet ports on the front panel. The device is depicted as a rectangular box with a width measurement of 15 centimeters indicated below it. The switch has a power indicator on the right side.

Compact Design

With a compact and lightweight metal housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

Easy Setup

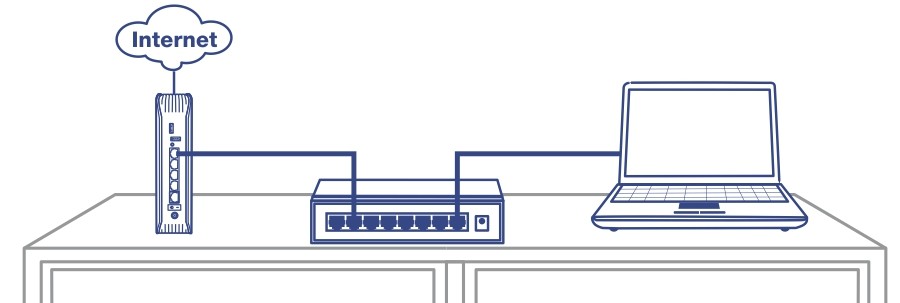

Simply power up the switch and plug in connected devices

Ports

8 x Gigabit Ethernet ports

Switching Capacity

16Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Compact and lightweight metal housing

LED Indicators

LEDs convey power, link, and activity

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM buffer: 192KB
  • Switch fabric: 16Gbps
  • MAC address table: 4K
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo frame: 9KB
Special Features
  • GREENnet energy saving technology
  • Metal enclosure
  • Wall Mountable
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.15A
  • Output: 5V DC, 1A external power adapter
  • Max. consumption: 4W
Fan/Acoustics
  • Fanless design
MTBF
  • 2,082,116 Hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 97 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
  • 365g (12.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S82g
  • Quick Installation Guide
  • Power adapter (5V DC, 1A)


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
