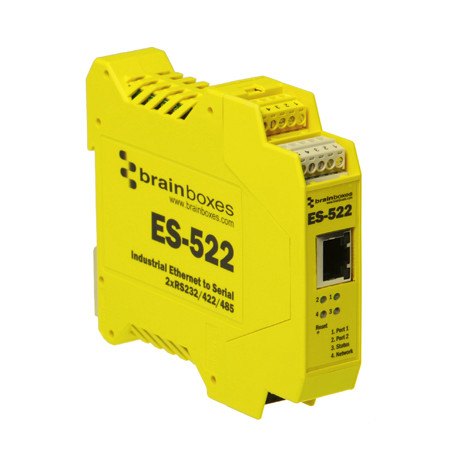

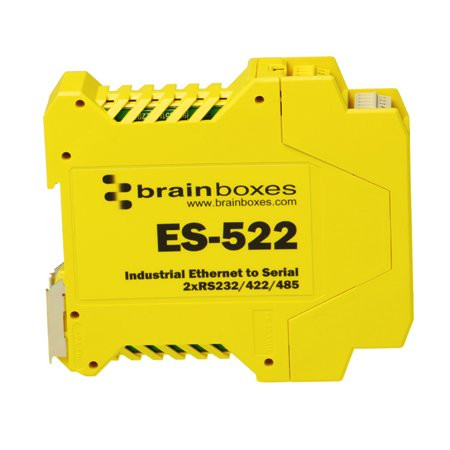

ES-522 ETHERNET TO SERIAL DEVICE SERVER
Ethernet Industrial 2xRS232/422/485


  • 2 Serial port Selectable as RS232/422/485
  • Max baud rate 1 MegaBaud, any Custom Baud Rate
  • 10/100Base TX Ethernet port
  • -30oC to +80oC Temperature range



  • 2 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
  • Data rate from 110 to 921,600 baud (1 MegaBaud). Removable, colour-coded, number terminal blocks
  • Install Virtual Com ports in Windows, tunnel over ethernet between 2 devices, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
  • Serial Port Tunnelling allows serial cable replacement over any distance, no software required
  • -40°C to +80°C/-40ºF to +176ºF Temperature range

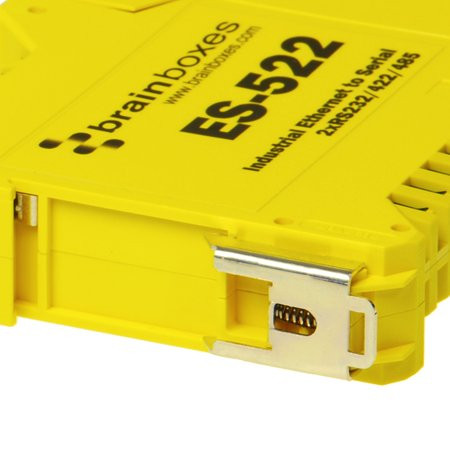

  • Robust, Slim Design, Integrated DIN rail mount

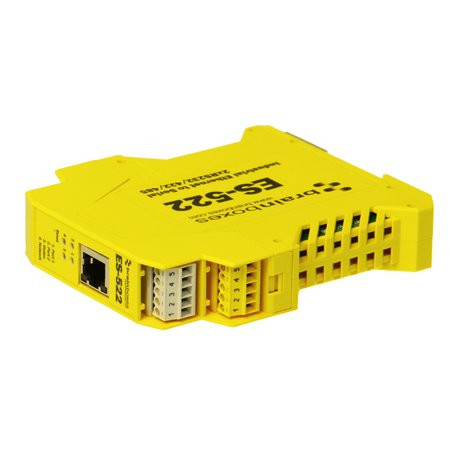

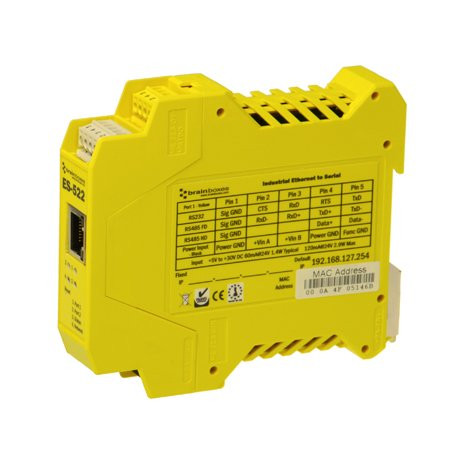

Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.

Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
