Reliable Rackmount Power Distribution with Digital Load Meter and High Current Input
Tripp Lite’s PDUMH20HV Metered Power Distribution Unit (PDU) is an efficient, cost-effective way to reliably distribute and monitor power in high-voltage IT or industrial environments. The PDUMH20HV provides 208/240V or 230V power service to 10 outlets, plus a digital meter displays continuous power consumption so IT personnel can monitor the PDU’s load on-site. The PDUMH20HV features an all-metal reversible housing and a switchless design to prevent accidental shutoff. It is suitable for 1U rackmount installation as well as wall-mount, workbench, under-counter and similar installations. The PDUMH20HV is TAA-Compliant for GSA Schedule purchases. The PDUMH20HV comes with a two-year warranty and green, RoHS-compliant design.
Optimized for Demanding, High-Voltage Applications

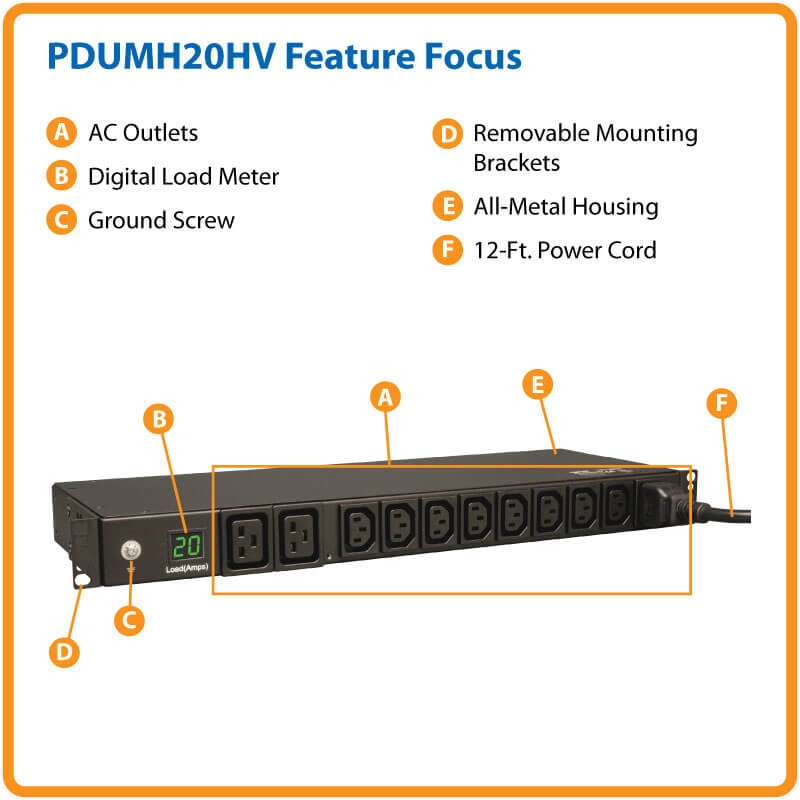

The PDUMH20HV’s unfiltered electrical pass-through makes it ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets and more. It provides 10 outlets (eight C13 and two C19) and a 12-feet (3.7 meters) cord with a C20 input, plus a locking L6-20P adapter for NEMA connections. Other features include a rugged all-metal case, high-quality outlets, 20A circuit breaker and switchless design to prevent accidental shutoff. A TVSS grounding lug provides added grounding security and safety.
Digital Current Meter and Switchless Design
A built-in digital LED meter displays the total connected equipment load, enabling IT personnel to monitor real-time power conditions. This reduces the risk of a costly overload of the PDU or power supply circuits and helps users ensure a proper load balance in complex redundant power applications. The PDUMH20HV’s switchless design prevents accidental shutoff and safeguards against downtime due to human error.
High-Current Input and Worldwide Compatibility
The PDUMH20HV features 208/240V and 230V input and output power capacity, making it ideal for a wide range of IT applications used worldwide.
Versatile Installation Options and Premium Build Quality

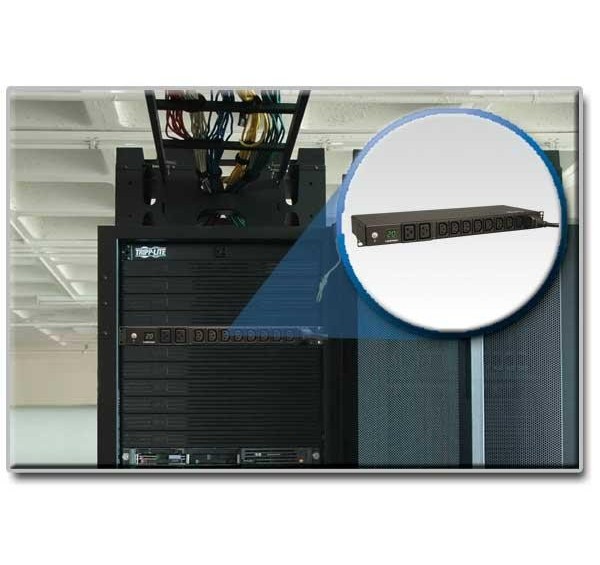

The PDUMH20HV is easy to integrate with a wide range of data center and network applications. Included mounting flanges support 2- and 4-post rack installations as well as wall-mount, workbench, under-counter and similar installations. Users will take comfort knowing that the PDUMH20HV’s rugged all-metal case, premium components, and high-quality outlets and plugs are designed to provide many years of reliable service under the most taxing environments.
Two-Year Product Warranty and Environmentally Responsible Design
The PDUMH20HV is backed by a two-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications. The PDUMH20HV is also TAA-Compliant for GSA scheduling purposes.
