Overview

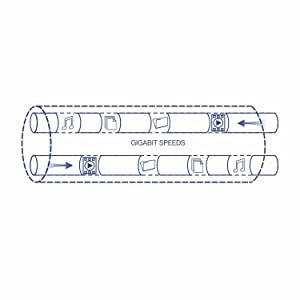

Gigabit Speeds

16 gigabit ports provide high-speed network connections to devices and a 32 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks

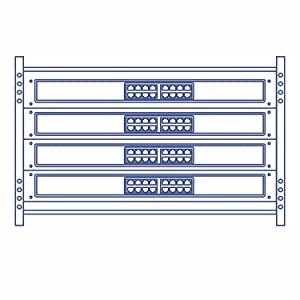

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations. Its fanless design is perfect for quiet environments that require silent operation

Energy Savings

Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization

Plug and Play

Simply power up the switch and plug in devices

Hardware Design

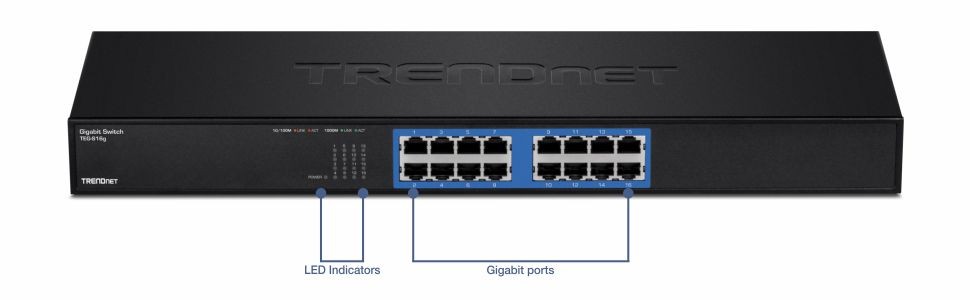

Provides 16 gigabit ports and includes rackmount brackets

Switching Capacity

32 Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

16-Port Gigabit GREENnet Switch

  • GREENnet technology reduces power consumption by up to 70%*
  • 16 x Gigabit RJ-45 ports
  • Sturdy rackmount metal switch with built-in power supply
  • 32 Gbps forwarding capacity
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

SPECIFICATIONS

Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 and 5e up to 100 m
  • Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
  • Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
  • Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
  • Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
  • CSMA / CD, Star
Power Consumption
  • 10.1 Watts (max.)
Switch Fabric
  • 32 Gbps
Interface
  • 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
  • 512 KB
Filtering Table
  • 8 K entries
Jumbo Frame Support
  • Up to 10 KB
Diagnostic LED
  • Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
  • 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
  • 440 x 140 x 44 mm (17.3 x 5.5 x 1.75 in.)
Weight
  • 1.8 kg (3.8 lbs.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S16g
  • Quick Installation Guide
  • Power cord (1.8 m / 6 ft.)
  • Rackmount hardware


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
