Boost your Bass

Ramp up the bass with the Boss Audio Riot R1100M Class A/B Monoblock Amplifier. With 1100 Watts Max Power and MOSFET power supply, this amplifier takes your vehicle's audio system to the next level. Customize the sound with Variable Low Pass Crossover, Bass Boost and Remote Subwoofer Control. Amplifiers in the Riot Series are perfect for first time car audio buyers looking to add bass, enhanced sound and performance to their system at an affordable price.

Class A/B Monoblock, MOSFET Power Supply
1100 Watts @2-Ohms Max Power
825 Watts RMS @2-Ohms
High and Low Level Inputs
Variable Low Pass Crossover, Bass Boost
Remote Subwoofer Control

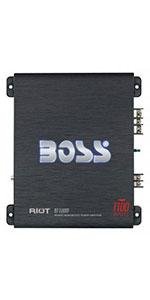

The R1100M
comes with

Remote Subwoofer Control with Cable
High Level Input Plug
Owner's Manual
Warranty Card

MOSFET

Metal Oxide Semiconductor Field-Effect Transistors quickly switch from full to non-conduction for high-efficiency output.

Class A/B

Our Class-A/B amplifiers feature specific linear circuitry that increases sound quality and power output while reducing distortion and improving efficiency.

2 Ohm Stable

2-Ohm stable comfortably powers speakers or subwoofers when in use at 2-Ohms, resulting in more power and volume.

High and Low Level Inputs

High-level inputs accept speaker output signals and low-level inputs accept pre-amp output signals to allow for the addition of amps and processors to standard factory or aftermarket source units.

Variable Low Pass Filter

Variable low-pass filter gives you control over the frequencies that pass through to the subwoofer.

Switchable Bass Boost

Switchable Bass Boost allows you to boost the low bass +18db.

Subwoofer Level Control

A wired remote lets you easily control the subwoofer level for customized output and superior sound.

Short Protection

Automatic shut-off protects the amplifier if it gets too hot or if speakers fail causing a short.

Variable Input Control

The Variable Input Control allows the amplifier input to match the output signal from the head unit to achieve optimum performance when adjusted properly.

Illuminated BOSS Logo

The BOSS Logo is backlit in a cool blue on this Riot Series Amplifier.

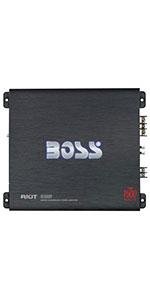

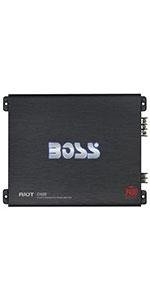

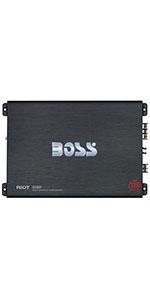

	R3400D	R2400D	R2000M	R1600M	R1100M
Channels	1	1	1	1	1
Strappable	Yes	Yes	No	No	No
Max Power	3400W	2400W	2000W	1600W	1100W
RMS Power	2550W x 1 @1-Ohm	1800W x 1 @1-Ohm	1500W x 1 @2-Ohms	1200W x 1 @2-Ohms	825W x 1 @2-Ohms
Low Pass Filter	Variable	Variable	Variable	Variable	Variable
Bass Boost	Yes	Yes	Yes	Yes	Yes
Remote Subwoofer Control	Yes	Yes	Yes	Yes	Yes
Subsonic Filter	Yes	Yes	No	No	No
Inputs	Low Level	Low Level	High and Low Level	High and Low Level	High and Low Level
Dimensions	L13.5" x W10.4375" x H2.25"	L11.5" x W10.4375" x H2.25"	L15.5" x W10.4375" x H2.25"	L12.34375" x W10.4375" x H2.25"	L9.125" x W10.4375" x H2.25"
