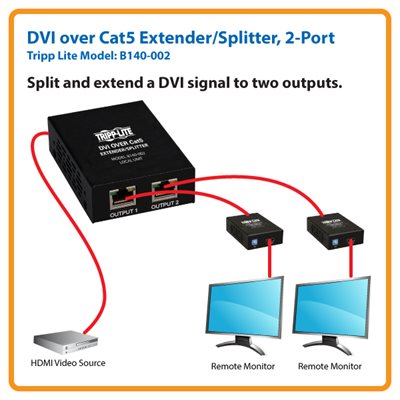

DVI over Cat5/6 Transmitter Extends and Splits a Single Video Signal to Two Monitors

Tripp Lite’s B140-002 DVI over Cat5 Extender allows you to split a single DVI signal and extend it to two monitors up to 200 ft. away using inexpensive Cat5/6 cabling (Tripp Lite B140-Series active or passive remote units required, sold separately). The B140-002 is ideal for digital signage applications in schools, churches, retail, point-of-sale displays, trade show presentations, business conference rooms and any other venue that requires sending video to more than one DVI-enabled digital video component over a long distance. With no software or drivers to install, the B140-002 provides total plug-and-play convenience. For peace of mind, the B140-002 comes backed by a one-year warranty and is TAA-compliant for GSA Schedule purchases.

Extend a DVI Signal up to 200 ft. Away

This Tripp Lite 2-Port DVI over Cat5/6 extender/splitter allows extension of a DVI signal beyond the 15 ft. distance limitation. The B140-002 can extend a 1024 x 768 (60Hz) resolution up to 200 ft. and a 1920 x 1080 (60Hz) resolution up to 150 ft. when used with an active remote unit (Tripp Lite B140-1A0 or B140-1A0-WP). When used with a passive remote unit (Tripp Lite B140-1P0 or B140-1P0-WP-1), it can extend a 1024 x 768 (60Hz) resolution up to 100 ft. and a 1920 x 1080 (60Hz) resolution up to 50 ft. For maximum distance performance, always use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).

TAA-Compliant for GSA Schedule Purchases

The B140-002 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


One-Year Warranty and Environmentally Responsible Design

The B140-002 comes backed by a one-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.

Typical Applications

• Digital signage applications in schools, churches, retail, point-of-sale displays, trade show presentations, business conference rooms and any other application that requires sending video to more than one DVI-enabled digital video component
• Extends a video signal to a DVI-enabled monitor at distances up to 200 ft. away

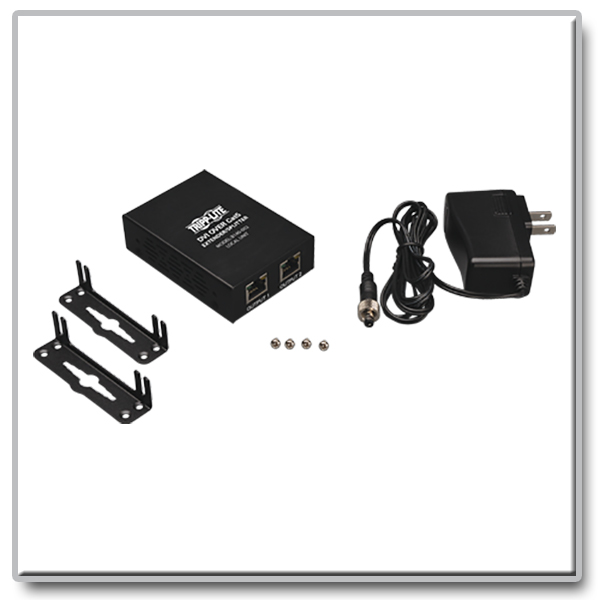

What’s in the Box

• DVI Over Cat5 Extender/Splitter Local (Transmitter) Unit, 2-Port
• Mounting Hardware
• External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner’s Manual
