The 16-Port Gigabit GREENnet Desktop Switch, model TEG-S16Dg, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Illustration of a network cable labeled GIGABIT SPEEDS with icons representing music, video, data transfer moving through the network.

Gigabit Speeds

16 gigabit ports provide high-speed network connections to devices and a 32 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Line drawing of a modern workspace with a desk, office chair, router, and laptop.

Desktop Design

With a compact and sturdy metal housing design this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

An illustration of a network switch with multiple ports labeled ‘Flex-Power’. To the right, there is a gradient blue arrow pointing to the right, indicating variable power distances. The distances are marked at three points along the arrow: 20m, 60m, and 100m.

Energy Savings

Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization.


Plug and Play

Simply power up the switch and plug in connected devices

Ports

16 x Gigabit Ethernet ports

Switching Capacity

32 Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Fanless

Fanless design lowers energy consumption and eliminates operating noise

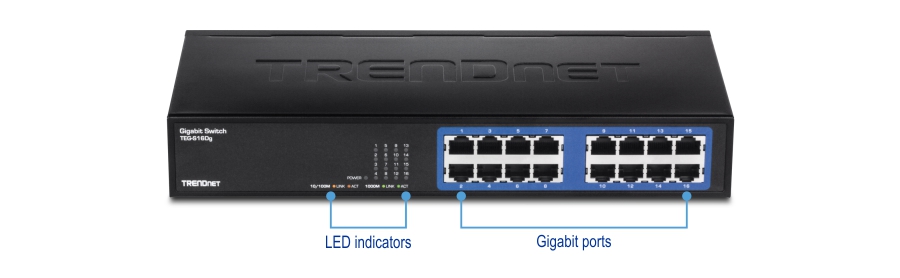

LED Indicators

LEDs convey power, link and activity

Internal Power Supply

100~240 VAC, 50/60 Hz internal universal switching power supply

Optional Rack Mount (sold separately)

Rack mountable with ETH-11MK rack mount brackets


SPECIFICATIONS

Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 and 5e up to 100 m
  • Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
  • Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
  • Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
  • Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
  • CSMA / CD, Star
Power Consumption
  • 10.1 Watts (max.)
Switch Fabric
  • 32 Gbps
Interface
  • 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
  • 512 KB
  • 8 K entries
Jumbo Frame Support
  • Up to 10 KB
Diagnostic LED
  • Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
  • 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
  • 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.)
Weight
  • 1.1 kg (2.4 lbs.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S16Dg
  • Quick Installation Guide
  • Power cord (1.8 m / 6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
