Simple Equipment Installation, Vented Top and Bottom Panels with Cable Cutouts

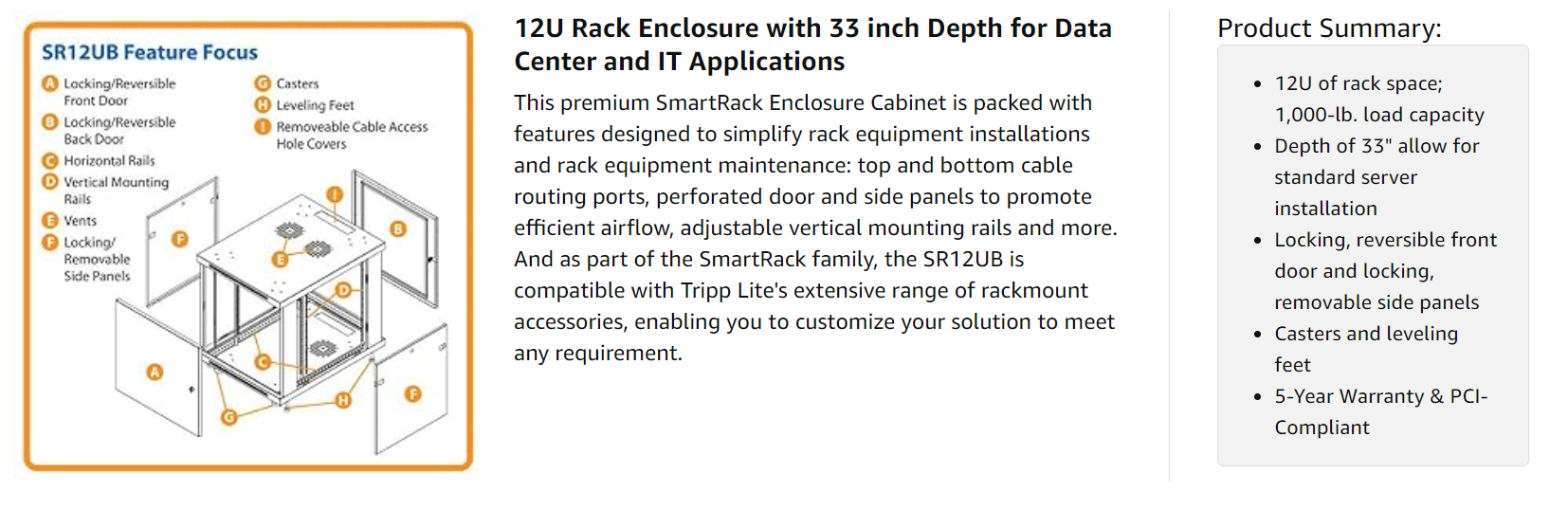

The SR12UB is compatible with all standard 19 inches rack equipment and is designed to simplify equipment installation. It features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches. Adjustment is quick and convenient. Simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 1000 pounds of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.
The top and bottom panels of the SR12UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing.

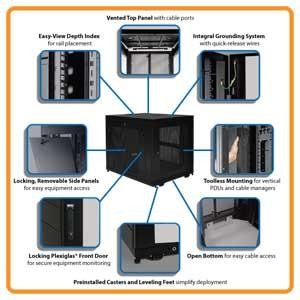

The SR12UB is designed to provide a safe, secure installation solution for up to 1000 pounds. of mission-critical rackmount equipment. It features a locking, reversible front door and locking, removable side panels. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement.
Fully Assembled with Preinstalled Caster Kit and 5-Year Warranty

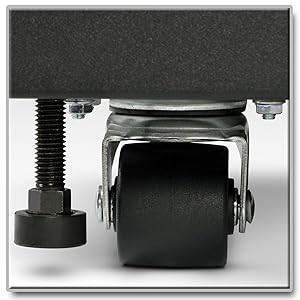

To simplify deployment, the SR12UB ships fully assembled along with a preinstalled accessory caster kit and all required installation hardware. With casters installed, the SR12UB can be taken out of the box and easily maneuvered to its desired location, followed by securing the rack in place by adjusting the unit’s levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
For peace of mind, the SR12UB comes backed by a 5-year warranty. This rack is also manufactured to meet strict RoHS specifications reflecting Tripp Lite's commitment to environmental responsibility. The SR12UB is a safe, secure installation solution that meets all requirements toward PCI DSS (Payment Card Industry Data Security Standard) compliance.
