TRENDnet’s TFC-1000MSC, Intelligent Fiber Converter, is compatible with the TFC-1600 chassis system or functions as a standalone unit. This converter is a Multi-Mode SC-Type fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550 m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.

Standalone Converter

Comes in a durable metal enclosure with integrated mounting points

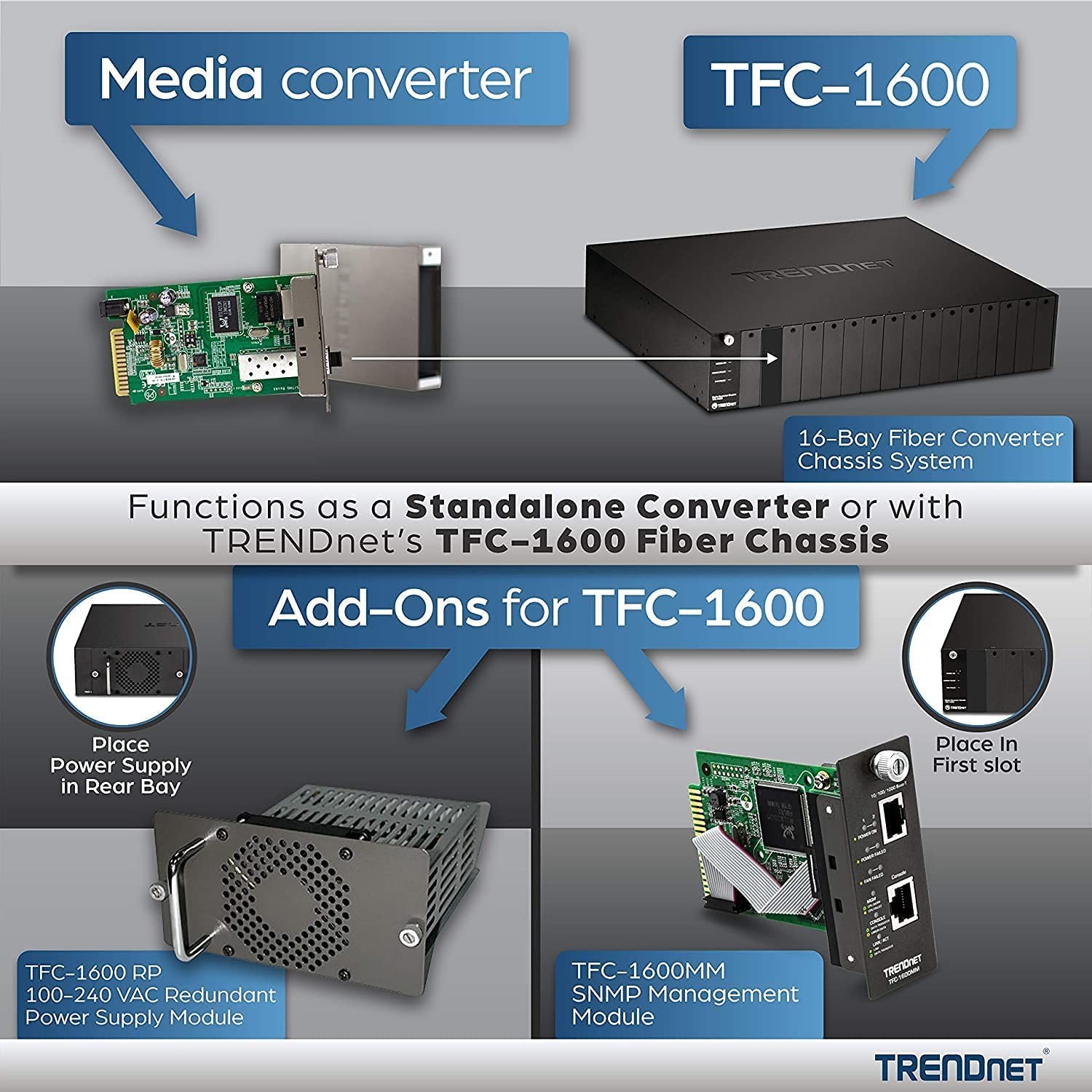

Compatible with Fiber Chassis

Works with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600, and supports chassis-based SNMP management (with TFC-1600MM)

Ethernet Port

1 x 1000Base-T Ethernet port

Fiber Port

1 x 1000Base-SX Multi-Mode port, compatible with SC-Type fiber connectors

Switching Capacity

2 Gbps switching capacity

LED Indicators

LEDs convey power and copper/fiber link and activity

DIP Switches

  • DIP Switch 1: Enable/disable Link Loss Carry Forward (LLCF) support
  • DIP Switch 2: Auto/force fiber full-duplex support

Networking Distance

Supports fiber networking over distances of up to 550 m (1,800 ft.)

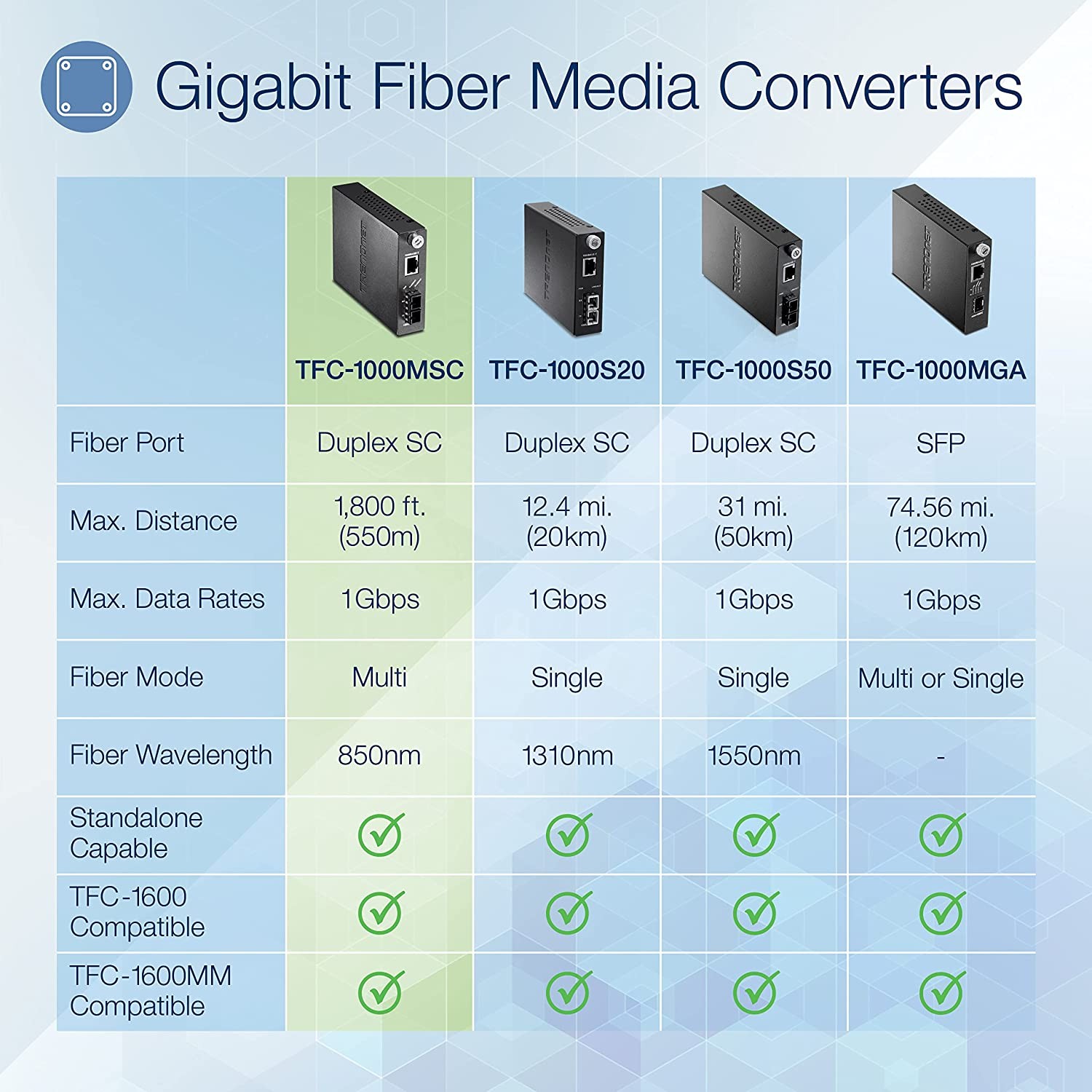

TRENDnet Fiber Solutions

Convert your copper RJ-45 Ethernet connection to a fiber connection with TRENDnet's fiber media converters. TRENDnet's media converters can support long distance fiber networking up to 43.5 miles (70km). TRENDnet fiber converters are available in both multi-mode (SX) and single-mode (LX), with dual wavelength (WDM) or bidirectional fiber options, and multiple connector types including T-RJ, SC, and ST.

TRENDnet's fiber converter chassis system is a convenient rackmount chassis system that consolidates your fiber media converters into one location, making your fiber network easier to manage. Power multiple fiber converters from a single source. Add a redundant power supply to eliminate any downtime, and/or the SNMP management module for monitoring and configurations.

SPECIFICATIONS

Standards
  • IEEE 802.3ab (1000Base-T)
  • IEEE 802.3z (1000Base-SX)
  • IEEE 802.3x
Device Interface
  • 1 x Gigabit port
  • 1 x SC type fiber port
  • LED indicators
Network Media
  • 1000Base-TX: Cat.5e, 6 EIA/TIA-568 100-ohm STP, up to 100 m
  • 1000Based-SX: 50/125μm multi-mode SC-Type fiber optic, up to 550 m
Protocol
  • CSMA/CD
Dip Switch
  • LLCF (enable & disable)
Data Transfer Rate
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Jumbo Frame
  • Up to 9KB
Wavelength
  • 850 nm
Optical Output Power
  • Min: -9.5 dBm
  • Max: -4 dBm
Optical Input Power
  • Min. (Sensitivity): -18 dBm
  • Max: 0 dBm
Power Budget
  • 8.5 dBm
Distance
  • 550m. (1800 ft.)
Power
  • Input: 100 – 240V AC, 50 – 60Hz, 0.2 A
  • Output: 5 V DC, 1A external power adapter
  • Consumption: 2.4 W (max.)
Special Features
  • Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Loss Return)
  • Monitor and configure Ethernet or Fiber’s duplex mode, LLCF, and receive link down information via management module TFC-1600MM and chassis TFC-1600
  • Status LED indicators for Power and Link/Activity
  • Wall mountable
  • Optional 19” system chassis (TFC-1600), houses up to 16 TFC-100/1000 series Media Converters
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing

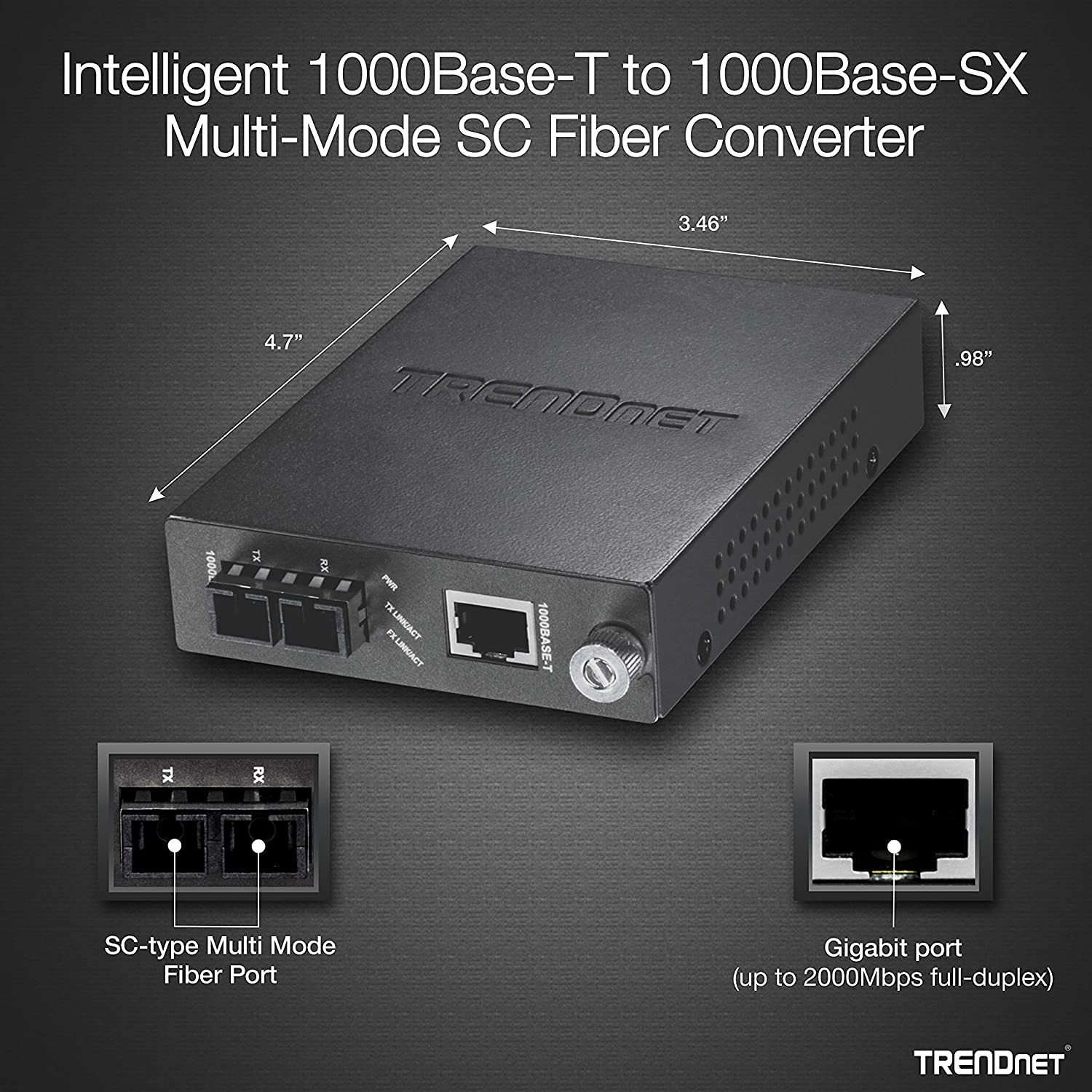

Dimensions
  • 120 x 88 x 25mm. (4.7 x 3.46 x 0.98 in.)
Weight
  • 280g (9.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TFC-1000MSC
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
