The 8-Port Gigabit GREENnet Mini Switch, model TEG-S80g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet™ technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

This space-saving metal mini switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. It’s ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.

Energy Savings
Embedded GREENnet™ technology
provides cost savings and reduces power
consumption. It works right out of the box
with no management required.

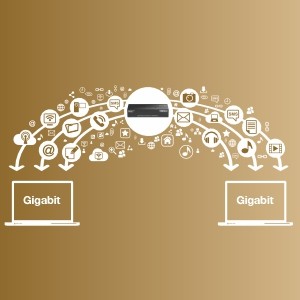

Gigabit Speeds

Eight gigabit ports provide high-speed
network connections to devices, and a
16Gbps switching capacity allows data
traffic to flow smoothly, reducing traffic
bottlenecks.

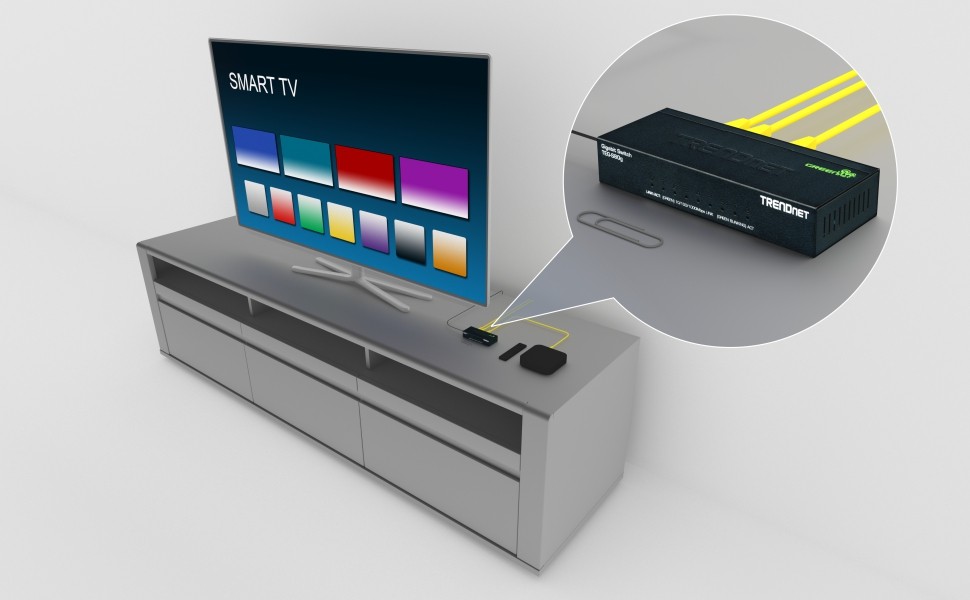

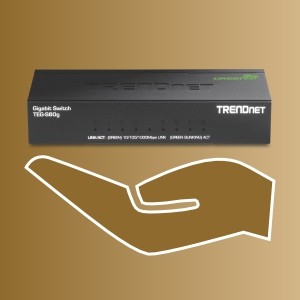

Compact Design
With a compact metal housing design,
this mini switch is well-suited for desktop
or wall mount installations. Its fanless
design is perfect for quiet environments
that require silent operation.

Easy Installation

No configuration needed, simply
connect network devices to this
gigabit mini switch

Gigabit Ports

Equipped with eight gigabit
Ethernet ports

Switching Capacity

16Gbps switching capacity

Fanless

Fanless design lowers energy
consumption and eliminates
operating noise

Housing Design

Compact and lightweight metal
housing

Wall Mountable

Features a convenient wall
mountable design for greater
installation flexibility

Jumbo Frame

Send larger packets, or Jumbo
Frames (up to 9KB), for increased
performance

LED Indicators

LED indicators convey port status

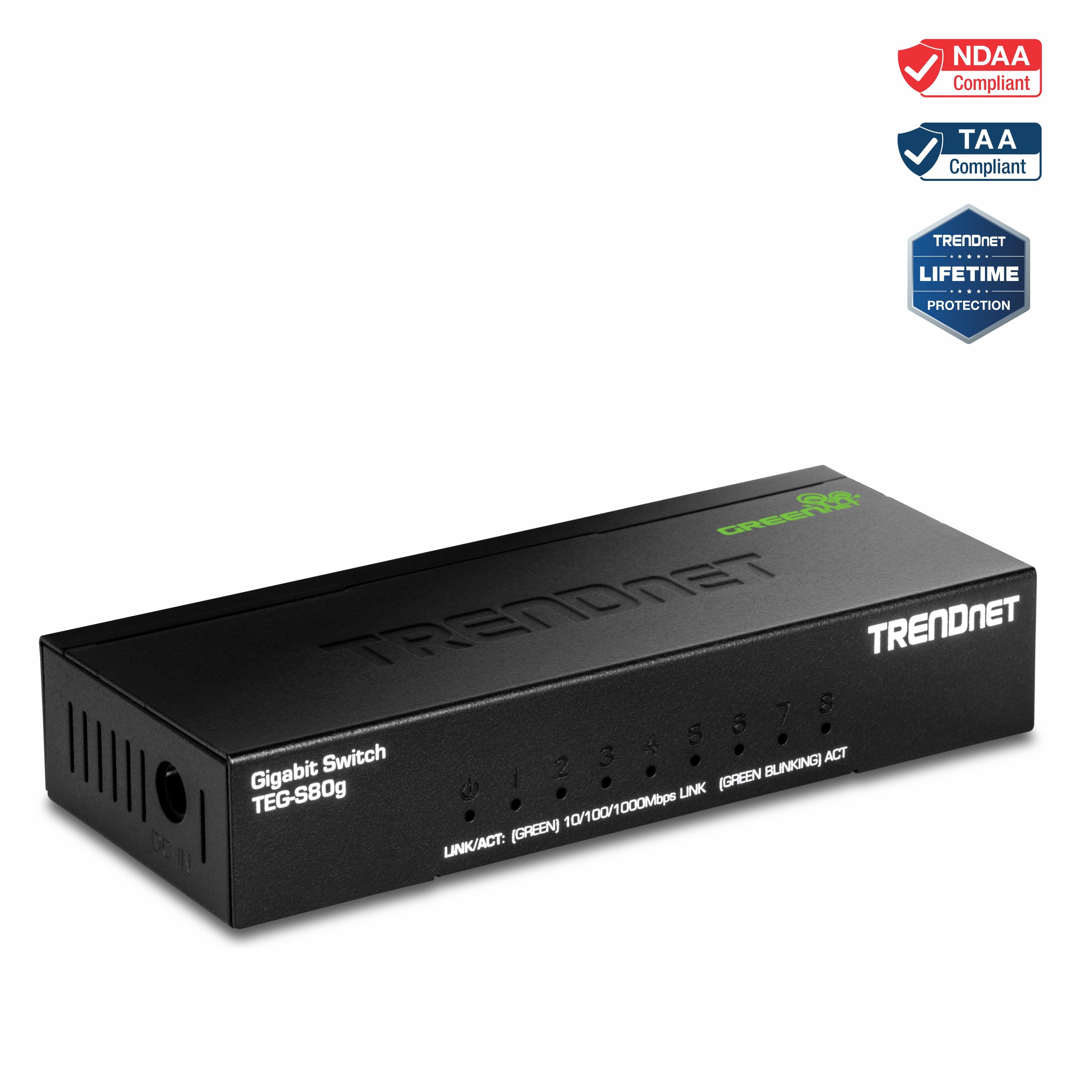

8-Port Gigabit GREENnet Mini Switch

• 8 x Gigabit ports
• 16Gbps switching capacity
• Energy savings with GREENnet™ technology
• Sturdy wall mountable metal mini switch
• Fanless design eliminates operating noise
• Lifetime Warranty
• NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit ports
  • LED indicators
  • Wall mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch fabric: 16Gbps
  • RAM buffer: 192KB
  • MAC address table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding mode: Store and forward
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 5V DC, 1A
  • Max. consumption: 3.2W
MTBF
  • 104,375 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing

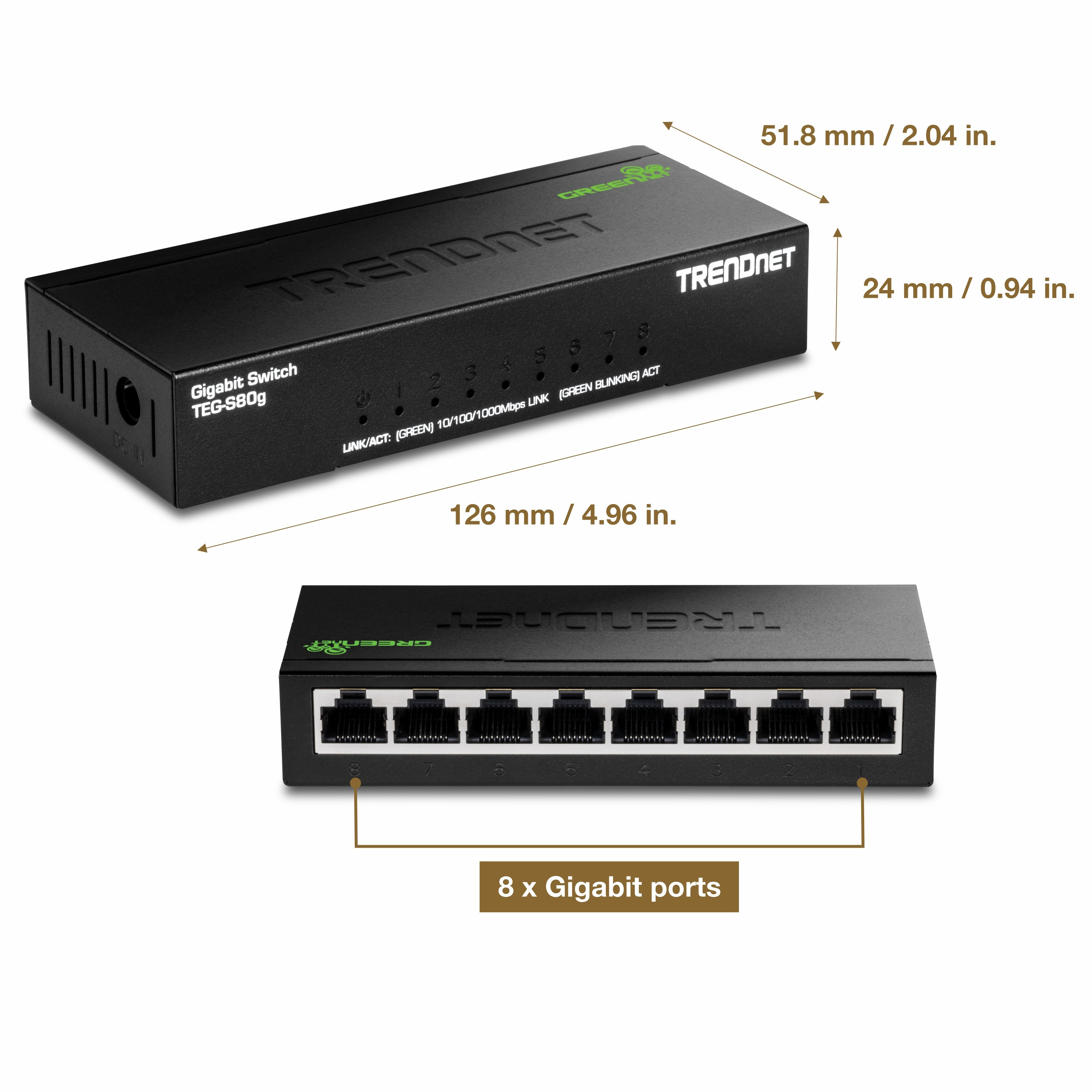

Dimensions
  • 126 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.)
Weight
  • 0.176 kg (0.388 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S80g
  • Quick Installation Guide
  • Power adapter (5V, 1A)
