Overview

TRENDnet's 8-Port 10/100Mbps PoE Switch, model TPE-S44, offers 4 x 10/100Mbps PoE ports, 4 x 10/100Mbps ports, a 1.6Gbps switching capacity, and a PoE power budget of 30 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

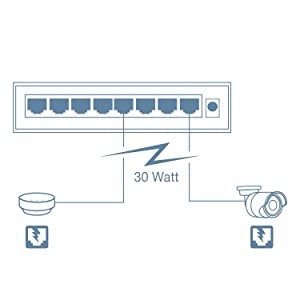

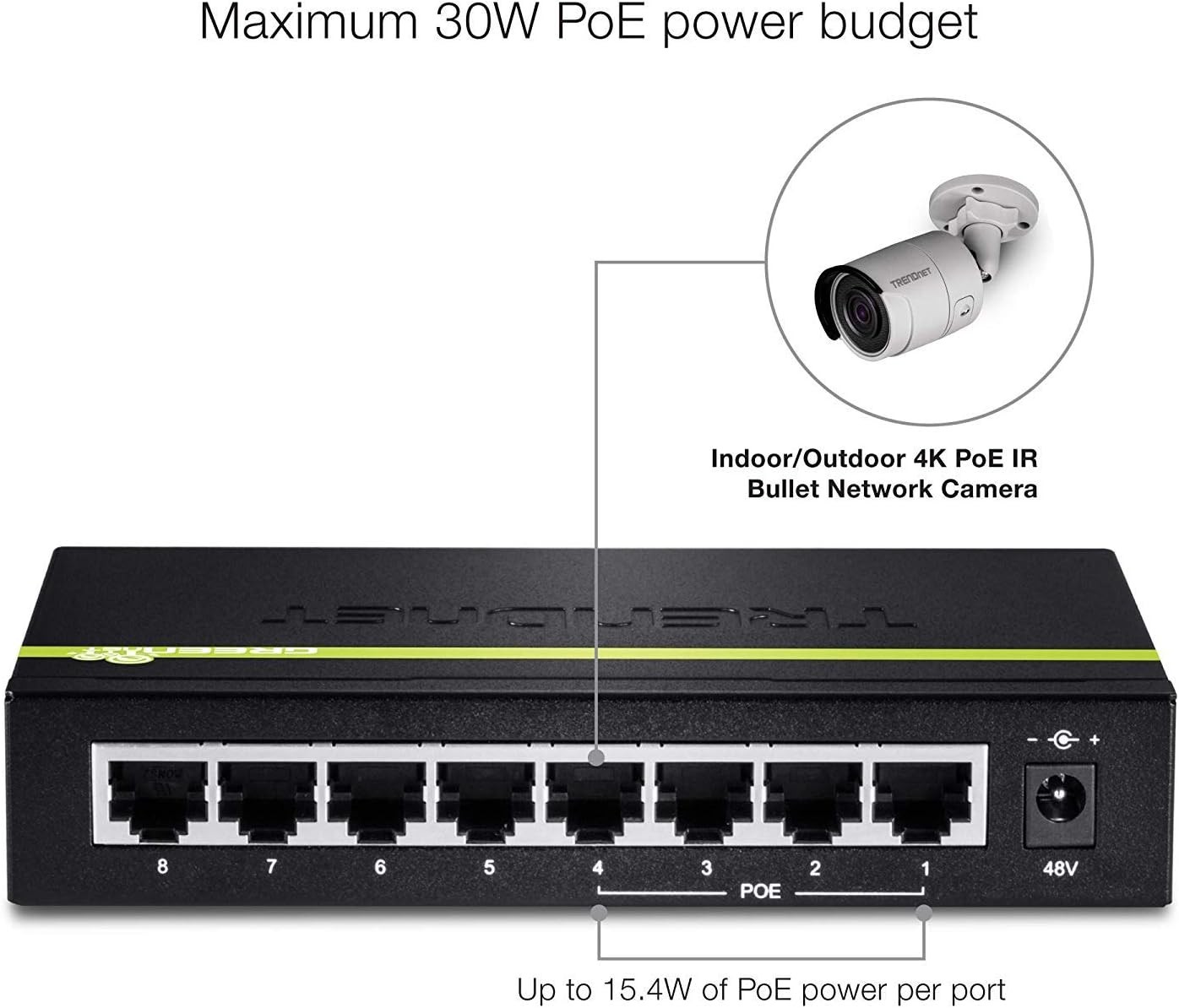

PoE power

A 30W PoE power budget supplies up to four PoE-powered Power over Ethernet devices.

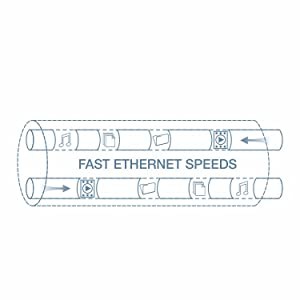

Fast ethernet

Eight fast 10/100 Mbps Ethernet ports produce 1.6Gbps switching capacity to support perimeter network installations.

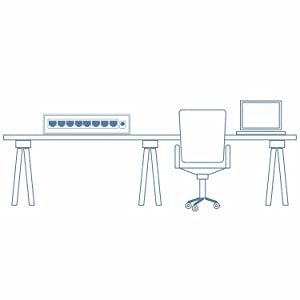

Compact design

With a compact and lightweight design, this switch is suitable for desktop installations. Its fanless design is perfect for quiet environments that require quiet operation.

Housing

Rugged metal enclosure

Ports

4 10 / 100Mbps PoE ports and 4 10 / 100Mbps ports.

Switching capacity

1.6 Gbps switching capacity.

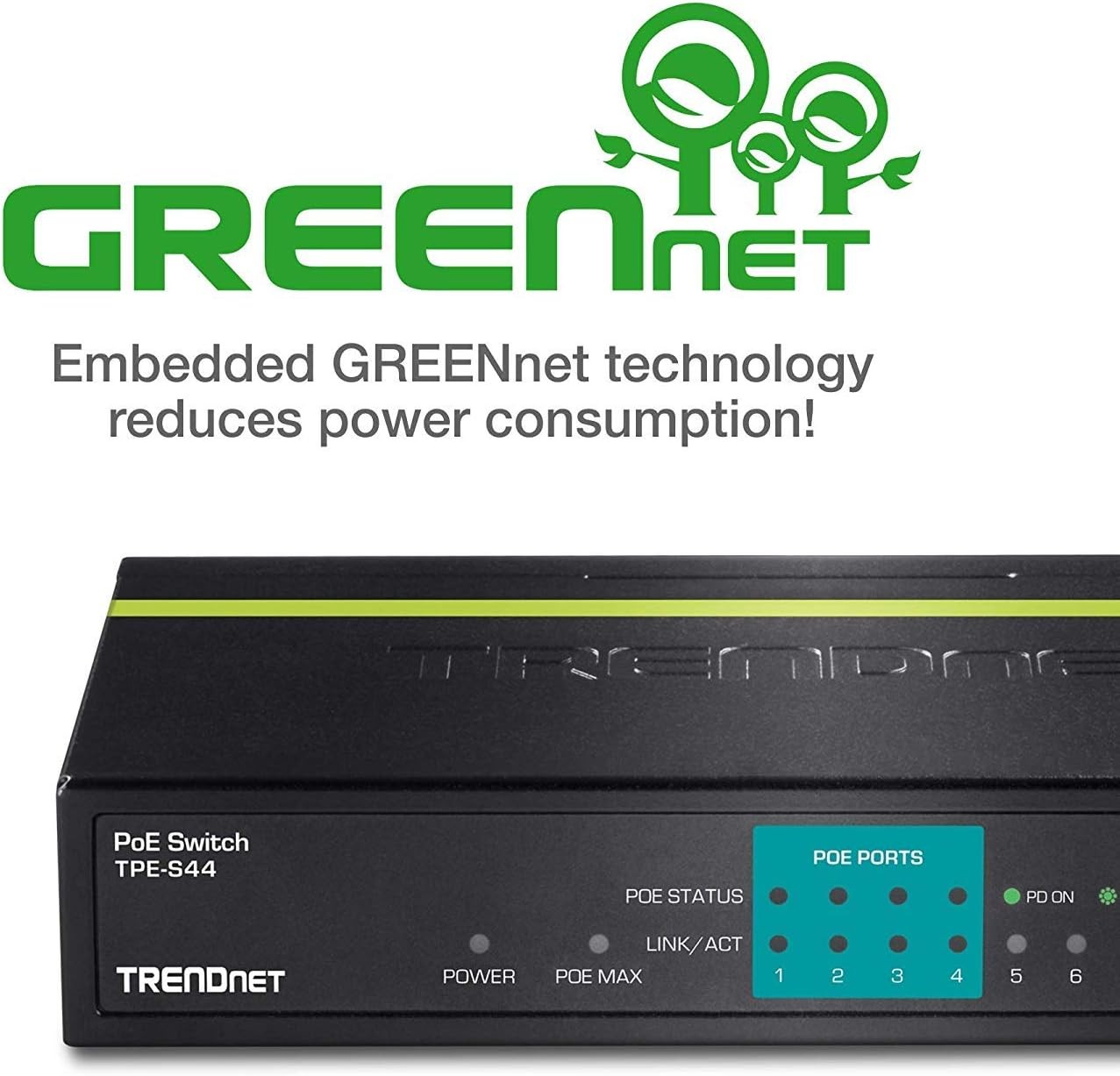

Energy saving

Integrated GREENnet technology reduces power consumption by up to 40%.

SPECIFICATIONS

Standards
  • IEEE 802.1p QoS
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af (15.4 Watts / port)
  • IEEE 802.3az
  • IEEE 802.3x

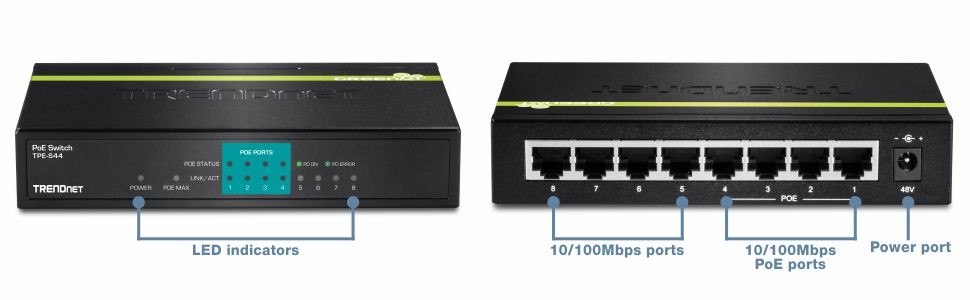

Device Interface
  • 4 x 10/100Mbps PoE ports (port 1~4)
  • 4 x 10/100Mbps Fast Ethernet ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance
  • Data RAM Buffer: 96KB
  • Switch Fabric: 1.6Gbps
  • MAC Address Table: 2 K entries
  • Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features
  • GREENnet energy saving technology
Power
  • Input: 110-240 V AC, 50 / 60 Hz, 0.75 A
  • Output: 48 V DC, 0.8 A
  • Consumption: 2.1 Watts (Max. without PD)
PoE
  • PoE budget: 30 Watts
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Operating Temperature
  • 0 – 45 °C (32 - 113 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
  • 370g (12.9 oz.)
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TPE-S44
  • Quick Installation Guide
  • Power adapter (48 V DC, 0.8 A)
