OVERVIEW

TRENDnet's 8-Port Rackmount VGA KVM Switch, model TK-803R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount USB KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port Rackmount USB KVM Switch is the perfect choice for managing multiple PC's.

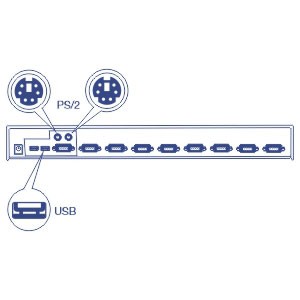

KVM Interface


USB and PS/2 interface on the console side and USB only on the PC side mouse and keyboard connections.

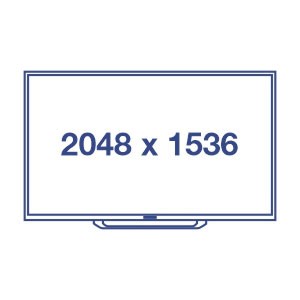

Video Resolution


Supports up to 2048 x 1536 VGA resolution.

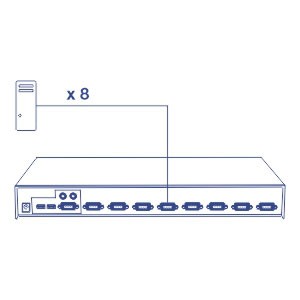

8-Port KVM


Manage up to 8 computers with this rackmount USB KVM switch

TRENDnet's 8-Port Rackmount VGA KVM Switch, model TK-803R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount USB KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port Rackmount USB KVM Switch is the perfect choice for managing multiple PC's.

8-Port Rackmount KVM Switch

  • Controls up to 8 computers or servers
  • Console port supports both USB and PS/2 for keyboard and mouse interfaces
  • USB only for PC side mouse and keyboard connections
  • Supports Windows®, Linux®, Mac OS® and more
  • Supports up to 2048 x 1536 VGA resolution
  • Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between computers
  • LEDs display for easy status monitoring
  • Audio notification for port switching confirmation (enable/disable)
  • Keyboard hot-key command or push button switching
  • Plug & Play and Hot-Pluggable
  • Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
  • Standard 19” (1U) rackmount design
  • 2 year warranty
  • NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Console Port Connectors
  • Keyboard: USB Type A, PS/2
  • Mouse: USB Type A, PS/2
  • Monitor: VGA
Computer Interface (up to 8)
  • Keyboard/Mouse: USB Type A
  • Monitors: VGA
Monitor Resolution
  • 2048 x 1536
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 80% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 1.33A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 407 x 165 x 45mm (16 x 6.5 x 1.8 in.)
Weight
  • 1.8kg (4 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year
PACKAGE CONTENTS
  • TK-803R
  • Quick Installation Guide
  • Power adapter (9V DC, 1.33A)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
