Easy Setup

Plug and play out of the box

Compact

Compact design fits in a crowded desktop

Traffic Management

Non-blocking wire-speed architecture

Ethernet Ports

Up to 200 Mbps per port and total switching capacity of 1.6 Gbps

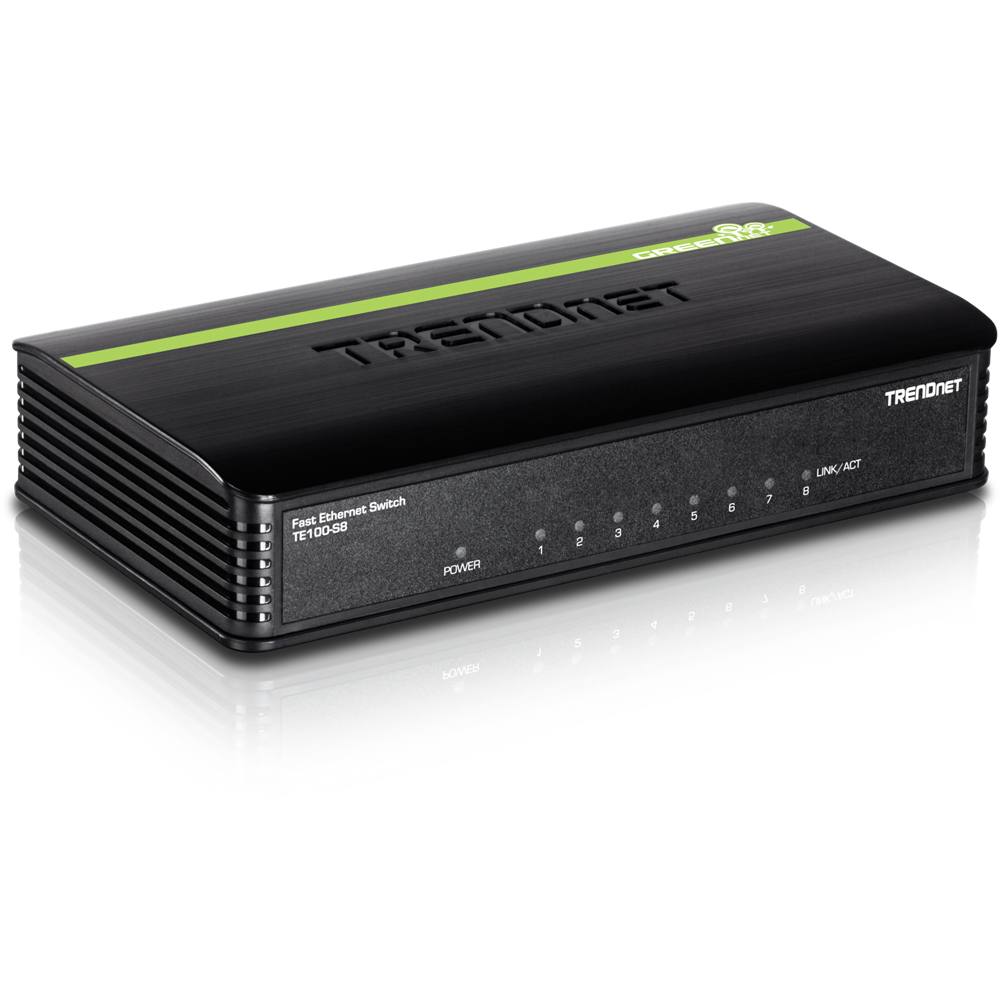

8-Port 10/100 Mbps GREENnet Switch

  • Plug and play out of the box
  • 8 x 10/100 Mbps Ethernet ports
  • Up to 40% GREENnet energy savings*
  • 1.6 Gbps switching capacity
  • NDAA compliant

SPECIFICATIONS

HARDWARE
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az

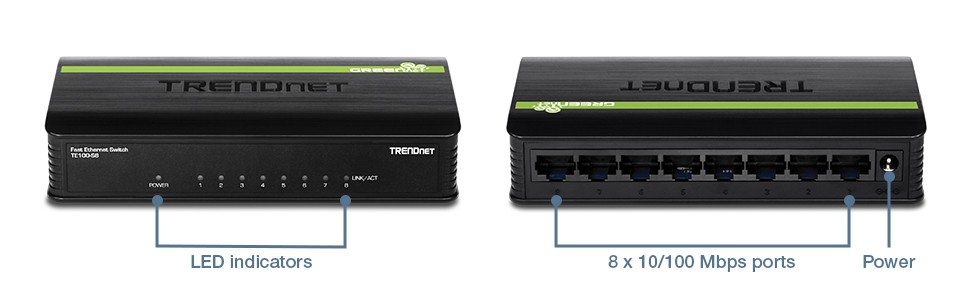

Device Interface
  • 8 x 10/100 Mbps Ethernet ports
  • Power
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps(full duplex)
Performance
  • Data RAM buffer: 56 KB
  • Switch fabric: 1.6 Gbps
  • MAC address table: 1 K entries
  • Forwarding rate: 1.19 Mpps (64-byte packet size)
Special Feature
  • GREENnet energy saving technology
Power
  • Input: 100 240 V, 50/60 Hz, 0.2 A
  • Output: 5 V, 1 A
  • Consumption: 1.4 Watts max.
Operating Temperature
  • 0 - 50 °C (32 - 122 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 140 x 75 x 28 mm (5.5 x 3 x 1.1 in.)
Weight
  • 126 g (4.4 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited
PACKAGE CONTENTS
  • TE100-S8
  • Quick Installation Guide
  • Power adapter (5 V, 1 A)


* Max power savings compared with standard TRENDnet switches.
