OVERVIEW

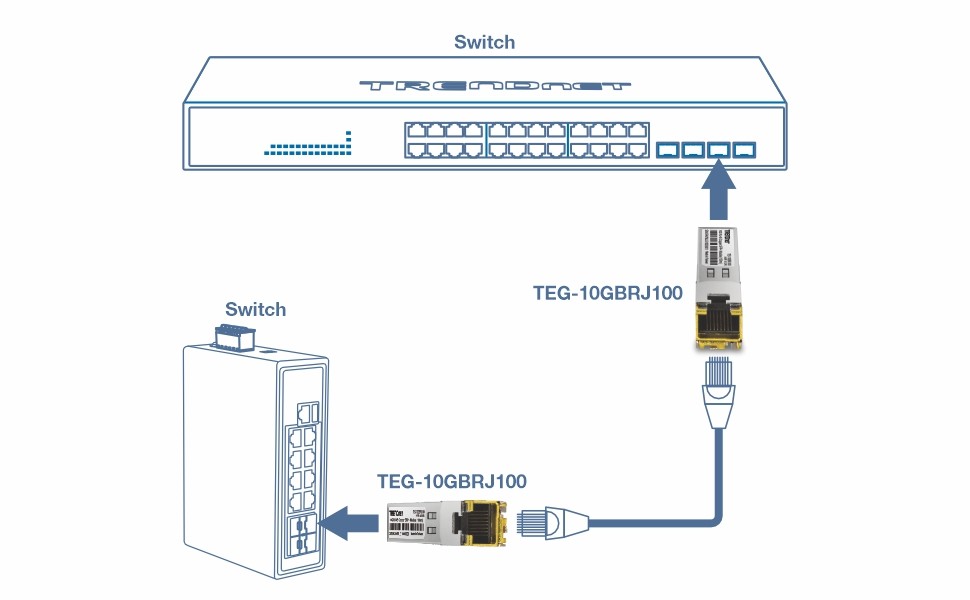

TRENDnet’s 10G RJ45 Copper SFP+ Module, model TEG-10GBRJ100, converts a standard SFP+ port into an RJ45 multi-gigabit port for additional high-speed copper connectivity up to 100m (328 ft.). This 10G copper SFP+ module works with standard SFP+ ports commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ ports for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module.

FEATURES

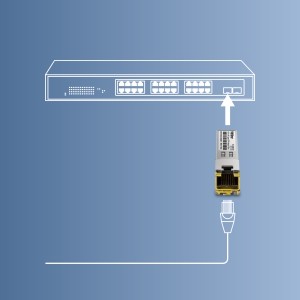

RJ45 Copper SFP+

Take advantage of unused SFP+ ports and repurpose them for RJ45 copper multi-gigabit connectivity.

Gigabit Speeds

Converts an SFP+ port to a 10G RJ45 Ethernet portThe 10G RJ45 copper SFP+ module spans distances up to 100m (328 ft.) and supports up to 10Gbps speeds.

Compatibility

Compatible with an MSA compliant SFP+ port and multi-gigabit RJ45 copper connections.

Ethernet Distance

Supports networking distances up to 100m (328 ft.)

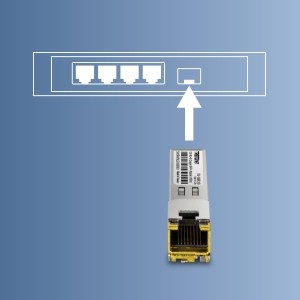

Connection Interface

Converts an SFP+ port to a 10G RJ45 Ethernet port

Hot-Pluggable SFP+

Hot-pluggable 10G copper SFP+ compatible with an MSA compliant SFP+ port

Operating Temperature

This 10G copper SFP+ module features an operating temperature range of 0°– 70° C (0° – 158° F)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3ae IEEE 802.3az IEEE 802.3an IEEE 802.3ab

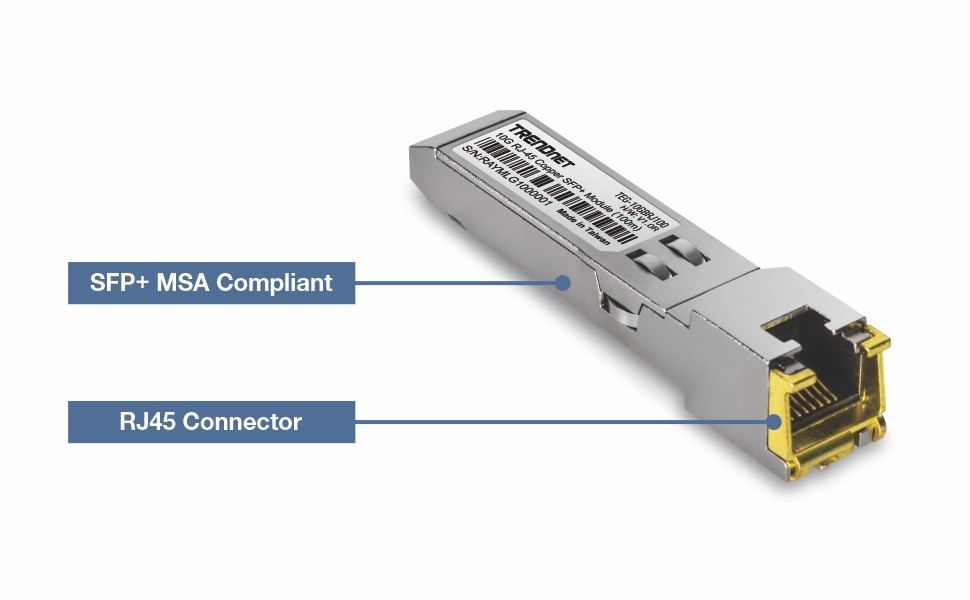

Device Interface	SFP+ MSA compliant RJ45 connector Hot-pluggable
Data Transfer Rate	1000Base-T 10GBase-T
Distance	10Gbps up to 100m (328 ft.) with Cat6A/7 1G up to 100m (328 ft.) with Cat5e
Power	Max. consumption: 2.5W
Operating Temperature	0° C – 70° C (32° F – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	68.5 x 13.8 x 13.8mm (2.7 x 0.5 x 0.5 in.)
Weight	23g (0.8 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-10GBRJ100

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
