OVERVIEW

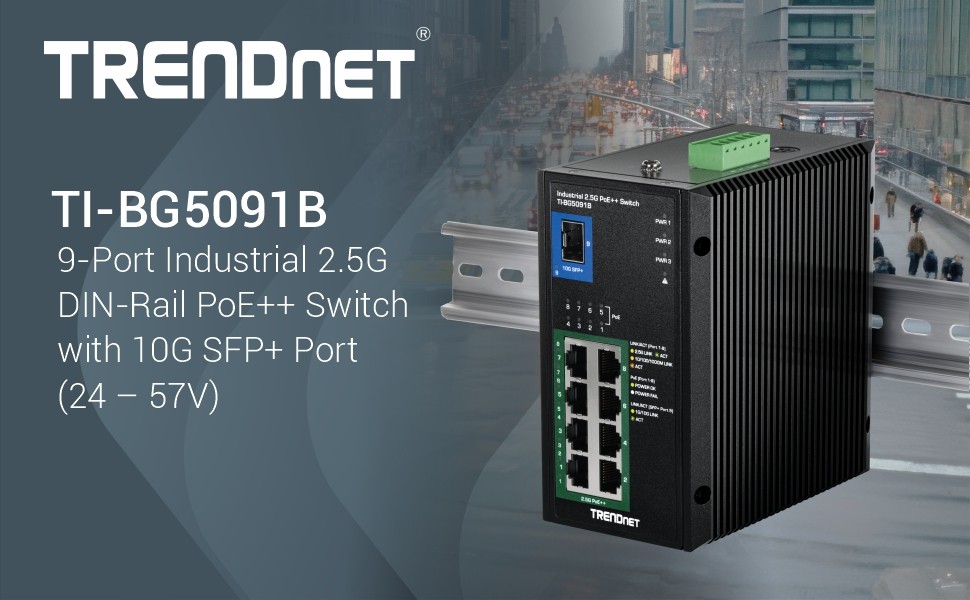

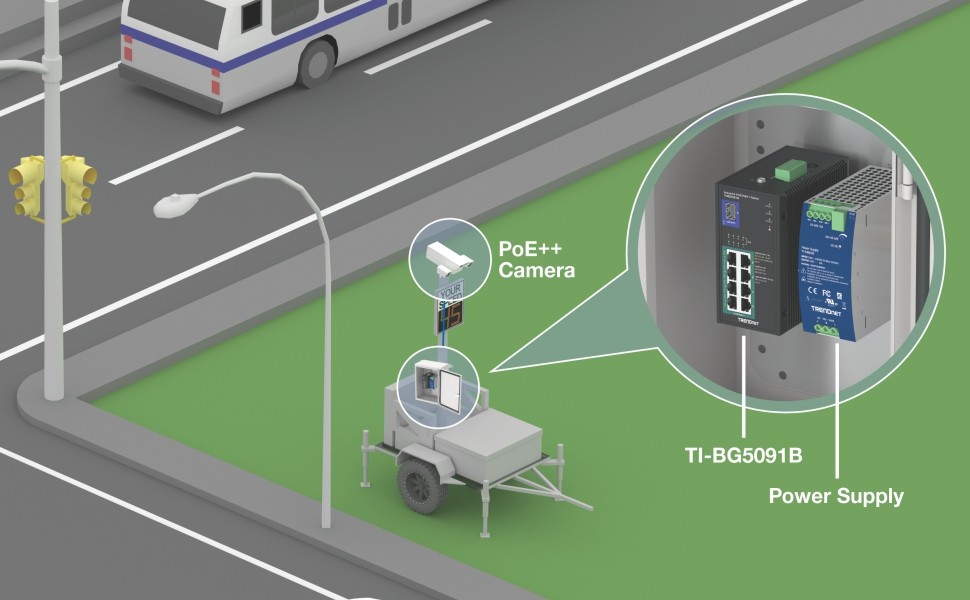

TRENDnet's 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 – 57V), model TI-BG5091B, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial variable voltage switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This adjustable voltage switch features eight 2.5G PoE++ ports, and a 10G SFP+ port for long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's voltage booster PoE++ switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial variable voltage switch, users only need one cable to deliver both data and power. The switch also features Fast PoE technology, which minimizes wait time for PoE devices by providing power immediately at boot up. Dual 24 – 57V DC power inputs on this adjustable voltage switch provide redundancy with power failure alarm relay.

FEATURES

PoE++

Up to a 480W PoE power budget supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.

Fault Tolerance

The industrial variable voltage switch features dual 24 – 57V DC power inputs for redundancy with overload current protection.

Industrial Hardened Design

Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F).

PoE Power Budget

Up to a 480W PoE power budget on this industrial variable voltage switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power

DIN-Rail/Wall Mounts

Metal enclosure with included DIN-Rail and wall mount hardware

Alarm Relay

Alarm relay is triggered by power failure of primary and/or redundant power

Operating Temperature

Operates within an extreme temperature range of -40° - 75° C (-40° - 167° F)

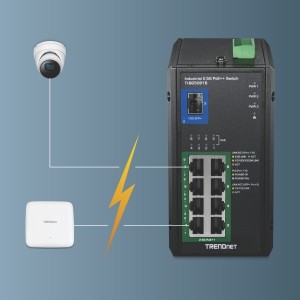

Fast PoE

With Fast PoE, the industrial variable voltage switch provides power to a connected PoE device within a few seconds of the switch receiving power—no need to wait for the switch to fully boot up

IP50 Housing

IP50 rated metal housing protects the industrial variable voltage switch from most environments with dust particles

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

Network Ports

8 x 2.5G PoE++ ports and 1 x 10G SFP+ port

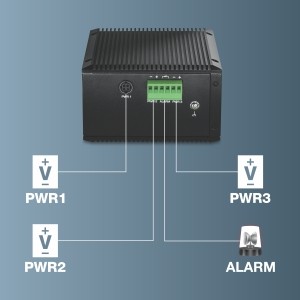

Power Redundancy

The voltage booster PoE++ switch features dual 24 – 57V DC power inputs for redundancy with overload current protection

Industrial Design

Rugged design to withstand a high degree of vibration and shock for harsh environments

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment against external electrical surges

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3ae IEEE 802.3af IEEE 802.3an IEEE 802.3at IEEE 802.3bt IEEE 802.3bz

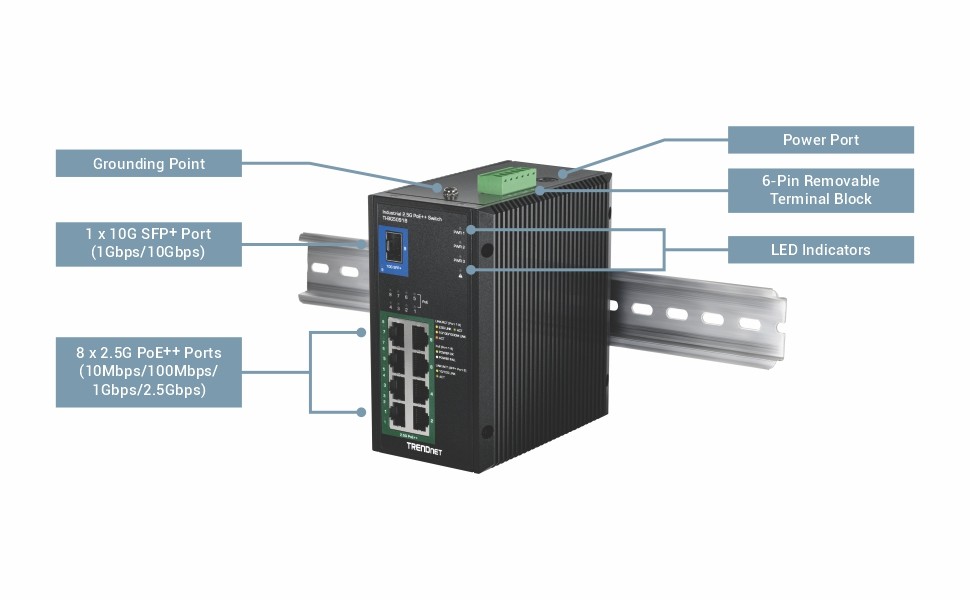

Device Interface	8 x 2.5G PoE++ ports (10Mbps/100Mbps/1Gbps/2.5Gbps) 1 x 10G SFP+ port (1Gbps/10Gbps) 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) 1G Fiber: 2Gbps (full duplex) 10G Fiber: 20Gbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 60Gbps MAC Address Table: 4K entries Jumbo Frame: 12KB Forwarding rate: 44.64Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Fast PoE Multiple power inputs Auto-Negotiation Support VLAN pass through Auto store and forward architecture Automatic address learning and address aging ESD 6kV protection
DC Power	Input: 24 - 57V DC Compatible power supply: TI-S24052, TI-S48048 (sold separately) Max. consumption: 12.4W @24V (no PD)
AC Power	Input 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.
PoE	PoE: up to 15.4W per port PoE+: up to 30W per port PoE++: up to 95W per port Power budget: 240W @ 24V Power budget: 480W @ 56V
Terminal Block	6-pin terminal block Alarm relay contact Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-28 Stranded wire (AWG): 12-28 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	1,1160,603 hours @ 25°C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	134 x 124 x 73mm (5.3 x 4.88 x 2.87 in.)
Weight	1.4kg (3 lb.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-6-2 IEC 61000-6-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-BG5091B
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 – 57V)

8 x 2.5G PoE++ ports
1 x 10G SFP+ port
Up to 480W PoE power budget
60Gbps switching capacity
Hardened IP50 rated metal switch
Fast PoE minimizes wait time for powering up PoE devices
Includes DIN-Rail and wall mounts
Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
Multiple power inputs for redundancy
Alarm output triggered by power failure
Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)
Lifetime Warranty
