OVERVIEW

The 5-Port Gigabit GREENnet Mini Switch, model TEG-S50g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

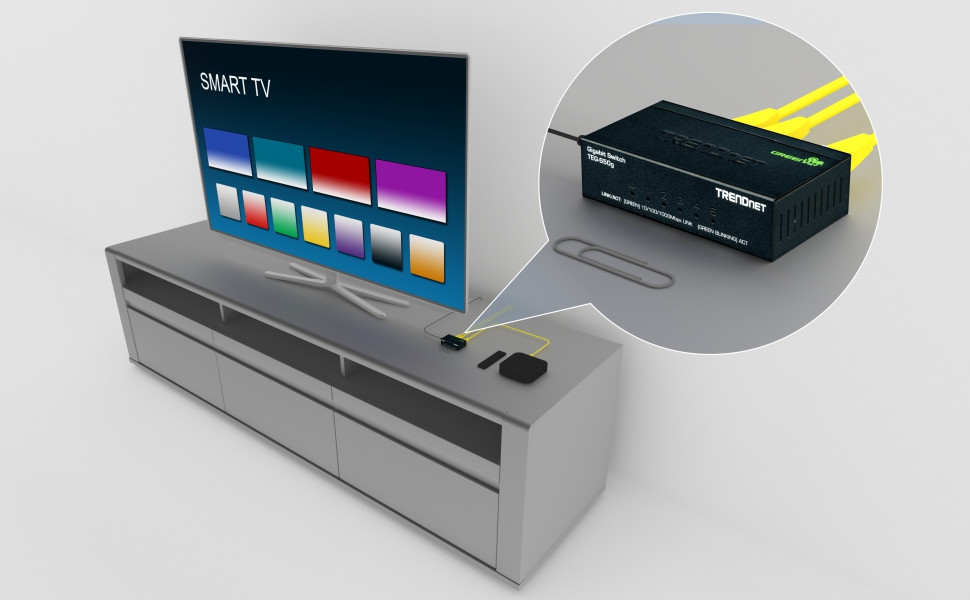

This space-saving metal mini network switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. The small network switch is ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.

Features

Energy Savings

Embedded GREENnet technology provides cost savings and reduces power consumption. It works right out of the box with no management requirement.

Gigabit Speeds

Five gigabit ports provide high-speed network connections to devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Compact Design

With a compact metal housing design, this mini network switch is well-suited for desktop or wall mount installations. Its fanless design is perfect for quiet environments that require silent operation.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
Device Interface	5 x Gigabit ports LED indicators Wall mountable
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switch fabric: 10Gbps RAM buffer: 128KB MAC address table: 2K entries Jumbo Frames: 9KB Forwarding mode: Store and forward Forwarding rate: 7.44Mpps (64-byte packet size)
Power	Input: 100 – 240V AC, 50/60 Hz Output: 5V, 1A Max. consumption: 2.06W
MTBF	106,086 hours
Fan / Acoustics	Fanless
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing

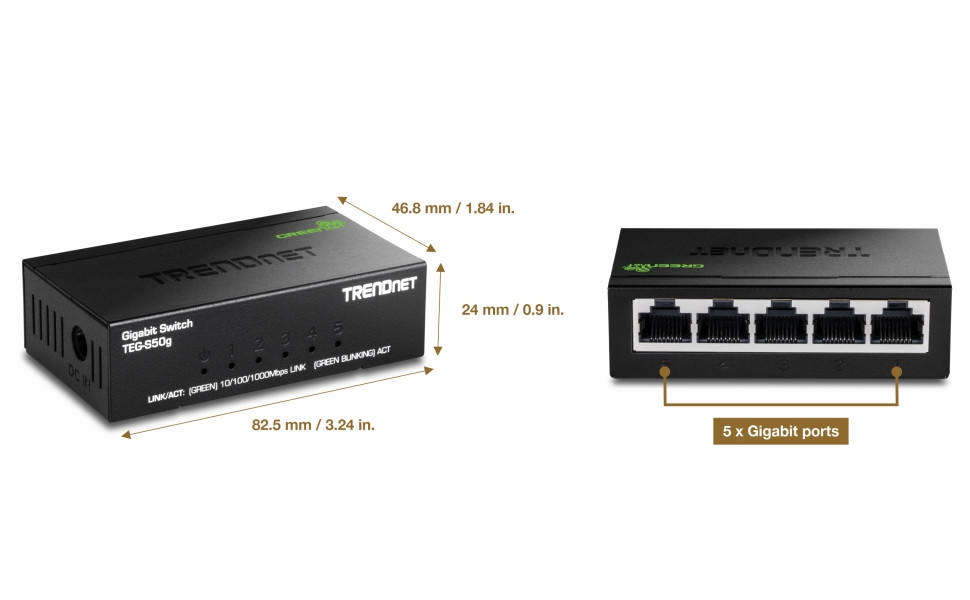

Dimensions	82.5 x 46.8 x 24mm (3.24 x 1.84 x 0.9 in.)
Weight	0.112 kg (0.24 lbs.)
Certifications	CE FCC LVD
Warranty:	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S50g
Quick Installation Guide
Power adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

5-Port Gigabit GREENnet Mini Switch

5 x Gigabit ports
10Gbps switching capacity
Energy savings with GREENnet technology
Sturdy wall mountable metal mini network switch
Fanless design eliminates operating noise
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
