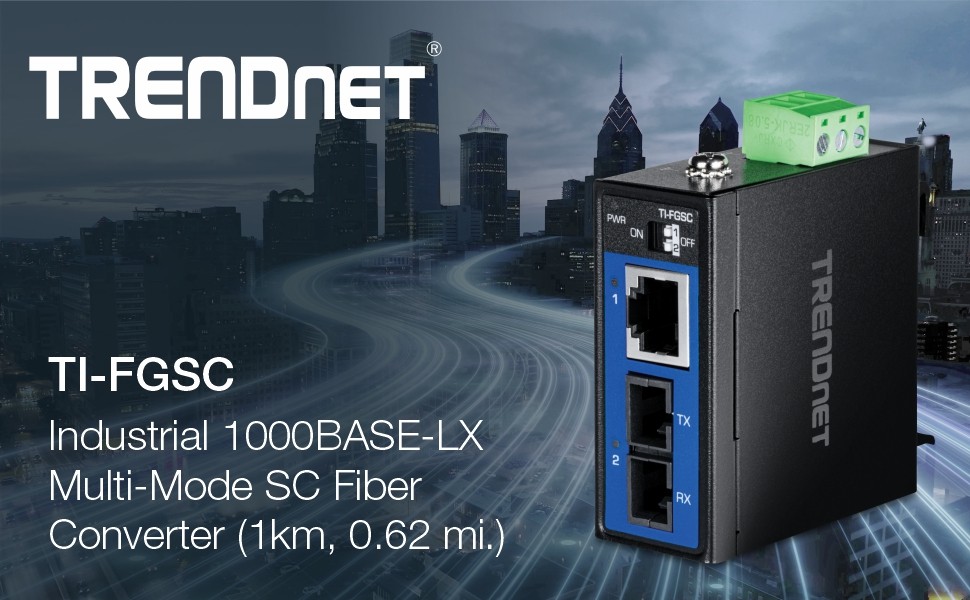

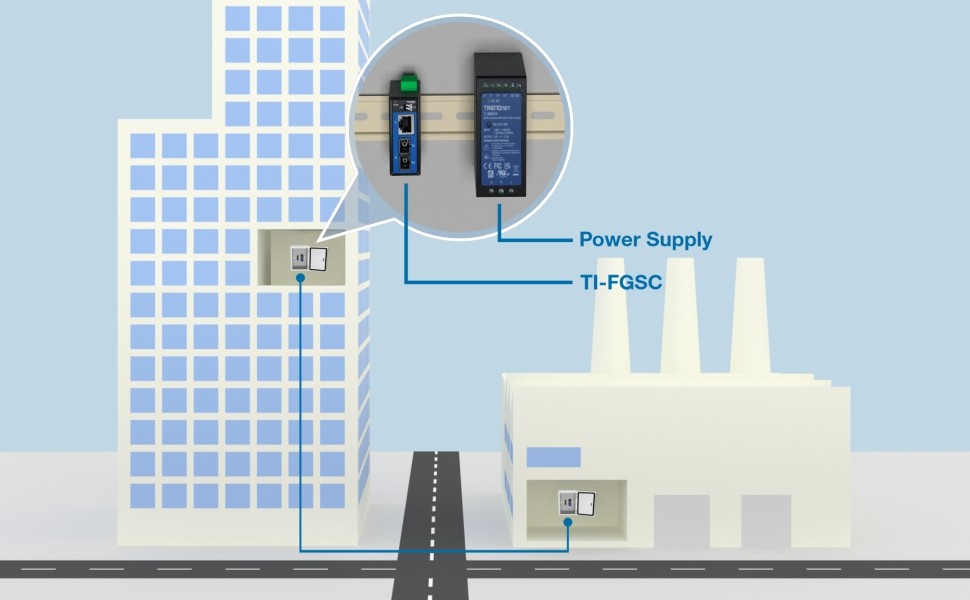

TRENDnet’s Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter, model TI-FGSC, features a gigabit RJ45 port and a 1000BASE-LX SC interface port for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.). The industrial multi-mode media converter’s compact IP50-rated design allows for flexible installation, provides ingress dust protection, and includes DIN-rail and wall mounting hardware options. The industrial SC fiber converter’s rugged design provides resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of -40° – 75° C (-40° – 167° F). The front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass Through (LFPT).

FEATURES

Distance

1000BASE-LX (1310nm) gigabit multi mode fiber for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.)

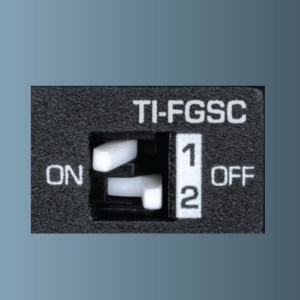

Front Panel Switches

The industrial multi-mode media converter’s front panel DIP switches quickly allow switching between switch/ converter modes, and enable or disable Link Fault Pass Through (LFPT).

Hardened Compact Design

Equipped with an IP50-rated housing for dust ingress protection, 6kV Ethernet surge protection, designed to provide resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of 40° – 75° C (-40° – 167° F).

Network Ports

1 x Gigabit RJ45 Port and
1 SC fiber optic port

Distance

1000BASE-LX (1310nm) gigabit
multi-mode fiber for distances of
up to 1km (0.62 mi)

Dust Protected

The industrial multi-mode
converter’s IP50-rated metal
housing provides ingress
protection from dust

Extreme Temperature Range

Operates within an extreme
operating temperature range of
40° – 75° C (-40° – 167° F)

Link Fault Pass Through

Easily enable the LFPT (Link Fault
Pass Through) feature on the
industrial multi-mode media
converter using the front panel DIP
switch to identify a link fault to the
remote LFPT enabled media
converter

Converter Modes

Quickly toggle between switch
or converter (passthrough)
modes using the front panel DIP
switch depending on network
traffic requirements and provide
installation flexibility

Overload Current Protection

12 – 60V DC power input with
overload current protection;
power supply sold separately
(model: TIM6024)

Surge Protection

Provides up to 6kV RJ45
Ethernet surge protection

Shock and Vibration Resistant

Complies with shock (EN 60068
227), freefall (EN 60068-2-31), and
vibration (EN 60068-2-6) standards

Fanless

Fanless design lowers
energy consumption and
eliminates operating
noise

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-4-2):
Level 3 Contact: 6kV, Air: 8kV; EFT
(IEC 61000-4-4): Power 2kV,
Signal: 1kV; Surge (IEC
61000-4-5): Power: 2kV, Signal:
2kV

DIN-Rail / Wall Mounts

The industrial multi-mode media
converter includes DIN-Rail
mount and wall mount hardware

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z

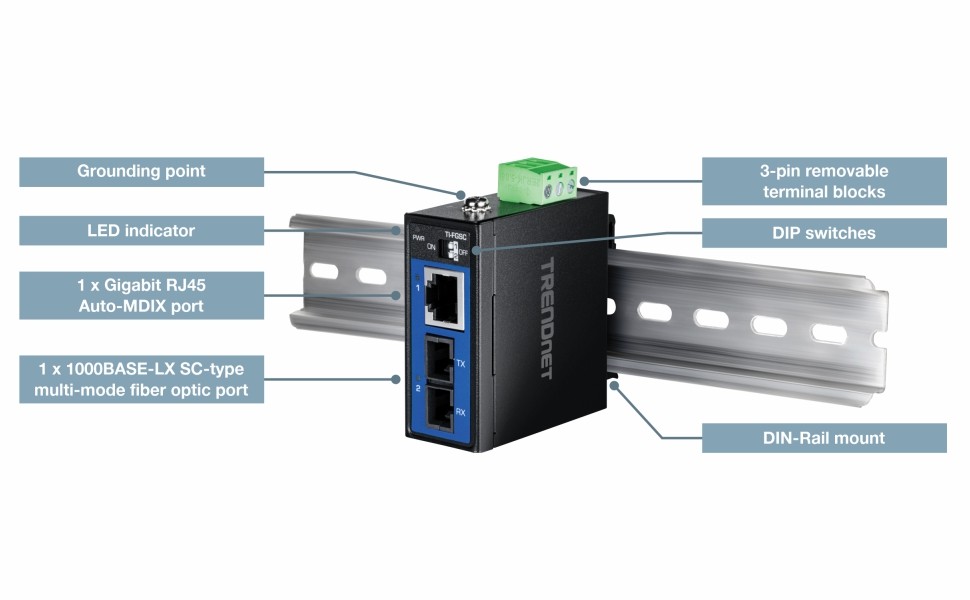

Device Interface	1 x Gigabit RJ45 Auto-MDIX port 1 x 1000BASE-LX SC-type multi-mode fiber optic port 2 x DIP Switches (1: LFPT, 2: Switch/Converter Mode) 3-pin removable terminal block LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Fiber: 2Gbps (full duplex)
Performance	Data RAM Buffer: 64KB Switching Capacity: 4Gbps MAC Address Table: 1K entries Jumbo Frame: 16KB Forwarding rate: 2.98Mpps (64-byte packet size)
Fiber	Media: Multi-mode SC fiber optic connector Cable: 50 / 125 µm Wavelength: 1310 nm Optical Output Power (dBm): -9 ~ -3 Optical Input Power (dBm): -24 ~ -3 Power Budget: 15 dBm Distance: 1km (0.62 mi.)
Power	Input: 12 – 60V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 2.148W
Terminal Block	3-pin terminal block Wire range: 1.5mm2 Solid wire (AWG): 16-28 Stranded Wire (AWG): 16-28 Torque: 3 lb. – In / 0.2Nm / 0.56Nm Wire strip length: 6-7mm
MTBF	5,109,029 hours @ 25° C
Enclosure	IP50 metal case DIN-Rail mountable Wall mountable Ground terminal 6kV ESD protection 6kV RJ45 surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	62 x 58 x 27mm (2.4 x 2.3 x 1.1 in.)
Weight	148g (5.2 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-FGSC
Removable terminal block
DIN-Rail and wall mount kit
