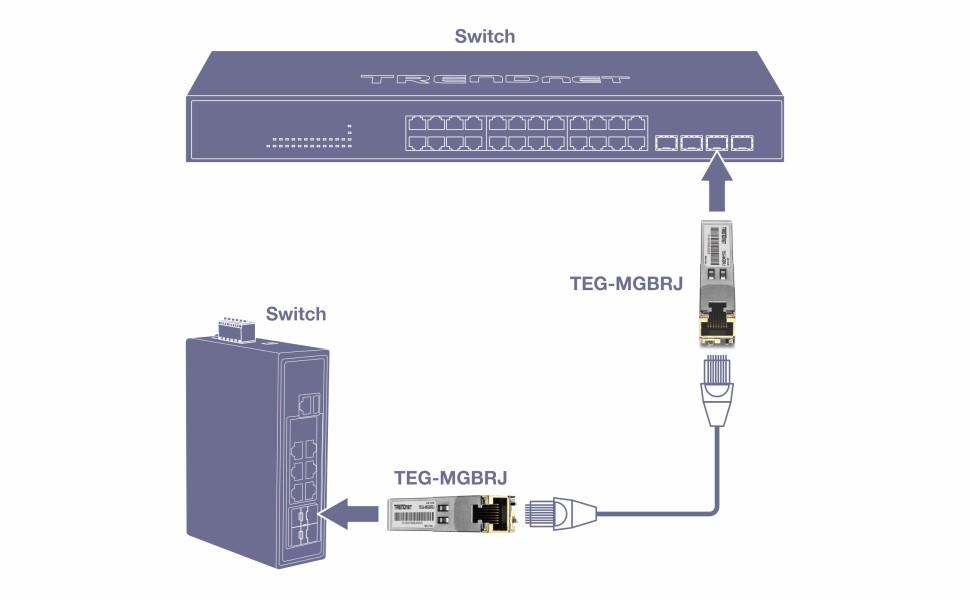

TRENDnet’s 2-Pack 1000BASE-T RJ45 Copper SFP Module, model TEG-MGBRJ/2, converts a standard SFP port into a RJ45 gigabit port for additional copper connectivity. These SFP modules work with standard SFP ports commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP ports for copper connectivity.

FEATURES

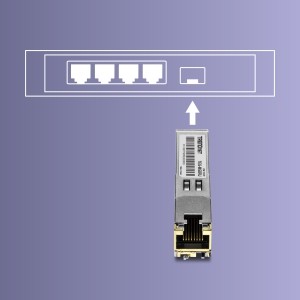

RJ45 Copper SFP

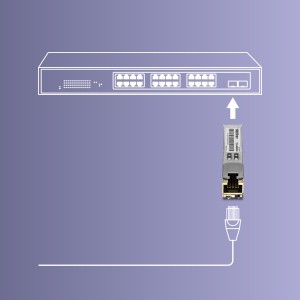

Take advantage of unused SFP slots and repurpose them with RJ45 copper Ethernet connectivity.

Gigabit Speeds

1000BASE-T RJ45 copper SFP spans distances up to 100m (328 ft.) and supports up to 1.25Gbps.

Compatibility

Compatible with a MSA compliant SFP slot and 1000BASE-T RJ45 connections.

Lorem ipsum dolor sit amet

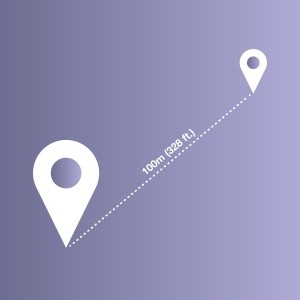

Distance

Supports networking distances up to 100m (328 ft.)

Connection Interface

1000BASE-T RJ45 gigabit port

Hot-Pluggable SFP

Hot-pluggable SFP compatible with a MSA compliant SFP slot

Operating Temperature

Operating temperature range of -0°– 70 °C (0° – 158 °F)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3z IEEE 802.3ab

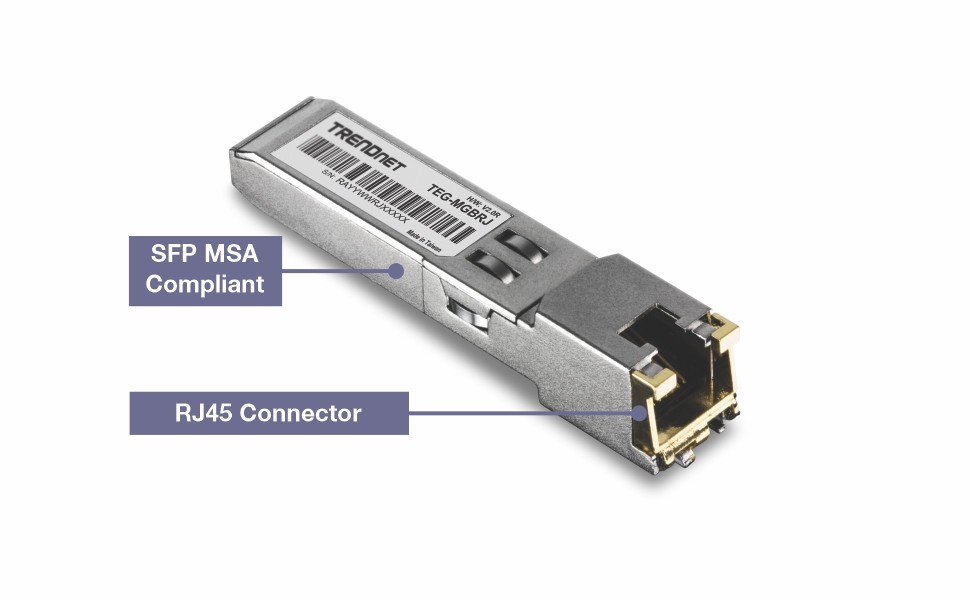

Device Interface	SFP MSA Compliant RJ45 connector Hot pluggable
Data Transfer Rate	Up to 1.25Gbps
Distance	100m (328 ft.)
Housing	Metal enclosure
Power (per unit)	Max. Consumption: 0.9W
Operating Temperature	0° – 70° C (32° – 158° F)
Power	Max. Consumption: 0.9W
Operating Temperature	0° – 70° C (32° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (per unit)	68 x 13 x 13 mm (2.67 x 0.5 x 0.5 in.)
Weight	22g (0.8 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

2 x TEG-MGBRJ

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
