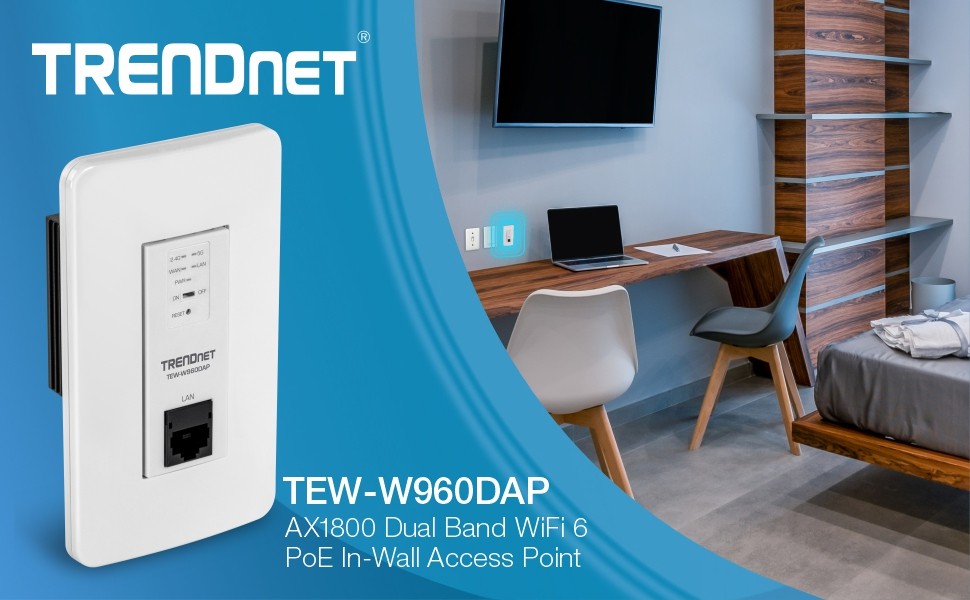

TRENDnet’s discreet AX1800 Dual Band WiFi 6 PoE In-Wall Access Point, model TEW-W960DAP, features two concurrent WiFi
bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds

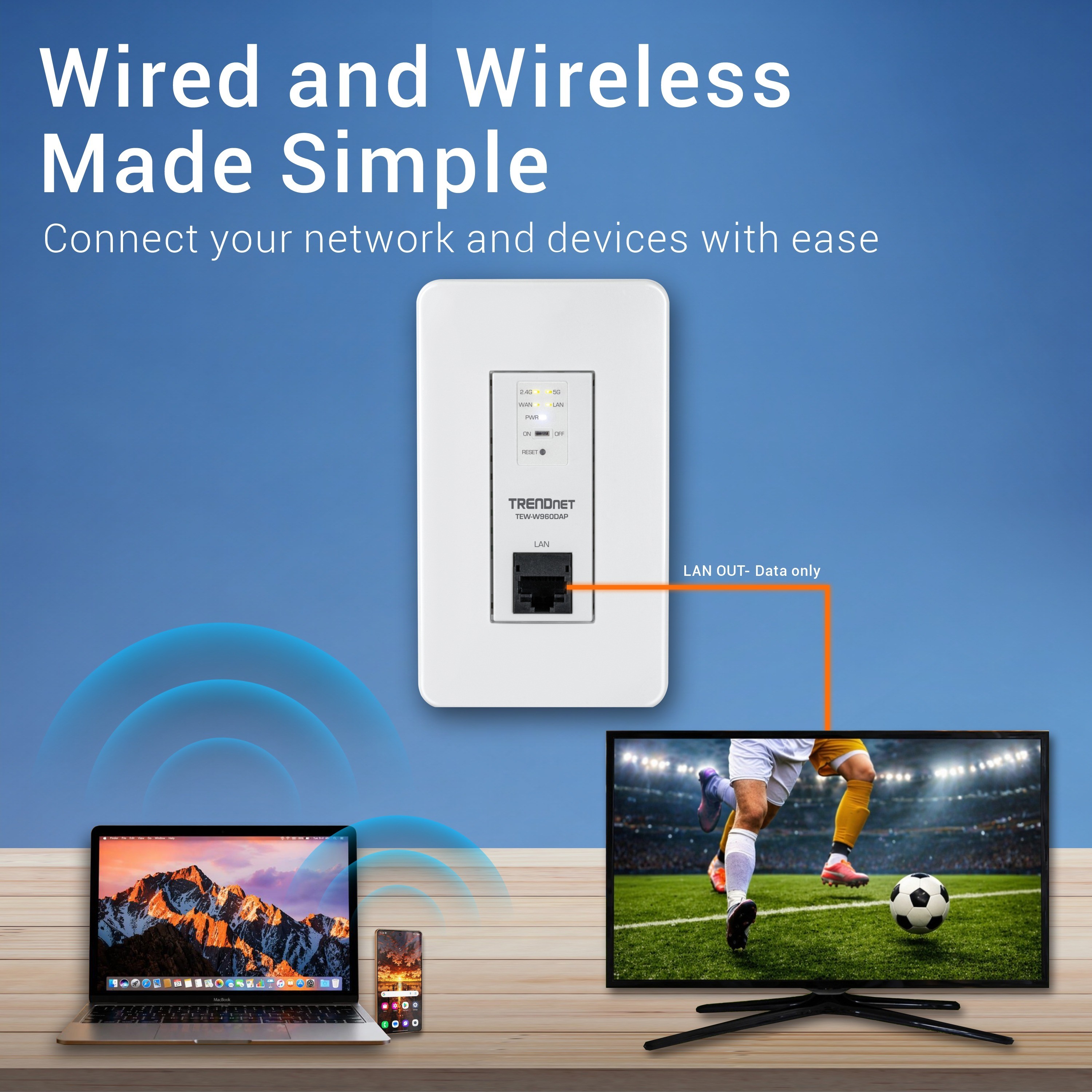

up to 1201Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The in-wall access point includes a gigabit pass-through port.

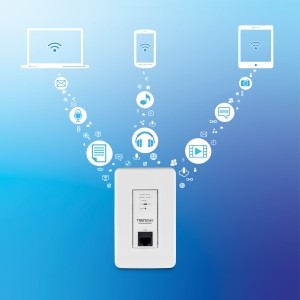

Faster speeds are possible on this in-wall WiFi AP with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology
processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

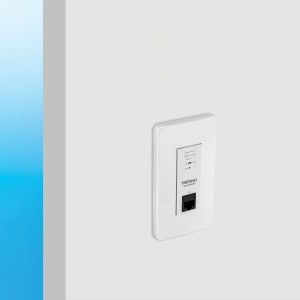

The in-wall wireless access point features access control, bandwidth control, and band steering. The discreet housing design allows the
device to be installed in a standard 1 gang box with included wall plates for easy installation.
TEW-W960DAP
Easily manage and configure TRENDnet’s AX1800 Dual Band WiFi 6 PoE In-Wall Access Point remotely with TRENDnet Hive™.
TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or
personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.

FEATURES

AX1800 WiFi 6

Two concurrent high-speed WiFi 6 bands to
maximize device networking speeds:
1201Mbps on 5GHz and 573Mbps on 2.4GHz.

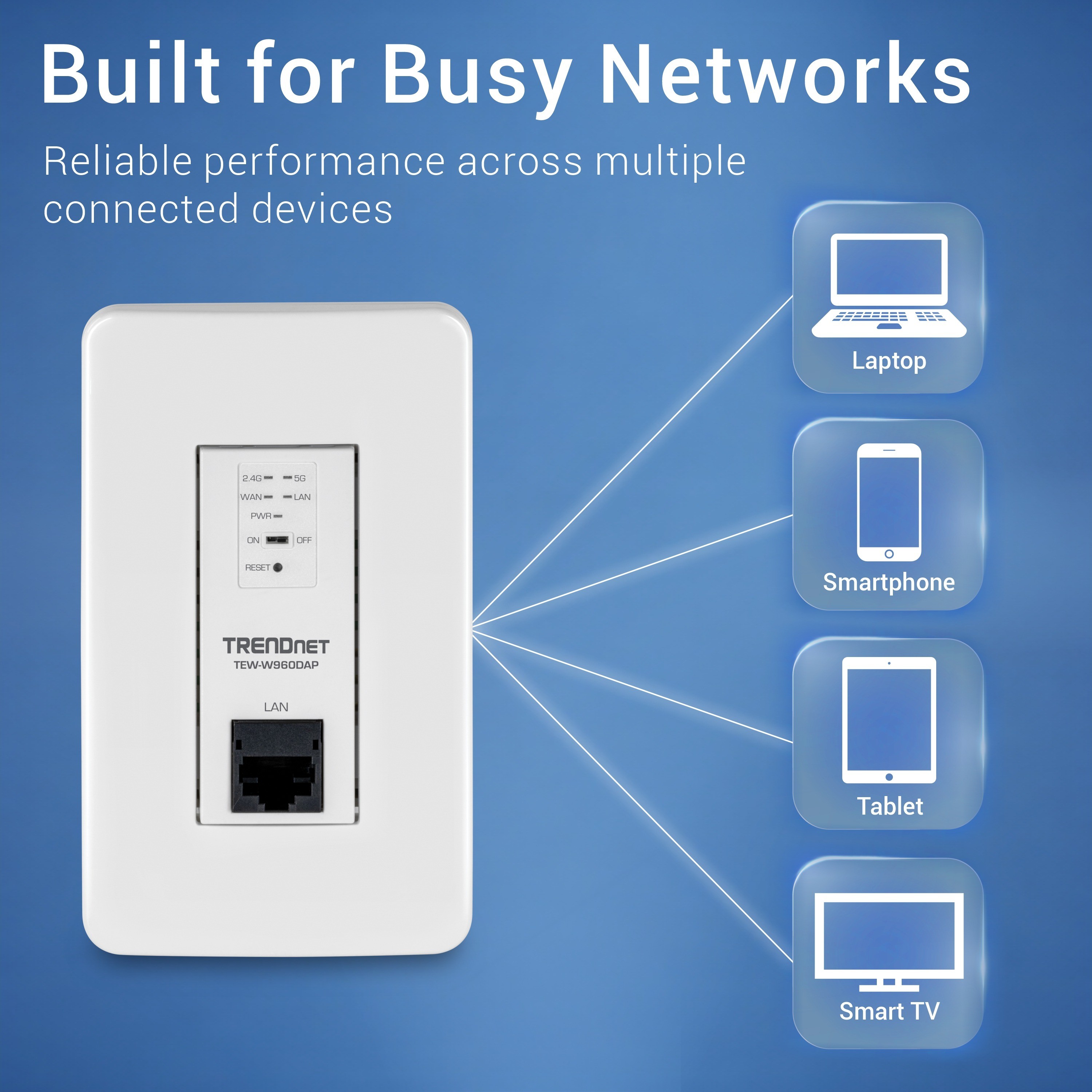

Built For Busy Environments
MU-MIMO technology processes multiple
data streams simultaneously, increasing
real-time WiFi performance when
multiple devices access the network.

In-Wall Installation
Small design allows for installation in
a standard 1 gang box for a flush APinwall installation.

Sed bibendum ullamcorper efficitur

Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.

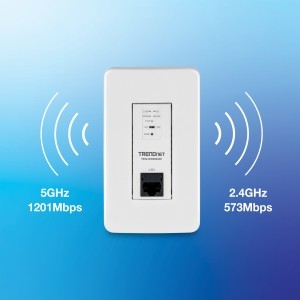

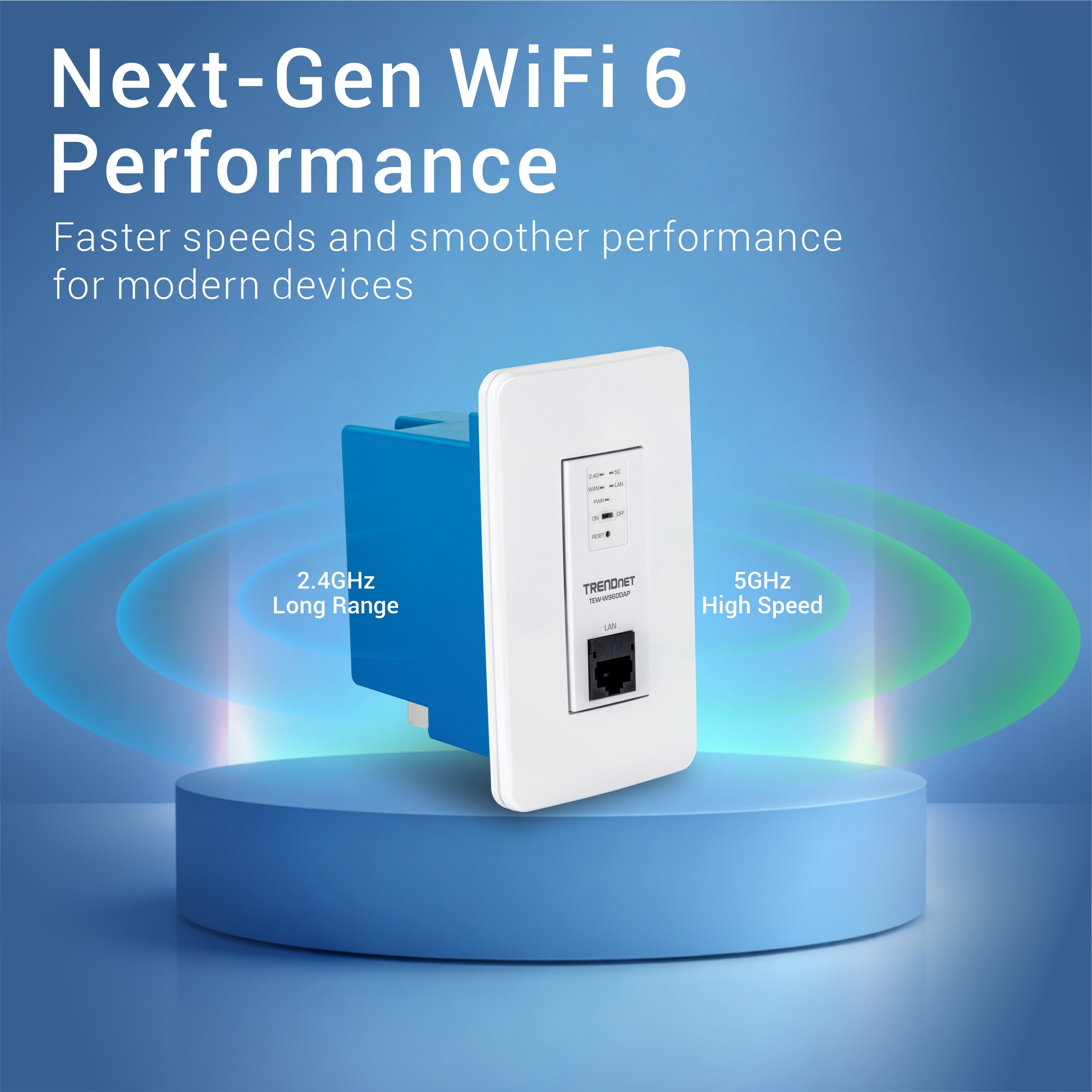

Concurrent Dual Band

AX1800: concurrent 1201Mbps on
5GHz band + 573Mbps on
2.4GHz band

Power over Ethernet (PoE)

Saves installation time and
setup costs with gigabit PoE
support

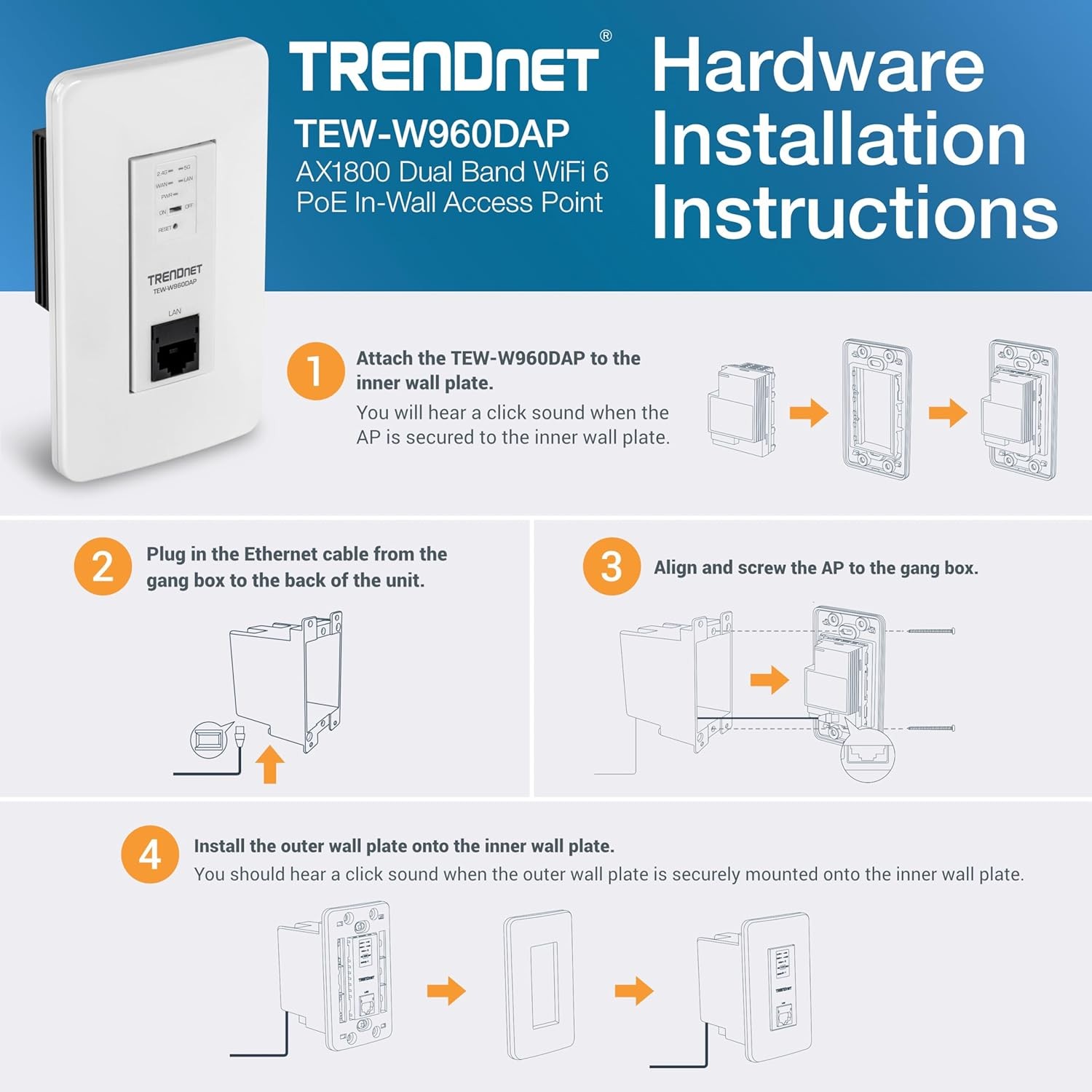

1 Gang Box

The in-wall access point is
designed to be installed in
a standard 1 gang box

MU-MIMO & OFDMAPerformance

MU-MIMO technology enables the
access point to process multiple
data streams simultaneously
along with WiFi 6 OFDMA
technology to increase real-time
WiFi performance

Band Steering

Band steering alleviates network
congestion by automatically
directing wireless devices from
the 2.4GHz band to the 5GHz
band

WiFi Traffic Shaping

Manage traffic allocation on
the WiFi 6 in-wall access point
per SSID for each band
separately

Encrypted Wireless

Support for wireless encryption
of up to WPA3

Multiple SSIDs

Create up to 8 SSIDs per band
(16 total)

Low Profile

Low-profile housing of the inwall access point design blends
into most environments

Wall Plates

Includes wall plates

LED Control

LED control reduces product
visibility by disabling the LED
indicator or turning off the LEDs
with the on/off switch

Hive Enabled (Optional)

Remotely monitor, manage,
configure, and diagnose this inwall access point via TRENDnet’s
cloud service (Additional fee
applies)

Specifications

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k** IEEE 802.11n (up to 300Mbps)* IEEE 802.11r** IEEE 802.11v IEEE 802.11ac (up to 867Mbps)* IEEE 802.11ax (up to 1201Mbps on 5GHz, up to 573Mbps on 2.4GHz)*

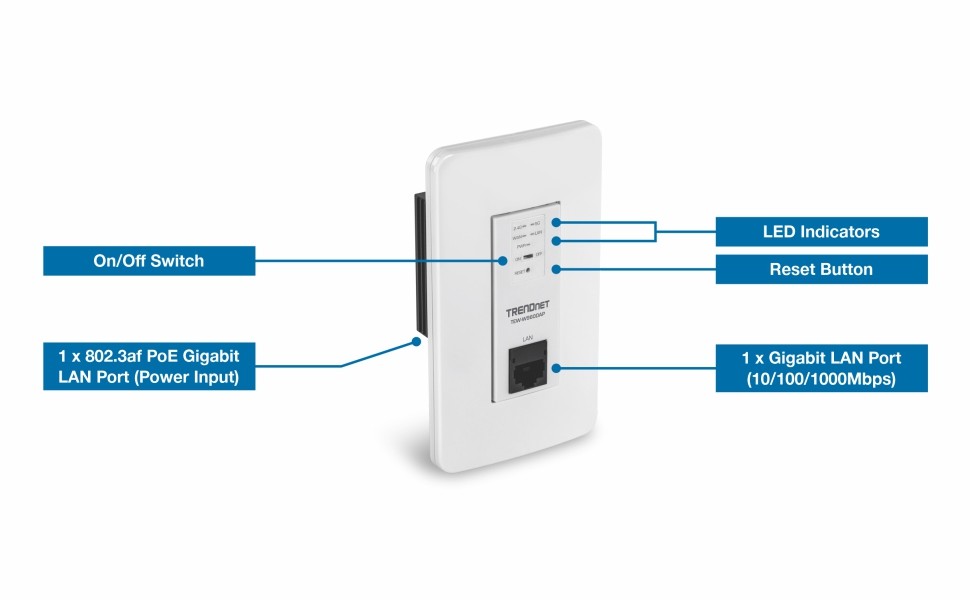

Hardware Interface	1 x 802.3af PoE Gigabit LAN port (power input) 1 x Gigabit LAN port (10/100/1000Mbps) LED indicator LED on/off switch Reset button
Features	MU-MIMO Band steering 802.1Q VLAN assignment per SSID IPv4 static/DHCP address assignment UPnP/Bonjour
Operation Modes	Access Point
Management/Monitoring	Web based management (HTTP/HTTPS) Command Line Interface (SSH) SNMP v2c/v3 Spanning Tree Protocol (STP) Event logging Ping test Traceroute Schedule WiFi radio enable/disable Ping watchdog/gateway connection monitor Reboot & scheduled automatic reboot Channel utilization scan
Hive Cloud Management***	Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app Multi-device management Provisioning through scheduled batch firmware or configuration updates for multiple switches Event/hardware network monitoring (CPU/memory utilization) Configure features such as IP address settings, WiFi settings, and LED control through cloud management
Access Control	Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal) MAC filter with scheduling Maximum client limit Client isolation
QoS	Bandwidth control per SSID
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, and 165,
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
Antenna Gain	2.4GHz: 2 x 2 dBi internal 5GHz: 2 x 4 dBi internal
Wireless Output Power	802.11b/g/n/ac/ax (2.4GHz): FCC: 13 dBm (max.) 802.11a/n/ac/ax (5GHz): FCC: 13 dBm (max.)
Receiving Sensitivity	802.11a: -93 dBm (typical) @ 54Mbps 802.11b: -98 dBm (typical) @ 11Mbps 802.11g: -94 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -94 dBm (typical) @ 300Mbps 802.11n (5 GHz): -92 dBm (typical) @ 300Mbps 802.11ac: -93 dBm (typical) @ 867Mbps 802.11ax (2.4GHz): -94 dBm (typical) @ 573Mbps 802.11ax (5GHz): -93 dBm (typical) @ 1201Mbps
Power	IEEE 802.3af Type 2 PoE PD Class 4 Max. consumption: 8.54W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	FCC
Dimensions	68 x 40 x 42mm (2.68 x 1.57 x 1.65 in.) (Unit with plate)
Weight	118g (4.16 oz.) (Unit with plate)
Warranty:	3-year

PACKAGE CONTENTS

TEW-W960DAP
Wall plates

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. For maximum performance of up to 1201Mbps use with a 1201Mbps 802.11ax 5GHz wireless adapter. For maximum performance of up to 573Mbps use with a 573Mbps 802.11ax 2.4GHz wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Feature reserved for use when device is managed by TRENDnet Hive.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
