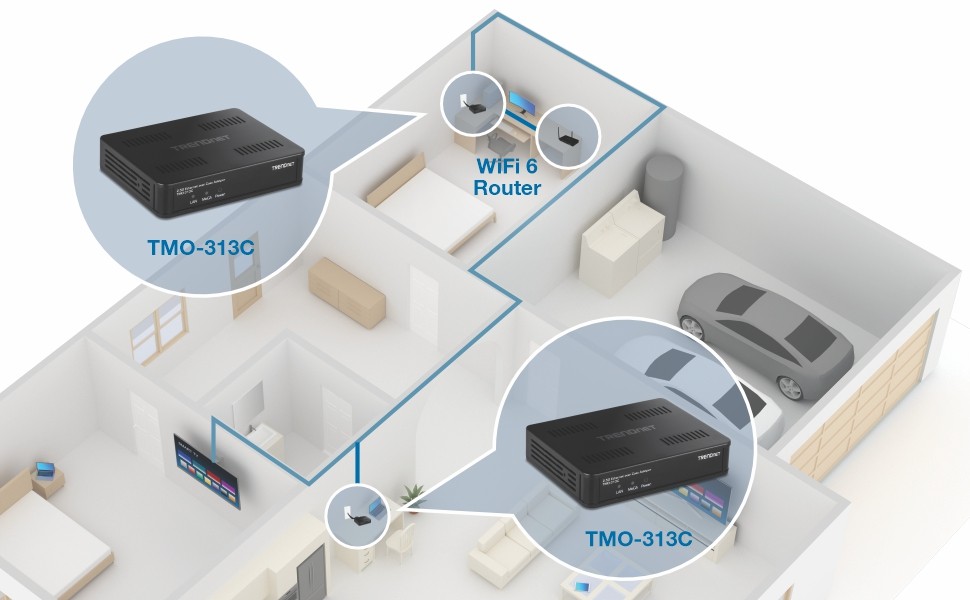

TRENDnet’s MoCA 2.5Gbps Ethernet Over Coax Adapter (2-Pack), model TMO-313C2K, uses your existing coaxial cables to extend a high-speed building-wide Triple Play network throughout your home or office. These compact coax to Ethernet adapters are designed to support MoCA 2.5 deployment for digital TV, high-speed internet, and VoIP single-access subscription service offerings. Compliant with Multimedia over Coax Alliance (MoCA 2.5) standards with improved packet error rate technology that delivers consistent voice and video bandwidth with lowered latency.

Cursus Sapien Ut

MoCA 2.5
Supports Multimedia over Coaxial
Alliance 2.5 with improved packet error
rate technology that delivers
consistent voice and 4K HD video
bandwidth with lowered latency.

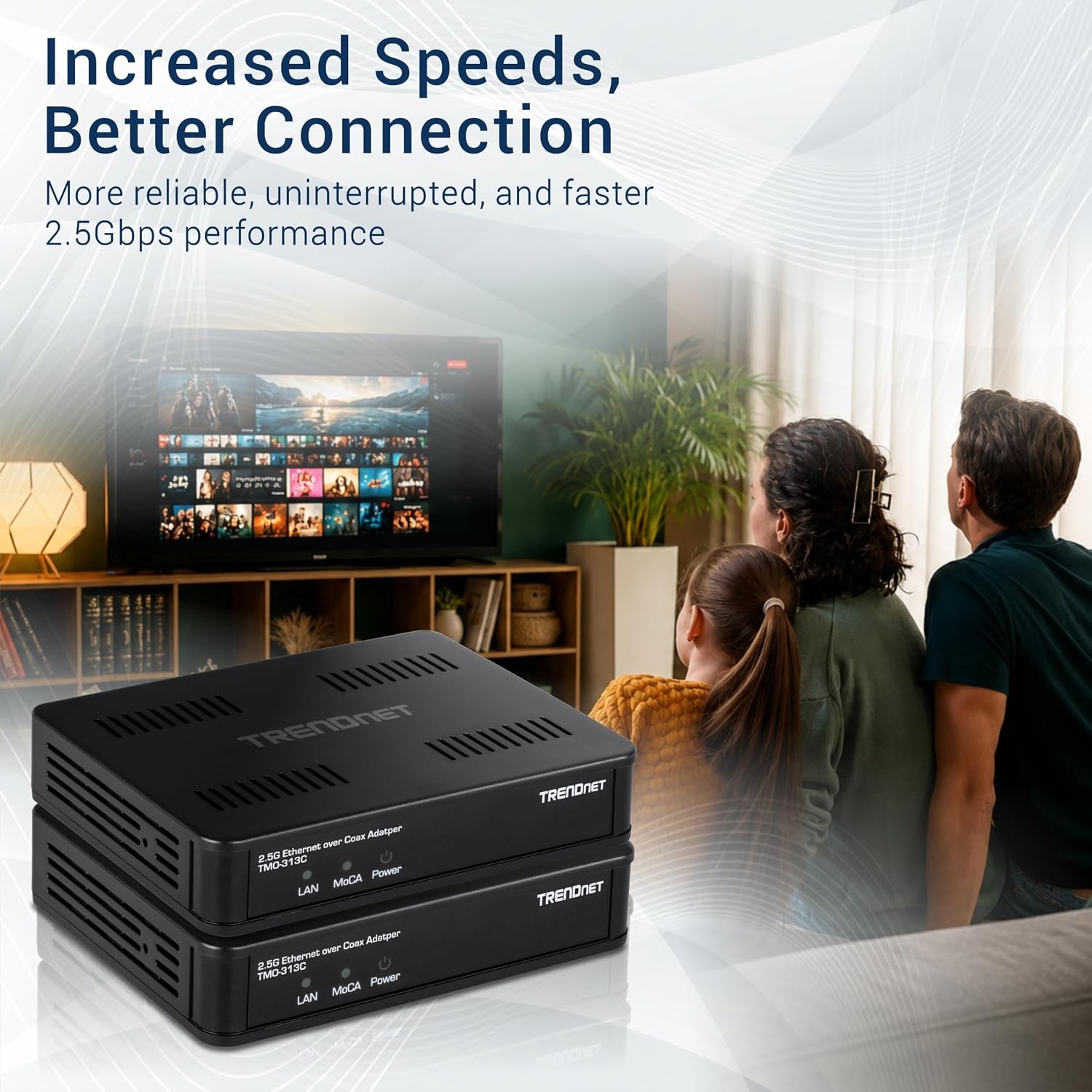

2.5G Port
Each MoCA adapter is equipped with one
2.5GBASE-T RJ45 port that provide ultra
fast speeds capable of up to 2.5Gbps.

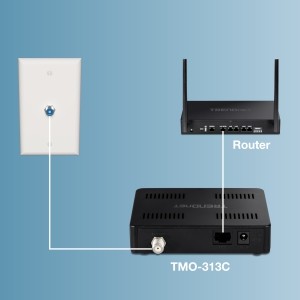

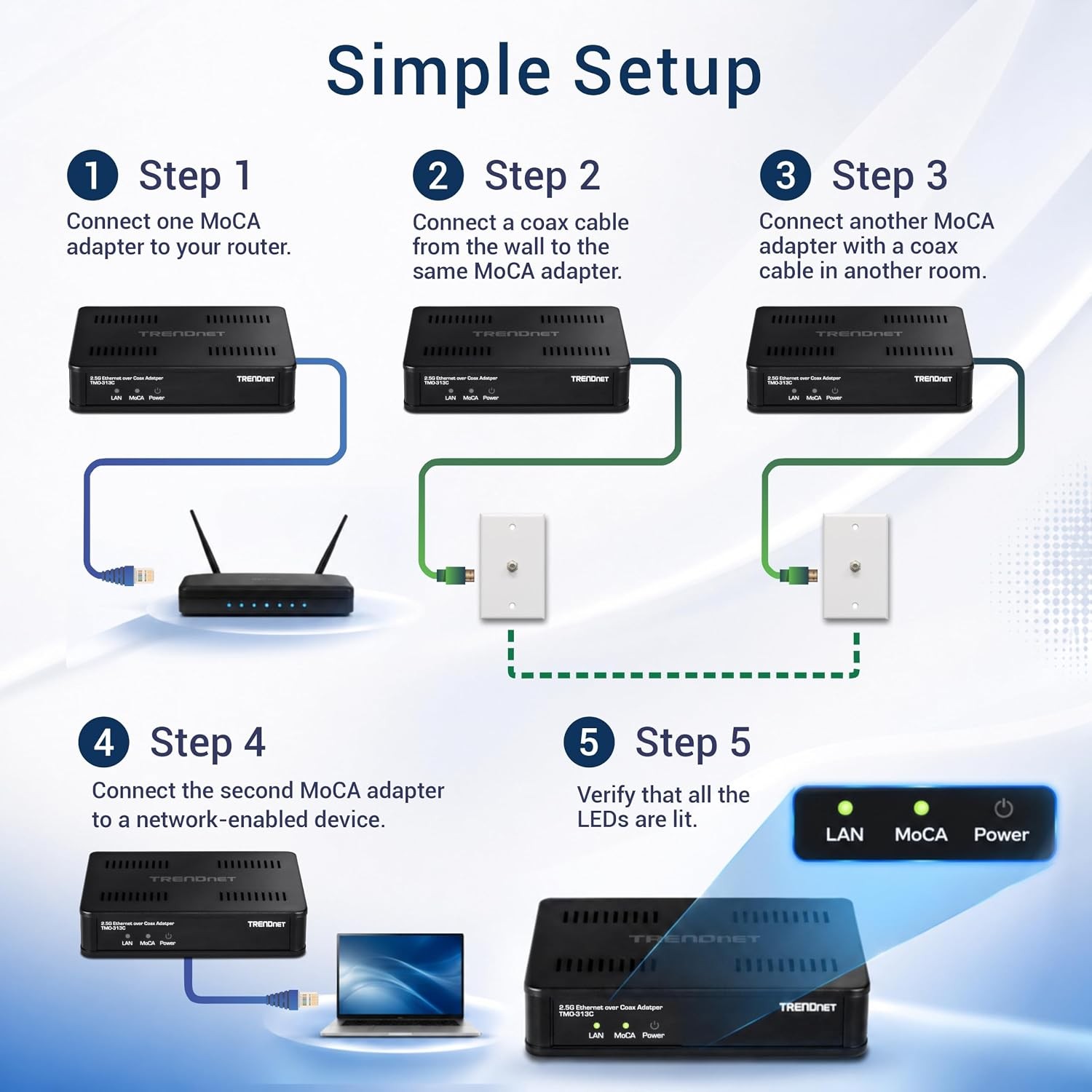

Easy Installation
No configuration needed, simply connect
the adapters to the MoCA network to
extend your network over existing
coaxial cabling.

Vivamus elit magna

MoCA 2.5

Supports Multimedia over
Coaxial Alliance 2.5 with
improved packet error rate
technology, delivering consistent
voice and 4K HD video
bandwidth with lowered latency

2.5G Port

Each coaxial cable to Ethernet
adapter is equipped with one
2.5GBASE-T RJ45 port that provide
ultra-fast speeds capable of up to
2.5Gbps

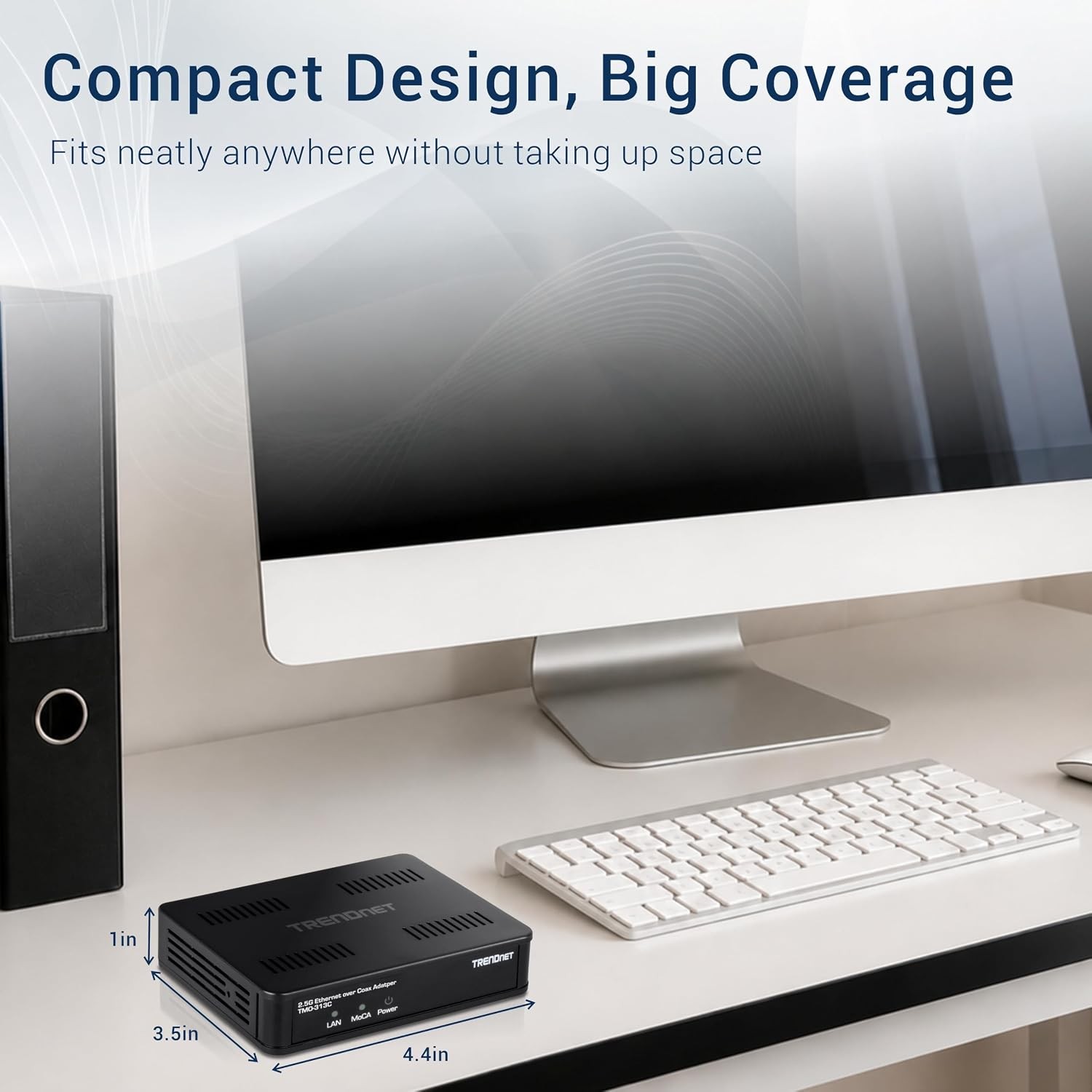

Compact Design

With a compact and lightweight
housing design, our coax to
Ethernet adapters are well-suited
for a variety of installations, such
as your desktop or entertainment
center

LED Indicators

LED indicators on the coax to
Ethernet adapters convey
MoCA, LAN, and Power status

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz MoCA 1.1/1.0 MoCA 2.0 MoCA 2.5

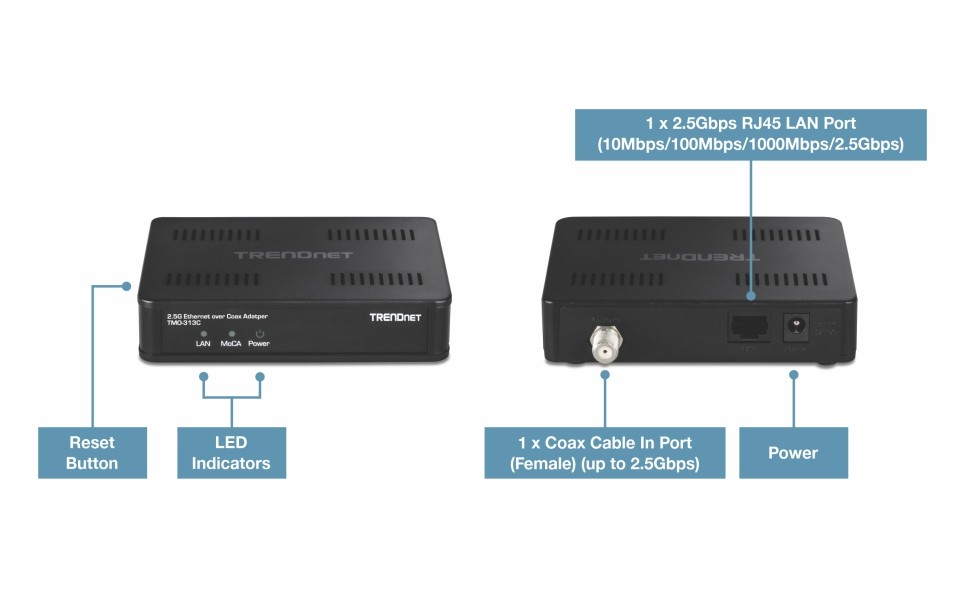

Device Interface	1 x Coax cable in port (female) (Up to 2.5Gbps) 1 x 2.5Gbps RJ45 LAN port (10Mbps/100Mbps/1000Mbps/2.5Gbps) Reset button LED indicators Power jack
Data Transfer Rate	MoCA 1.1: Single channel up to 225Mbps MoCA 2.0: Single channel up to 600Mbps MoCA 2.0: Two bonded channel up to 1.2Gbps MoCA 2.5: Five bonded channel up to 3Gbps MoCA MAC rate: 16-node single channel: up to 400Mbps 16-node 2 channel bonding: up to 800Mbps 16-node 5 channel bonding: up to 2.5Gbps

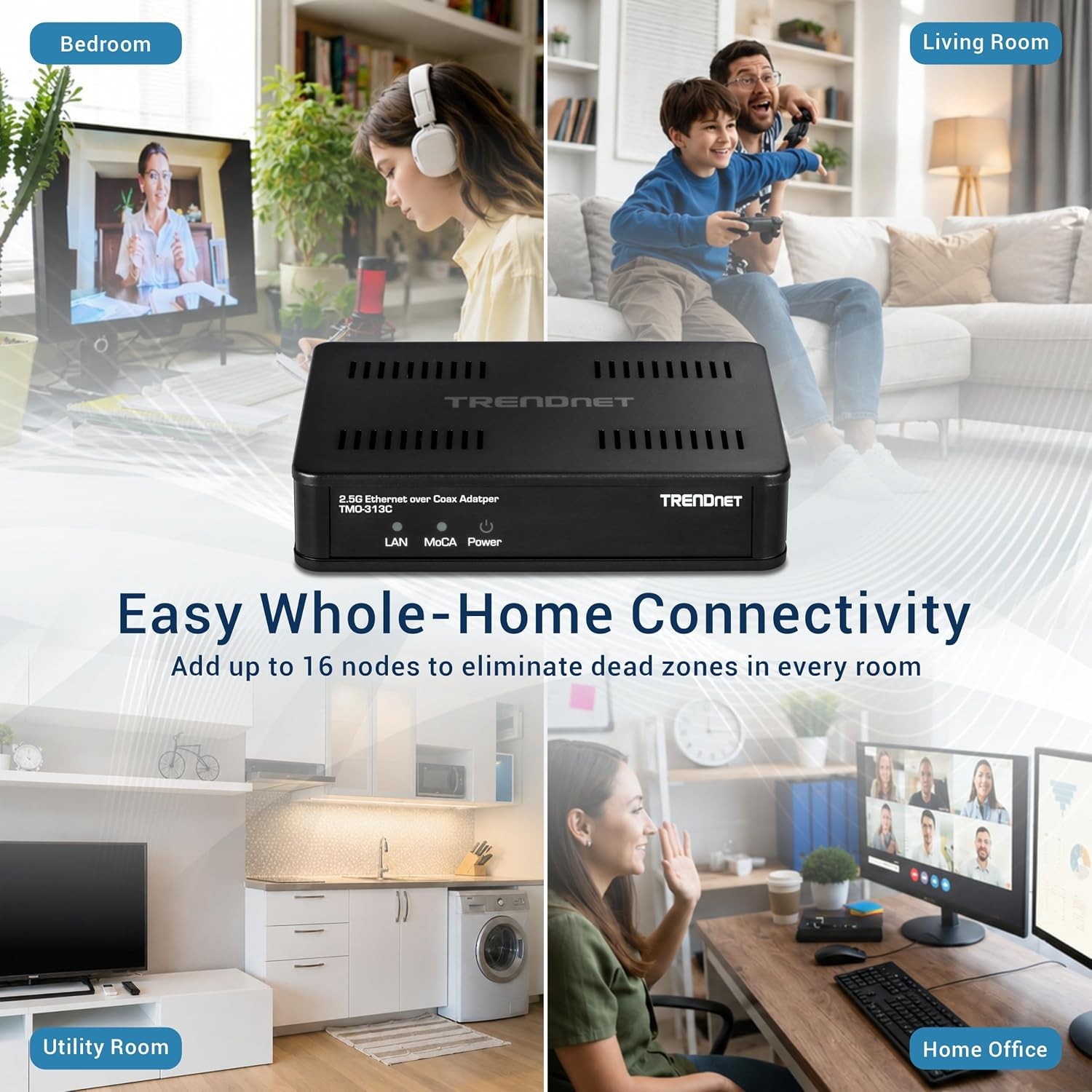

MoCA Radio	Max. 16 MoCA 1.1 or 2.0/2.5 devices Max. 8 MoCA 1.0 devices Max. transmit power: +3 dBm typical 1.1/1.0 channels: 8 with 50MHz bandwidth 2.0 channels: 10 with 100MHz single channel, 225Mhz bonded channel 2.5 channels: 5 with 100MHz bonded channel 2.0/2.5 Edge-to-edge frequency: 1125-1675MHz Default channel: 1150MHz

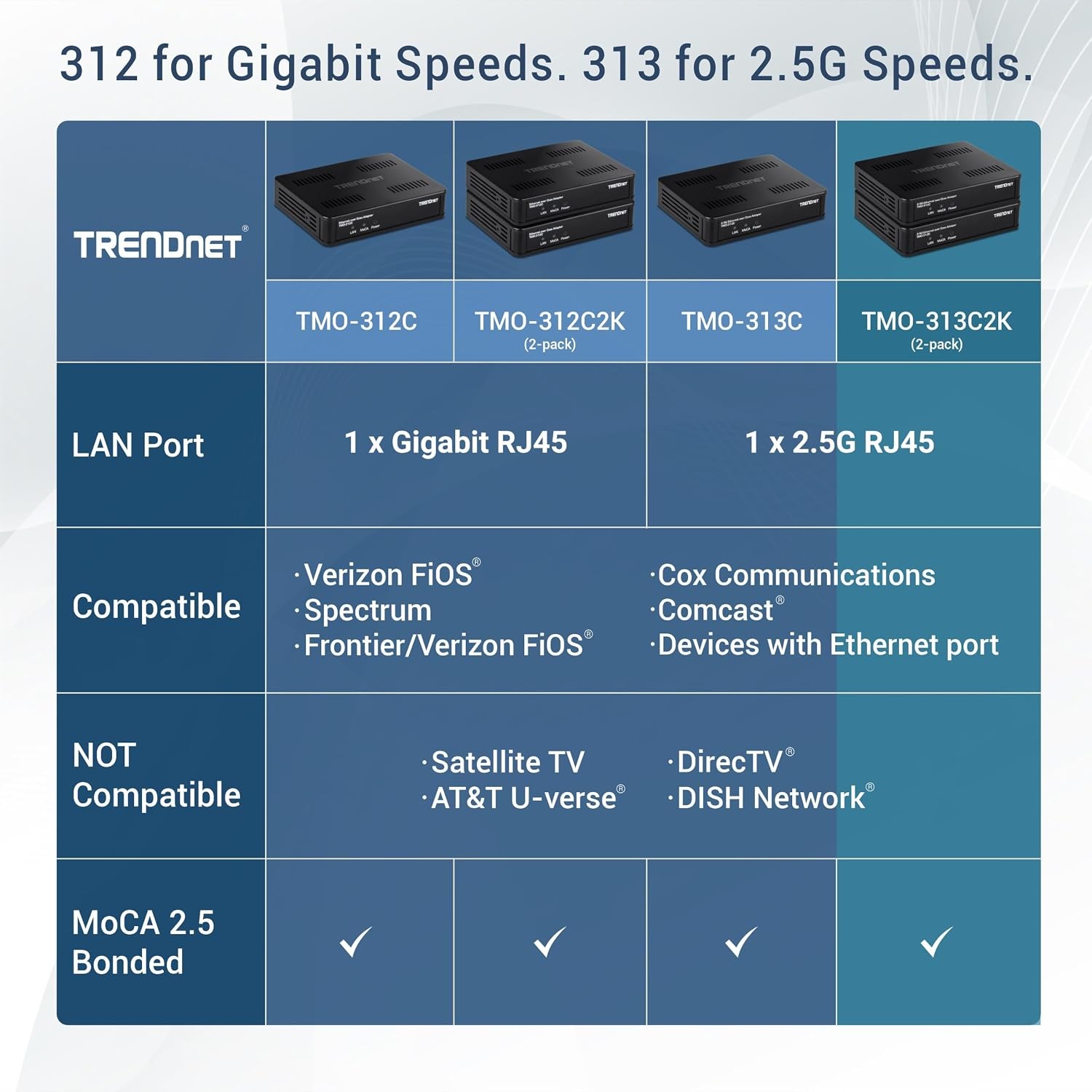

Compatible	Frontier/Verizon FiOS Spectrum Cox Communications Comcast Devices with Ethernet port
Not Compatible	DirecTV DISH Network Satellite TV AT&T U-verse
Power	Input: 100 – 240V AC, 50/60Hz, 0.5A Output: 12V DC, 1A external power adapter Max. consumption: 12W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 85% non-condensing
Dimensions (per unit)	112 x 88 x 25mm (4.4 x 3.5 x 1 in.)
Weight (per unit)	116g (4 oz.)
Certifications	FCC
Warranty	3-year

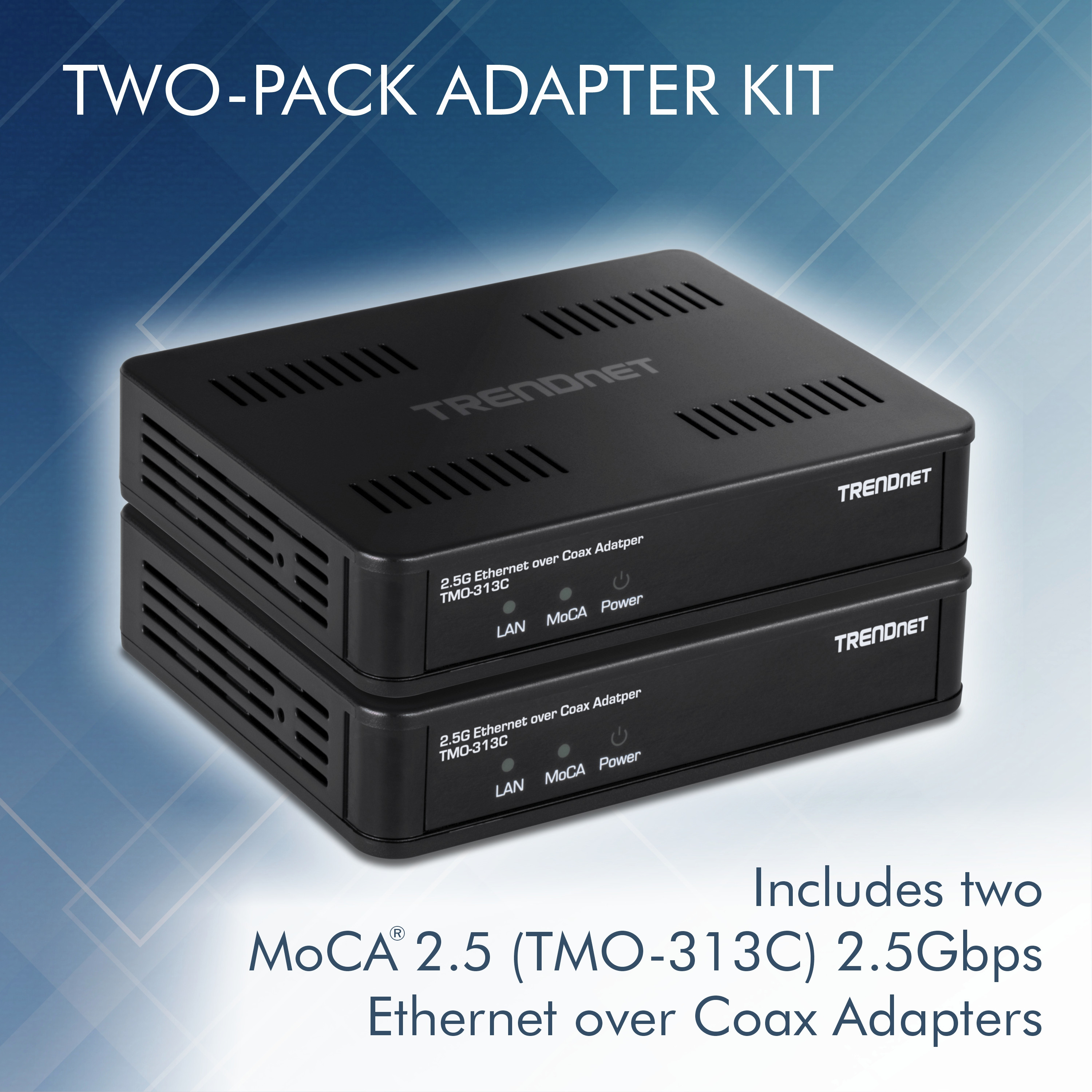

PACKAGE CONTENTS

2 x TMO-313C
2 x Power adapter (12V, 1A)

** 2.5Gbps is the maximum theoretical MoCA 2.5 data rate when connecting bonded MoCA 2.5 devices. Data throughput may vary based on coax wire conditions or quality.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
