Key Features
Software and Communication Ports

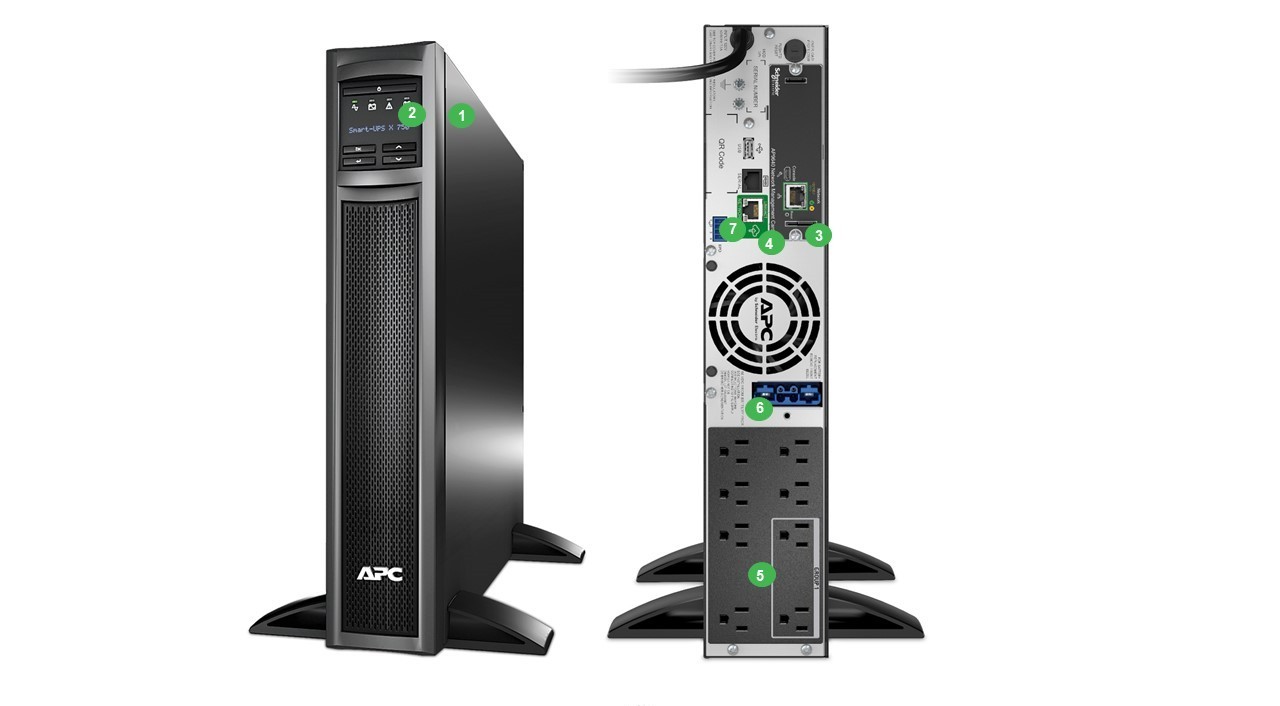

Hot Spots

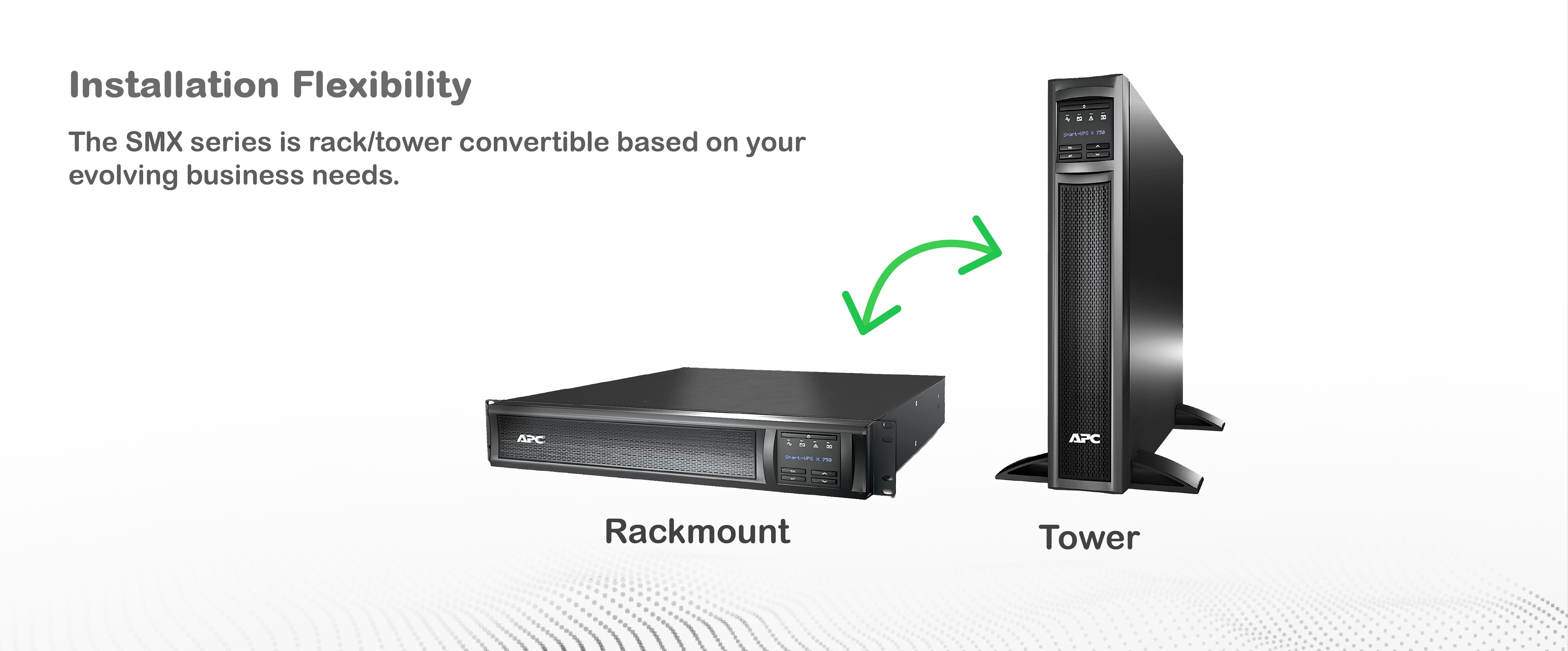

1) 2U design with flexible installation
2U design saves valuable space for IT. Rackmount and tower convertible model.
2) Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

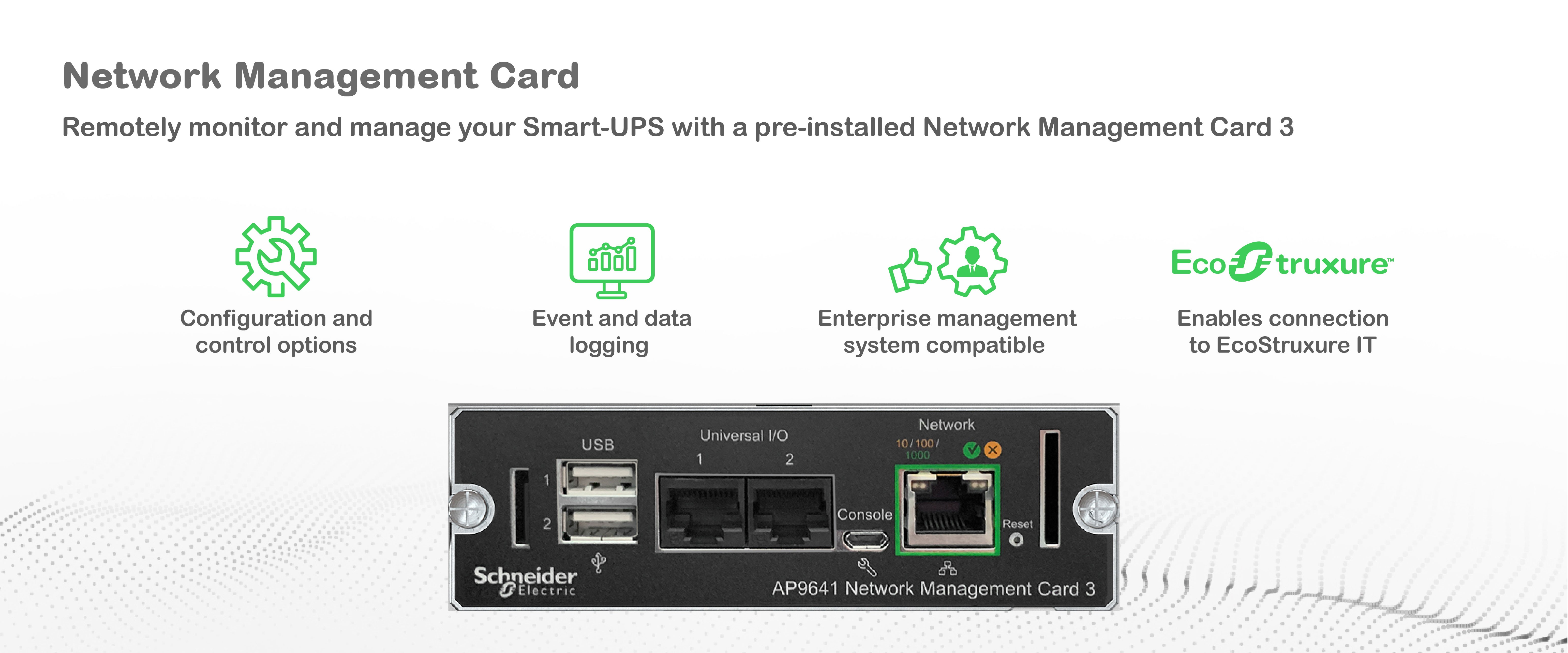

3) Pre-installed Network Management Card
Pre-installed Network Management Card (NMC) enables essential and secure remote monitoring and management of your UPS.
4) SmartConnect Ethernet Port
Built-in secure cloud monitoring with the SmartConnect Ethernet Port.

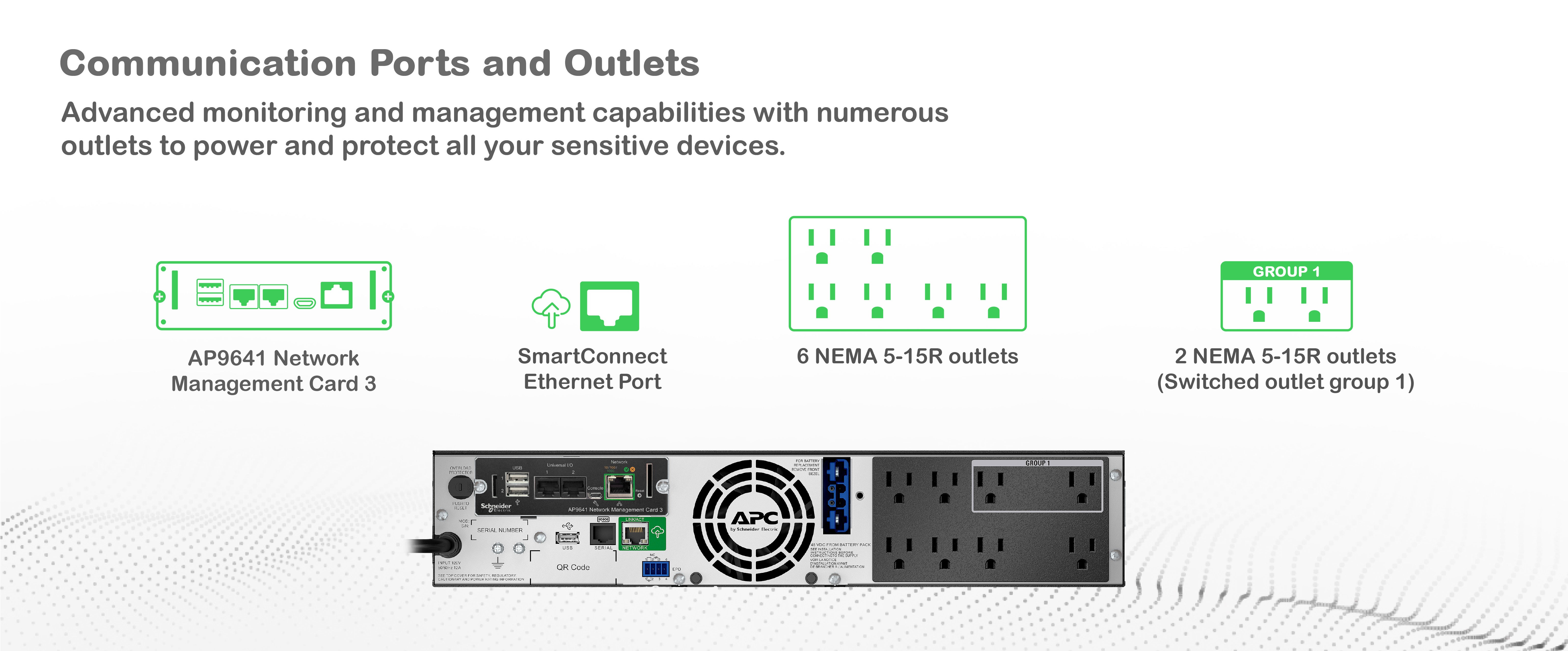

5) 8 outlets in 2U
8 NEMA 5-15R outlets, including 1 switched outlet group

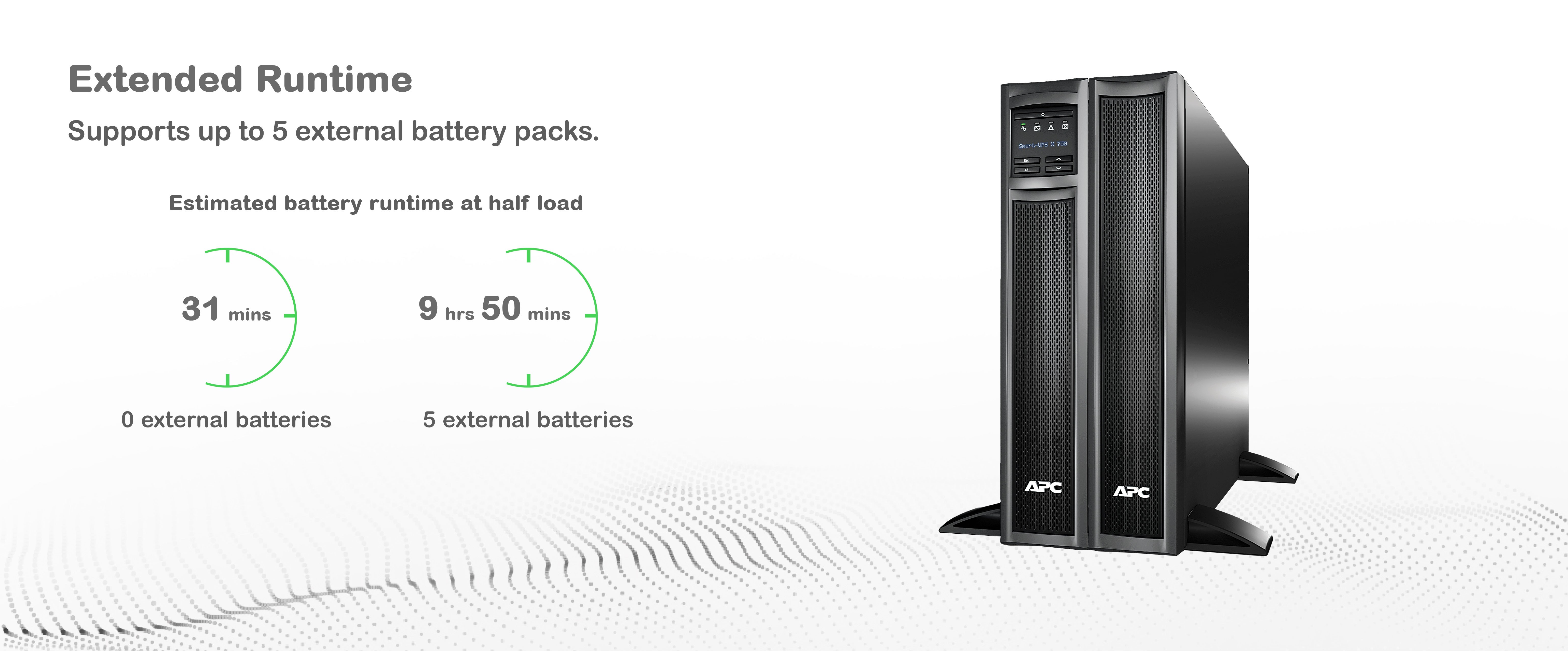

6) Extended runtime option
The UPS can support up to 5 external battery packs.
7) Emergency Power Off
Immediately turns off UPS and disconnects power to all connected equipment
FAQ
Can I add external battery packs? How many?
Yes, SMX750CNC supports up to 5 SMX48RMBP2U battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.
What do switched outlet groups allow me to do?
Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.
Do all models come with a preinstalled Network Management Card?
Select models with an "NC" suffix come with the network management card preinstalled.
How does the 'green' mode operating mode increase efficiency?
APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.
