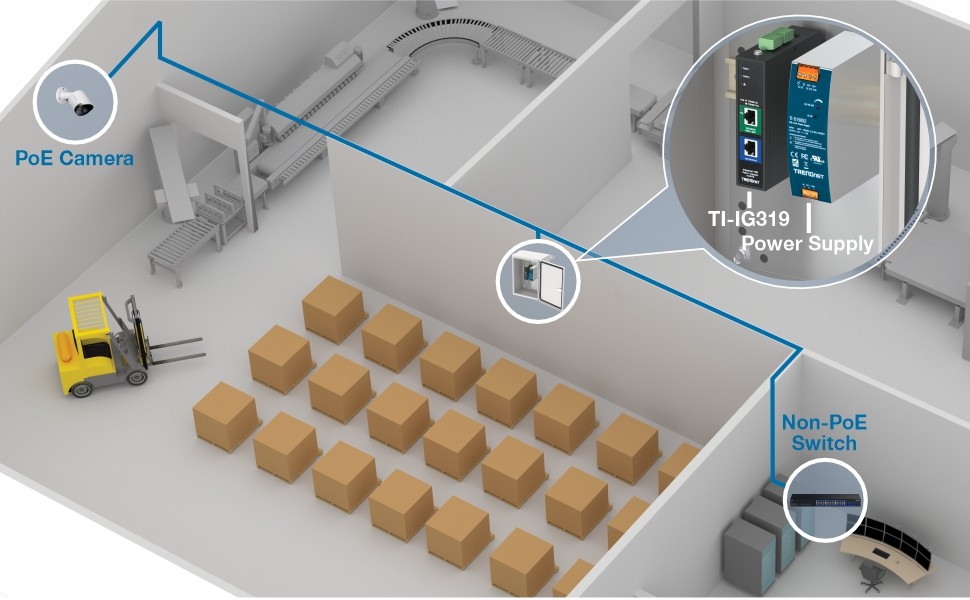

TRENDnet’s Industrial 10G PoE++ Injector, model TI-IG319, allows users to add PoE++ power to a non-PoE switch. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE/PoE+/PoE++ device. This multi-gig industrial PoE++ injector supplies up to 120W of power to PoE devices. The fanless design conveniently eliminates operating noise and lowers energy consumption. The industrial 10G injector is equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a temperature range of -40° – 75° C (-40° – 16758° F) for extreme industrial environments.

FEATURES

PoE++

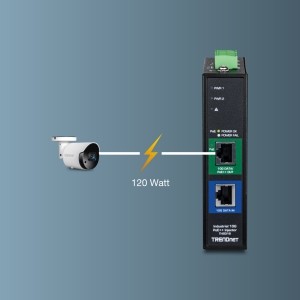

This industrial 10G PoE++ injector supplies up to 120W of power to a PoE devices.

10G Ports

Features a high-speed 10G port (data in) and a high-speed 10G PoE++ port (data + PoE out).

Industrial Design

IP50 rated metal enclosure with a high degree of vibration and shock resistance, and a extreme operating temperature range of -40° – 75° C (-40° – 167° F).

PoE++

This industrial 10G PoE++ injector supplies up to 120W of power to PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

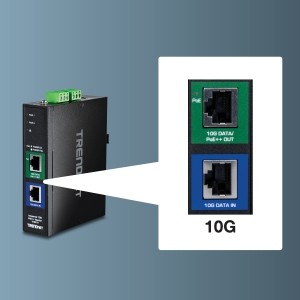

10G Ports

1 x 10G port (data in) and 1 x 10G PoE++ ports (data + PoE out)

PoE Distance

Provides a PoE++ network connection up to 100m (328 ft.)

LED Indicators

LED indicators on the industrial 10G PoE++ injector conveys power, alarm, and PoE connectivity

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the industrial 10G PoE++ injector conveniently eliminates operating noise and lowers energy consumption

Housing Design

The industrial 10G PoE++ injector features a compact and sturdy metal housing for installation flexibility

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3an IEEE 802.3at IEEE 802.3bt IEEE 802.3bz

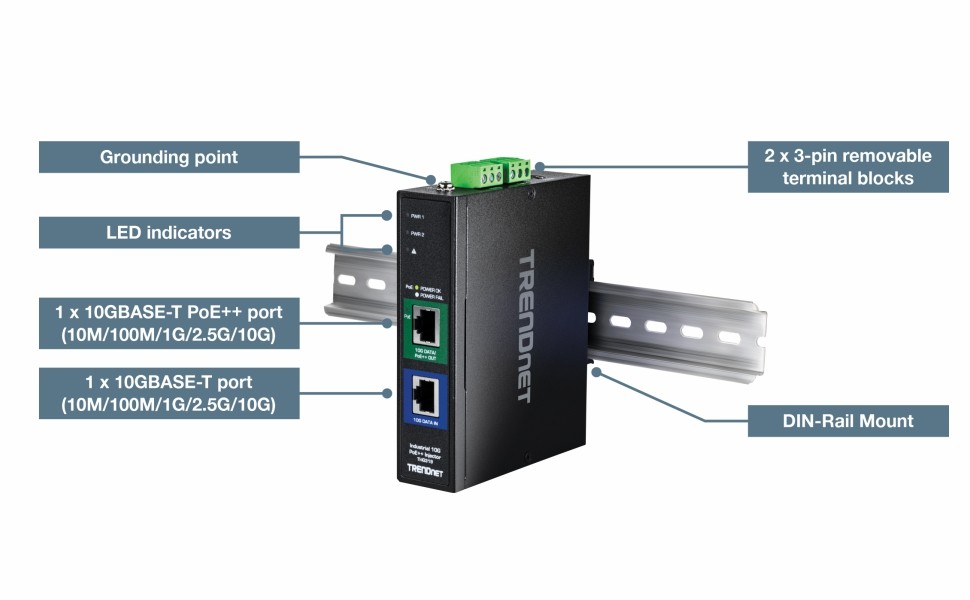

Device Interface	1 x 10GBASE-T port (10M/100M/1G/2.5G/10G) 1 x 10GBASE-T PoE++ port (10M/100M/1G/2.5G/10G) 2 x 3-pin removable terminal block LED indicators
Power	Input: 48 – 57V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 8.3W @ 57V DC (without PD connected)
PoE	PoE budget: 120W Pin 1, 2, 7, 8 for power – and pin 3, 4, 5, 6 for power +
Terminal Block	2 x 3-pin (power, ground, and alarm relay) Alarm Relay: 1A @ 24V DC Wire range: 0.34mm2 to 2.5mm2 Solid wire (AWG): 14-22 Stranded wire (AWG): 14-22 Torque: 5 lb. – In / 0.395Nm Wire strip length: 7-8mm
MTBF	3,000,000 hours @ 25° C
Housing	IP50 metal case DIN-rail mount Wall mount Grounding point Contact 6kV/Air 8kV ESD protection 6 kV RJ45 surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	120 x 98 x 30mm (4.72 x 3.85 x 1.18 in.)
Weight	406g (14.3 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-IG319
Removable terminal blocks
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
