OVERVIEW

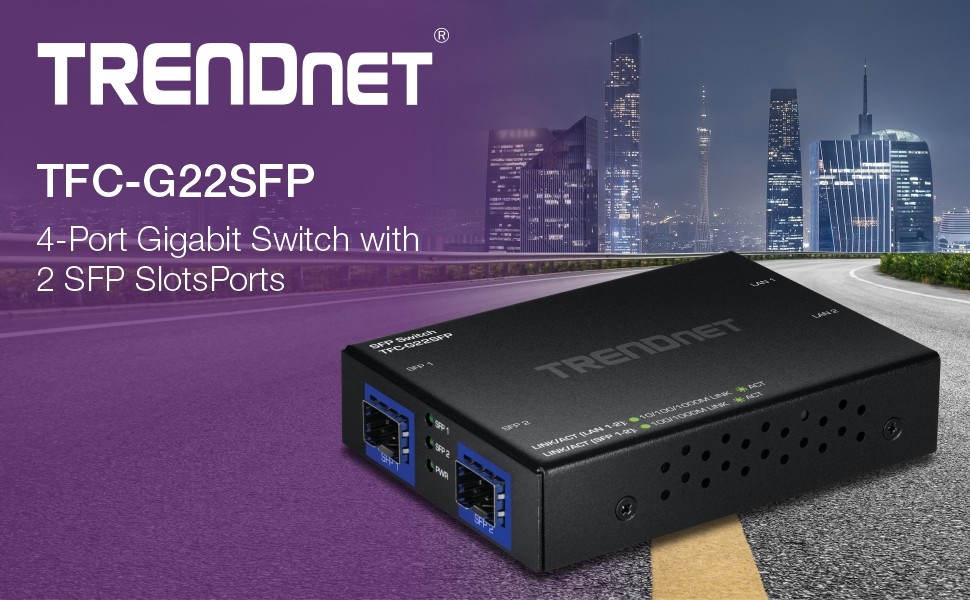

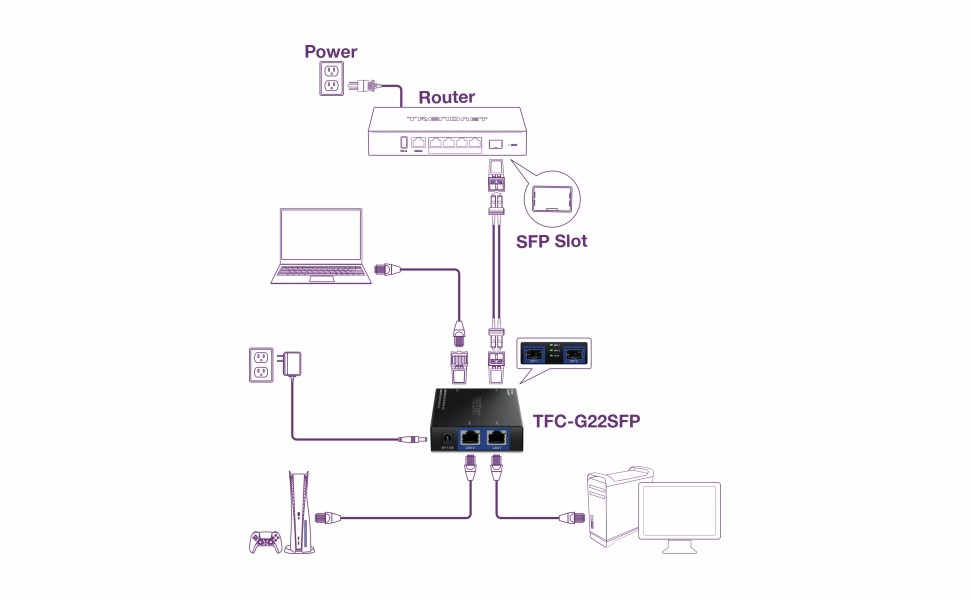

TRENDnet’s compact 4-Port Gigabit Switch with SFP Ports, model TFC-G22SFP, provides high-bandwidth performance, ease ofuse, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 8Gbps with full-duplex mode. This 4-port switch with SFP ports is ideal to network devices at long distances over fiber connection with its two SFP ports. The wall mountable, fanless design provides installation flexibility

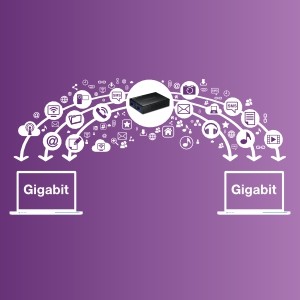

Gigabit Speeds

Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

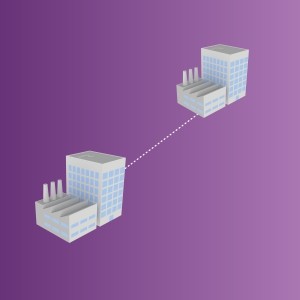

Fiber

ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Donec nec massa quam.

Compact

Compact and lightweight metal housing design provides greater installation flexibility.

Easy Setup

Simply power up the SFP Ethernet switch and plug in connected devices

Gigabit Ports

This 4-port switch with SFP ports is equipped with two gigabit Ethernet ports and two gigabit SFP ports

Switching Capacity

8Gbps switching capacity

Jumbo Frame

Send larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing of the gigabit switch provides greater installation flexibility

LED Indicators

LED indicators on this Ethernet switch with fiber ports convey port status

SFP Support

The 4-port switch with SFP ports is compatible with multi-mode and single mode transmissions

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3az

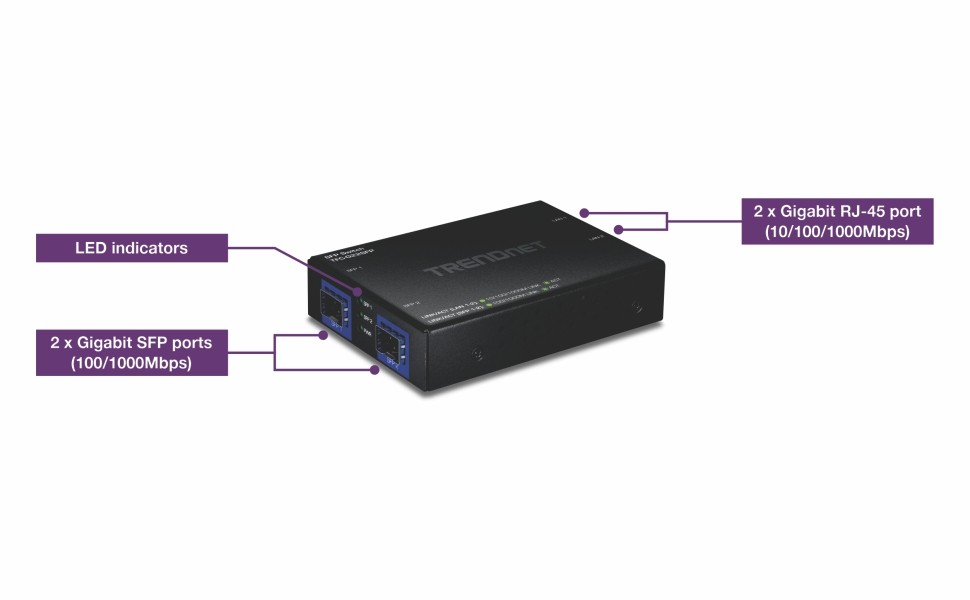

Device Interface	2 x Gigabit RJ45 ports (10/100/1000Mbps) 2 x Gigabit SFP ports (10/100/1000Mbps) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 100Mbps SFP: 200Mbps (full duplex) Gigabit SFP: 2Gbps (full duplex)
Performance	Switching Capacity: 8Gbps RAM Buffer: 4MB Jumbo Frames: 9KB MAC Address Table: 8K entries Forwarding Rate: 1.488Mpps (64-byte packet size)
Power	Input: 100 – 240V AC, 50/60 Hz Output: 5V DC, 1.5A Max. Consumption: 3.3W
Fan/Acoustics	Fanless design
MTBF	770,000 hours @ 25° C
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	101 x 75 x 22.6mm (3.97 x 2.95 x 0.89 in.)
Weight	203.5g (0.45 lbs)
Certifications	CE FCC LVD
Warranty	3-year

PACKAGE CONTENTS

TFC-G22SFP
Power adapter (5V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
