TRENDnet’s Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W), model TI-OBF711, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. When paired with TRENDnet’s TEG-10GBS20, this outdoor media converter can transmit data up to a range of 20km (12.42 mi.). With an operating temperature range of -40°– 75° C (-40° – 167° F), the industrial outdoor media converter features a hardened IP67 rated metal housing suitable for tough, industrial environments. The outdoor PoE++ media converter’s rugged design also provides protection from shock, freefall, and vibration.

FEATURES

Network Applications

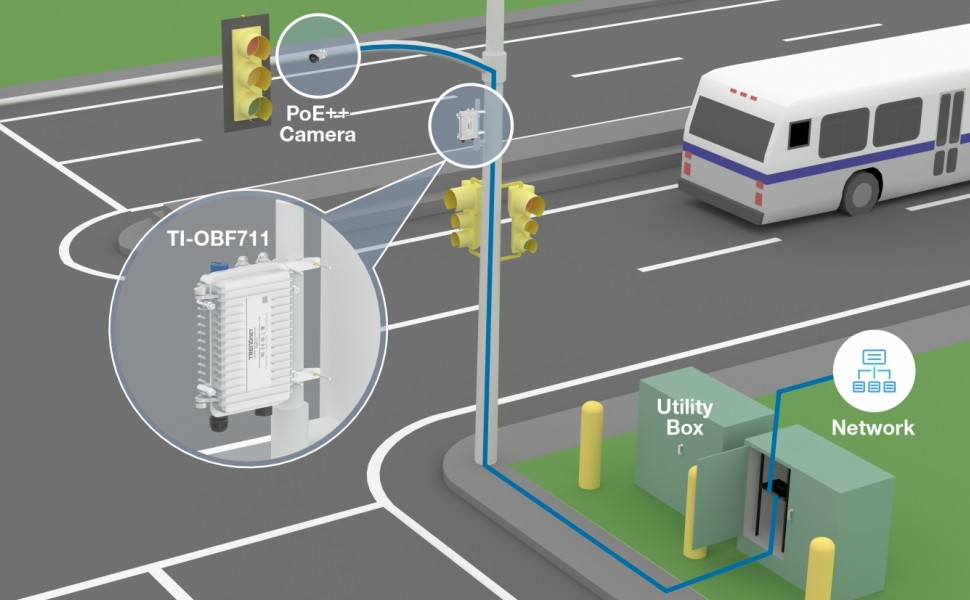

Network devices outdoors for surveillance, transportation, and corporate applications.

PoE++ Output

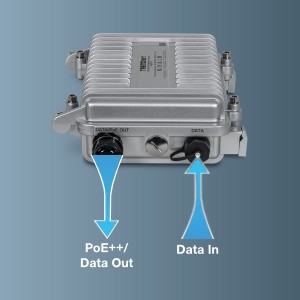

Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.

Outdoor Design

Hardened IP67 outdoor media converter for industrial networking environments within a -40°– 75° C (-40° – 167° F) operating temperature range.

Outdoor Protection

This outdoor SFP+ media converter is IP67 rated for dust tight protection, and immersion in water up to 1m (3.28 ft.) for 30 minutes

Surge Protection

Provides up to 6kV RJ45 Ethernet surge protection

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Pole Mount

The outdoor SFP+ media converter includes pole mount hardware

Grounding Point

The industrial PoE++ outdoor media converter features a grounding point to protect equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3af IEEE 802.3at IEEE 802.3bt

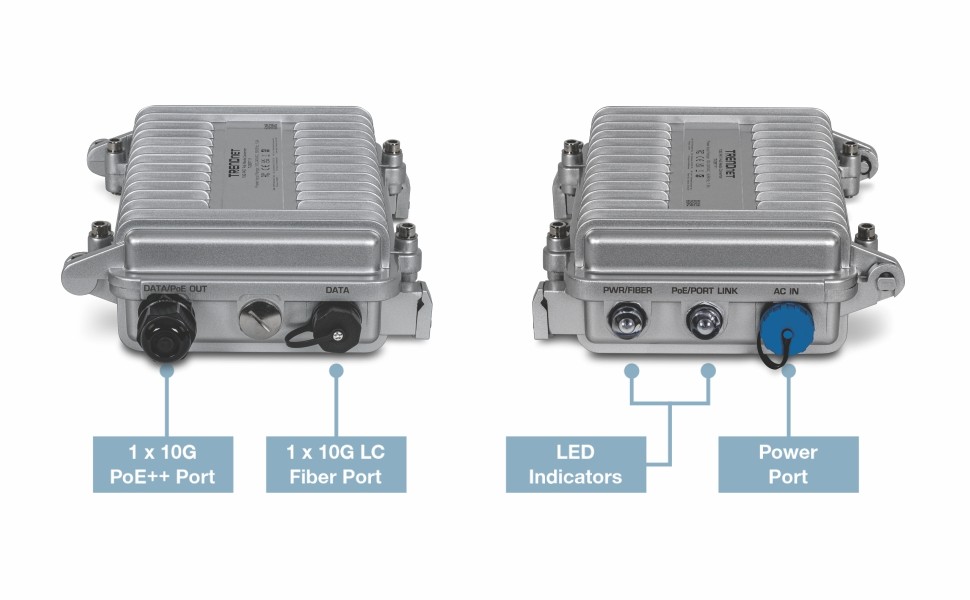

Device Interface	1 x 10GBASE-T PoE++ RJ45 Auto-MDIX port (1G / 10Gbps) 1 x LC duplex single mode fiber optic port (1G / 10Gbps) LED indicators
Performance	Data RAM Buffer: 1MB Switching Capacity: 20Gbps MAC Address Table: 4K entries Jumbo Frame: 128KB Forwarding rate: 29.76Mpps (64-byte packet size)
Fiber	Media: 10Gbps Single-mode LC fiber optic connector Cable: SM G.652 Wavelength: 1310 nm Optical Output Power (dBm): -5 ~ 0 Optical Input Power (dBm): -14.4 Power Budget: 9.4 dBm Distance: up to 20km (12.42 mi.) (dependent on SFP)
PoE	PoE budget: 95W Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power + Over current protection Short circuit protection
Power	Input: 100 – 240V AC, 50/60Hz, 3-pin power connector Max. consumption: 7.33W (without PD connected)
MTBF	760,000 hours @ 25° C
Enclosure	IP67 metal case Pole mountable 6kV AC surge protection 6kV RJ45 surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	235 x 154 x 75mm (9.25 x 6.06 x 2.95 in.)
Weight	1.83kg (4.03 lbs.)
Certifications	CE FCC ETL LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-OBF711
3-pin power cord (1.5m / 5 ft.)
Pole mount hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
