OVERVIEW

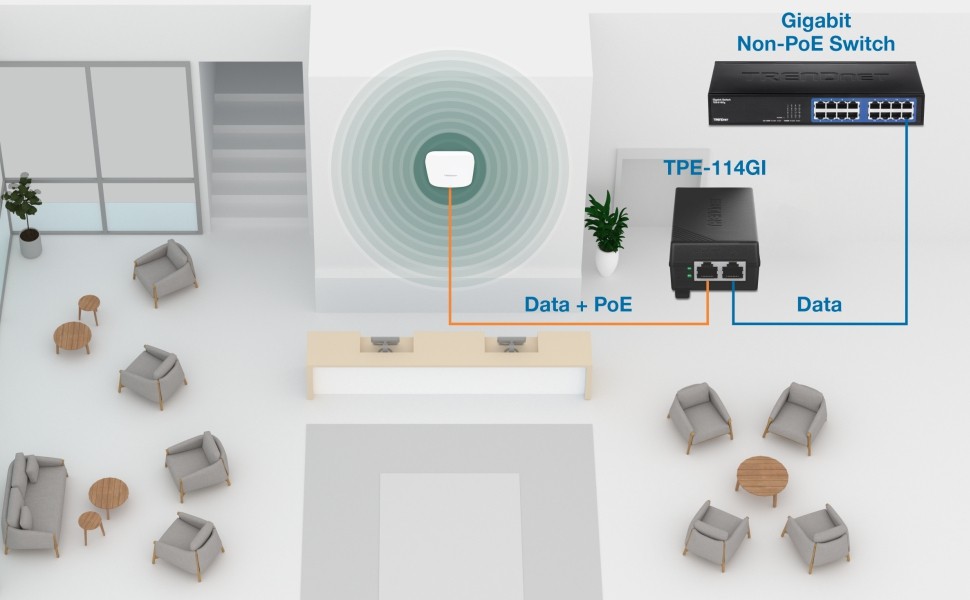

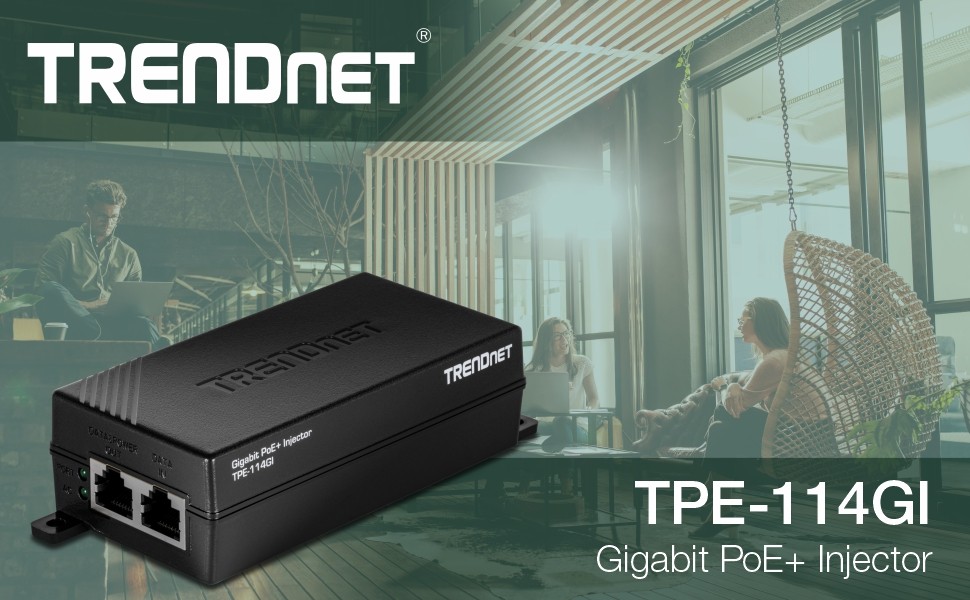

TRENDnet's Gigabit PoE+ Injector, model TPE-114GI, combines electrical power with a gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the PoE+ injector to a non-PoE gigabit switch and run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. Network PoE devices, such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

FEATURES

PoE+

Gigabit PoE+ injector supplies a PoE device with up to PoE+ (30W) power.

Installation Flexibility

Wall-mount design enclosure accommodates most installations scenarios.

Gigabit

Equipped with a gigabit RJ45 port, providing gigabit networking speeds over existing Ethernet cables.

PoE+

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

Auto-Sensing Technology

Featuring auto-sensing technology,
the PoE+ power injector
conveniently delivers the correct
wattage needed to power your
PoE devices

Easy Installation

Simply connect the PoE+ injector
to your switch and PoE device – no
configuration needed

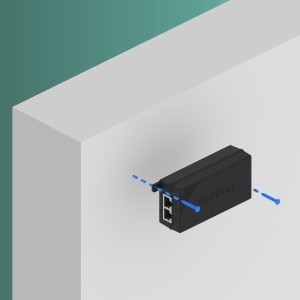

Installation Flexibility

Wall-mount design accommodates
most installations scenarios

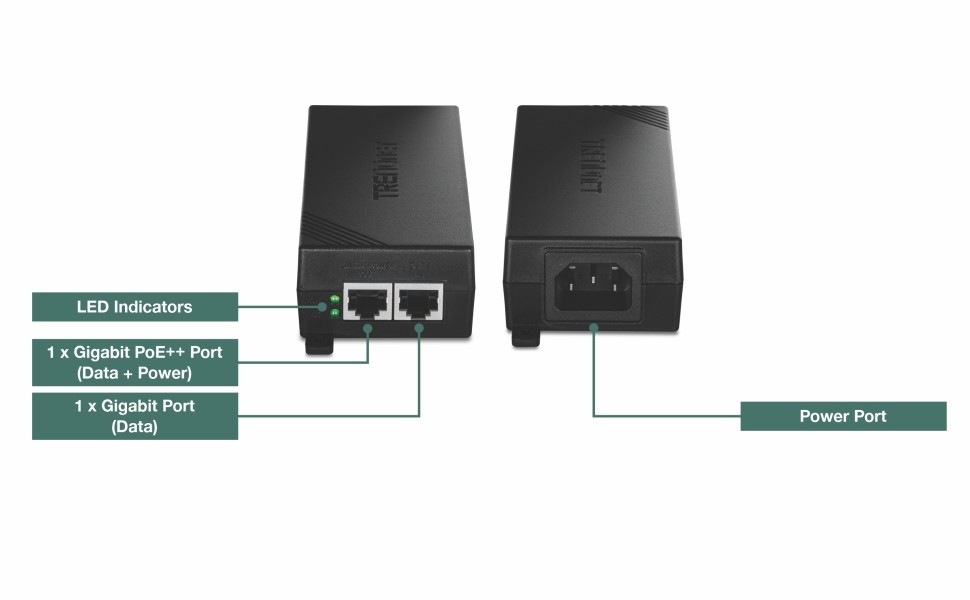

Gigabit Ports
1 x Gigabit port (data) and 1 x
Gigabit PoE port (data +
power)

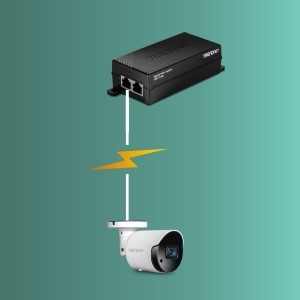

PoE Distance
Provides a PoE network
connection up to 100m (328 ft.)
over Cat5e or better cabling

LED Indicator
LED indicator on the PoE+
injector confirm PoE and network
connectivity.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Gigabit port (data) 1 x Gigabit PoE+ port (data + power)
PoE	Mode A: Pins 1, 2 for power + and pins 3, 6 for power - Max. 30W
Power Consumption	Max. 1.4W (without PD)
Temperature	0° – 40° C (32° – 104° F)
Humidity	Max. 90% non-condensing
Certifications	CE FCC ETL LVD
Dimensions	110 x 57 x 33mm (4.33 x 2.24 x 1.3 in.)
Weight	146g (5.15 oz.)
Warranty	3-year

PACKAGE CONTENTS

TPE-114GI
Power cord (1m / 3.2 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
