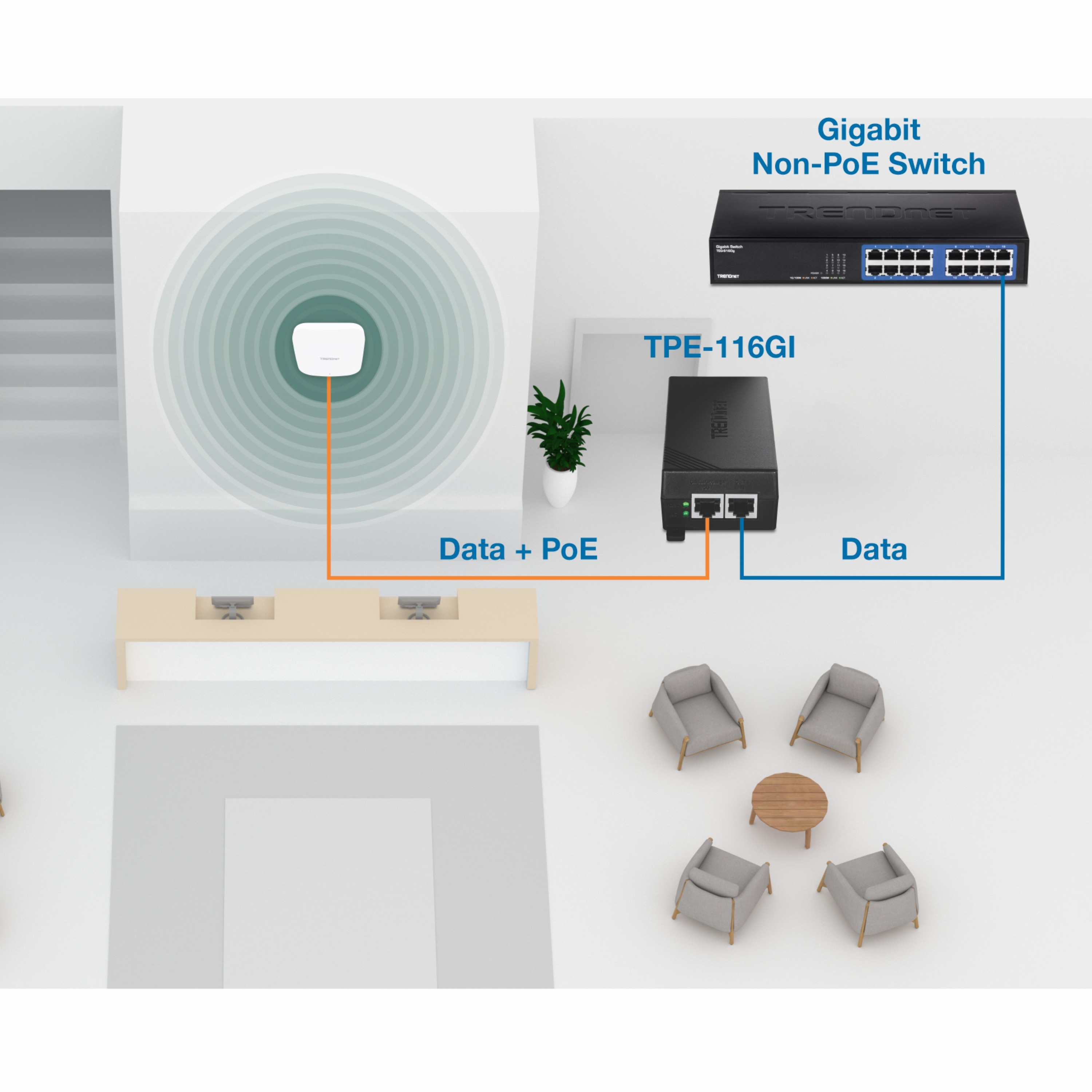

TRENDnet's Gigabit 60W PoE++ Injector, model TPE-116GI, combines electrical power with a gigabit network connection. Autosensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the PoE++ injector to a
non-PoE gigabit switch and run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away.
Network PoE devices, such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE++
Gigabit PoE injector supplies a PoE
device with up to PoE++ (60W) power.

Installation Flexibility
Wall-mount design enclosure
accommodates most
installations scenarios.

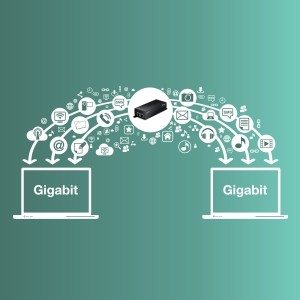

Gigabit
Equipped with a gigabit RJ45 port,
providing gigabit networking speeds
over existing Ethernet cables.

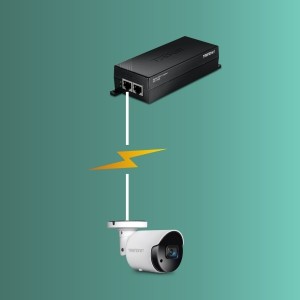

PoE++

Gigabit PoE injector supplies a
PoE device with PoE (15.4W),
PoE+ (30W) or PoE++ (60W)
power

Auto-Sensing Technology

Featuring auto-sensing technology,
the PoE++ injector conveniently
delivers the correct wattage
needed to power your PoE devices

Easy Installation

Simply connect the PoE++ injector
to your switch and PoE device –
no configuration needed

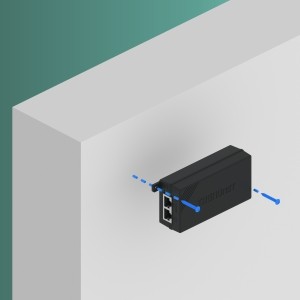

Installation Flexibility

Wall-mount design accommodates
most installations scenarios

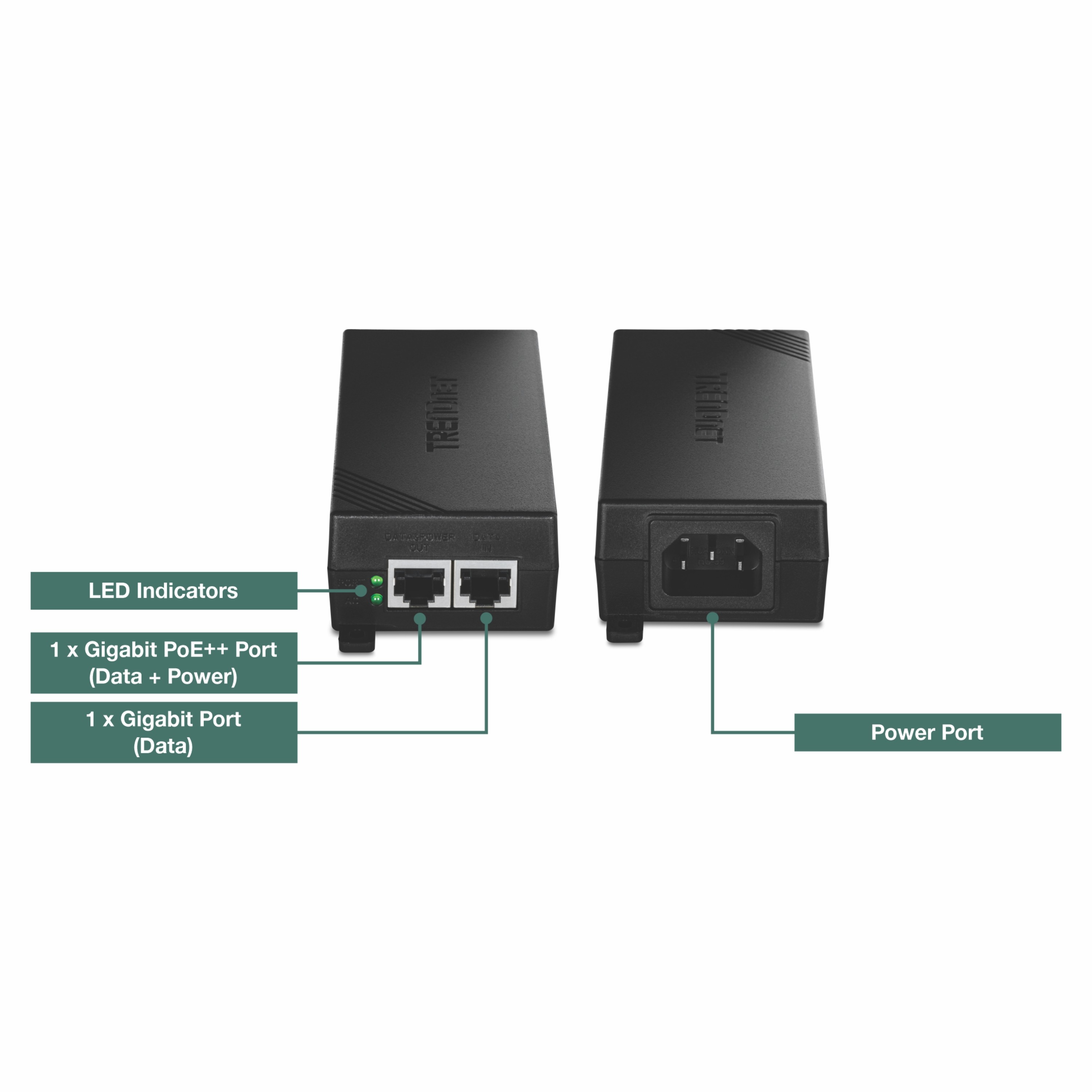

Gigabit Ports
1 x Gigabit port (data) and 1 x
Gigabit PoE++ port (data +
power)

PoE Distance

Provides a PoE network
connection up to 100m (328 ft.)
over Cat5e or better cabling

LED Indicator
LED indicator on the PoE++
injector confirm PoE and network
connectivity

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt
Device Interface	1 x Gigabit port (data) 1 x Gigabit PoE++ port (data + power)
PoE	Pins 1, 2, 4, 5 for power + and pins 3, 6, 7, 8 for power – Max. PoE Budget: 60W
Power Consumption	Max. 0.9W (without PD)
Temperature	0° – 40° C (32° – 104° F)
Humidity	Max. 90% non-condensing
Certifications	CE FCC ETL LVD
Dimensions	155 x 58 x 34mm (6.1 x 2.28 x 1.33 in.)
Weight	214g (7.54 oz.)
Warranty	3-year

PACKAGE CONTENTS

TPE-116GI
Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
