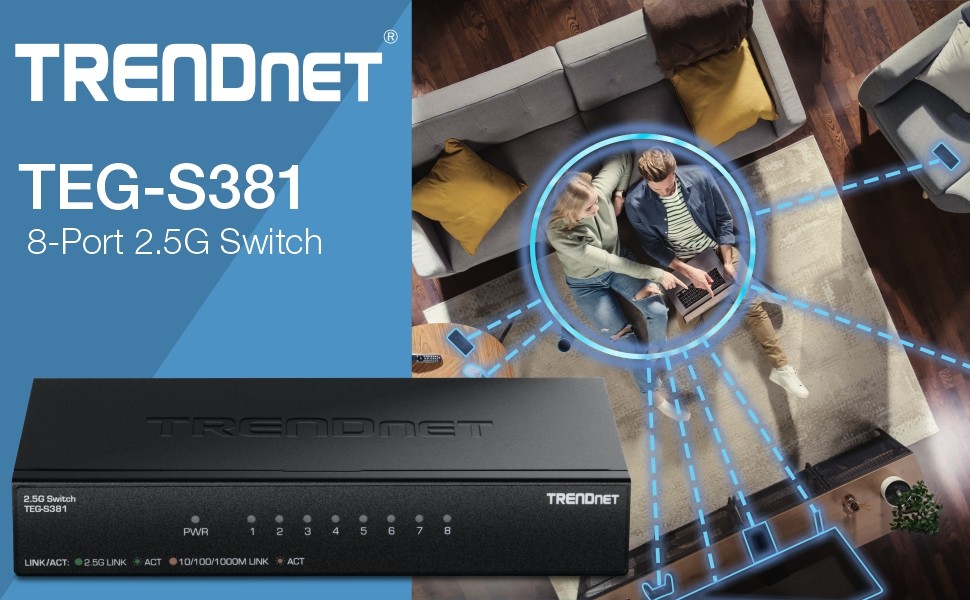

Expand your network’s bandwidth and reduce bottlenecks with TRENDnet’s 8-Port 2.5G Switch, model TEG-S381. The 2.5G network switch comes equipped with 2.5GBASE-T RJ45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This high-speed 2.5G switch features a durable metal enclosure and can be wall mounted for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G switch is a cost-effective solution to increase your network’s throughput.

FEATURES

2.5G Ports

Equipped with eight 2.5GBASE-T RJ45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

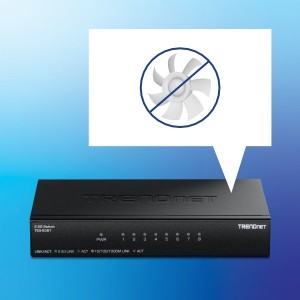

Fanless

The fanless design of the 2.5G switch lowers energy consumption costs and eliminates operating noise.

Lorem ipsum dolor sit amet

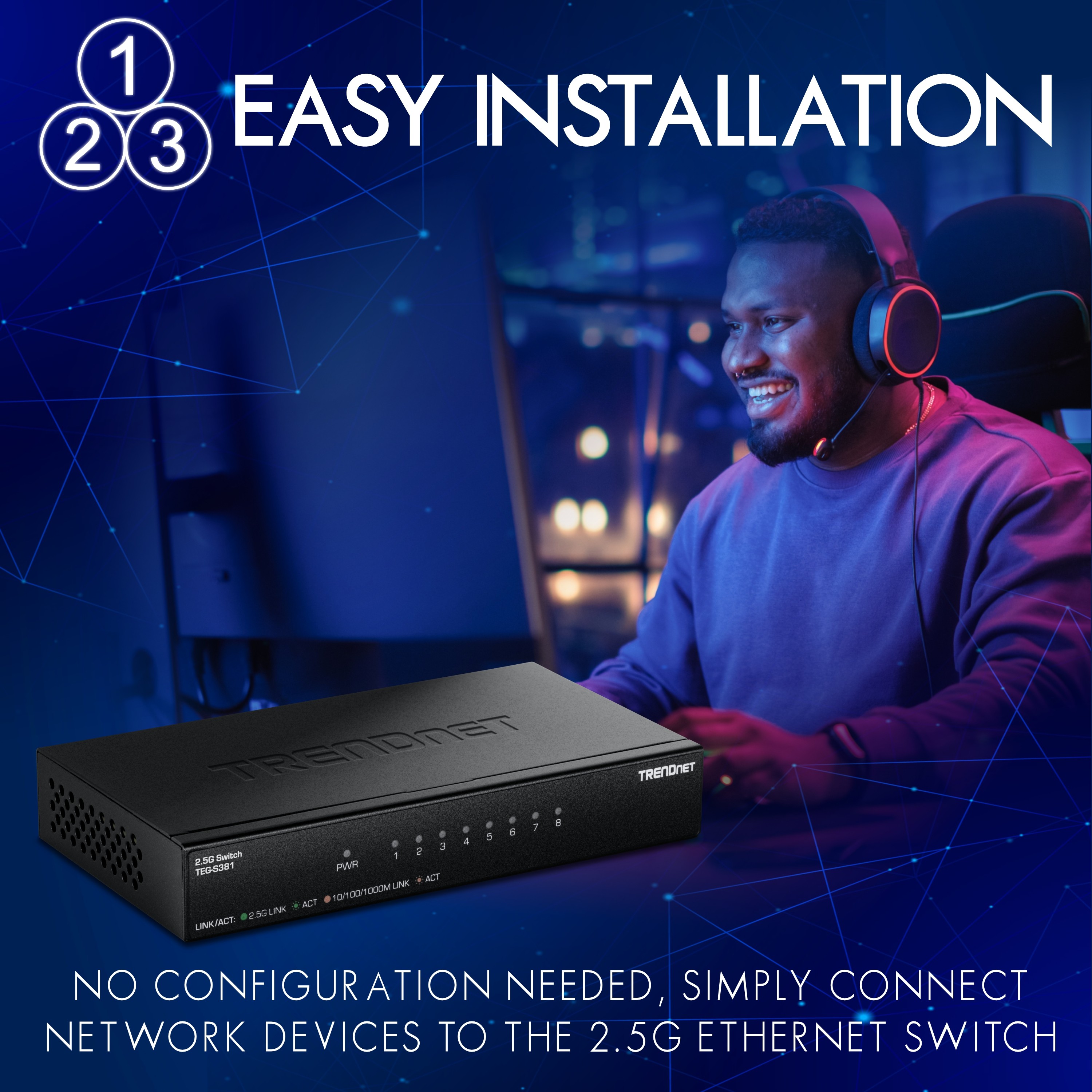

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

2.5G Ports

Equipped with eight 2.5GBASE-T RJ45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Switching Capacity

40Gbps switching capacity

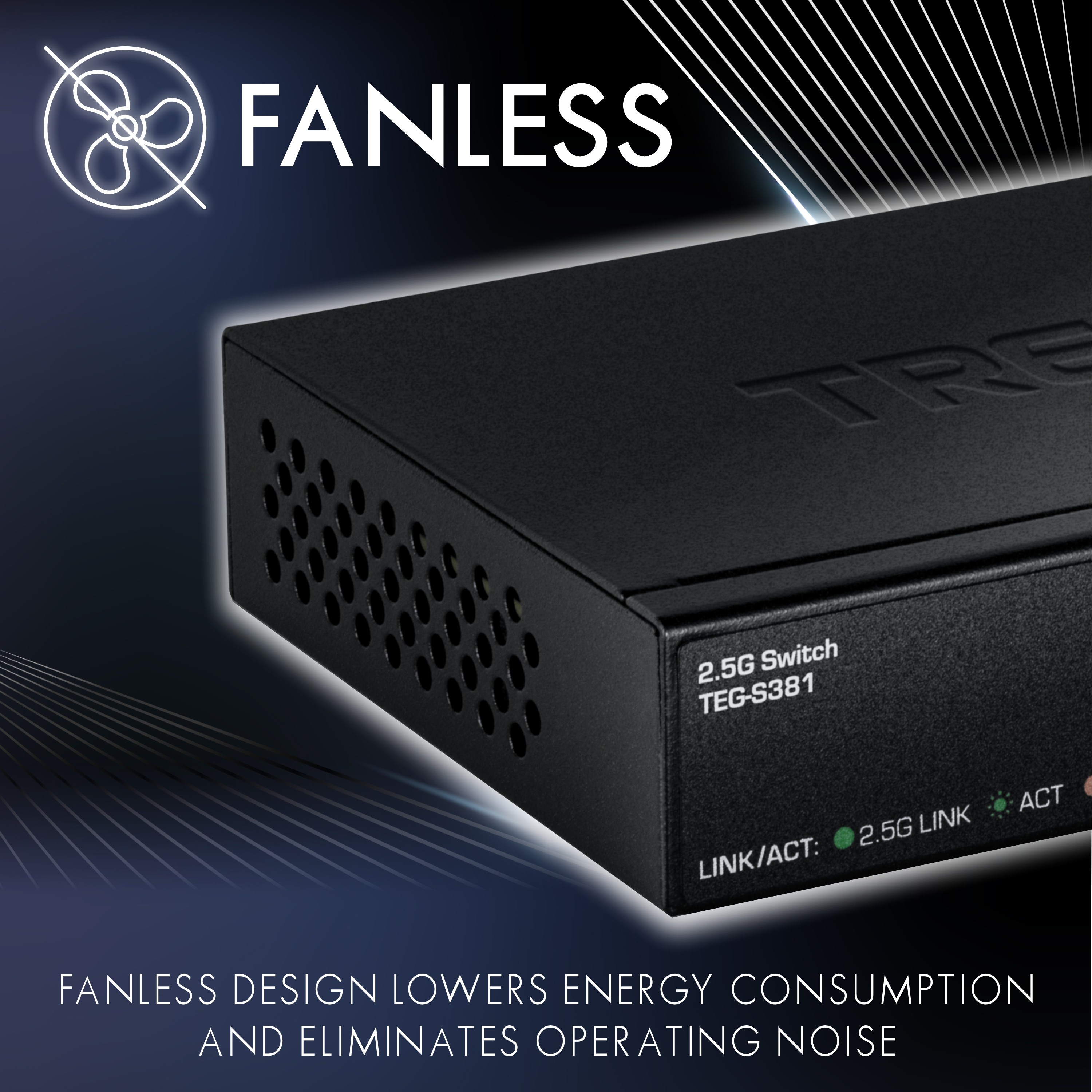

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Lorem ipsum dolor sit amet

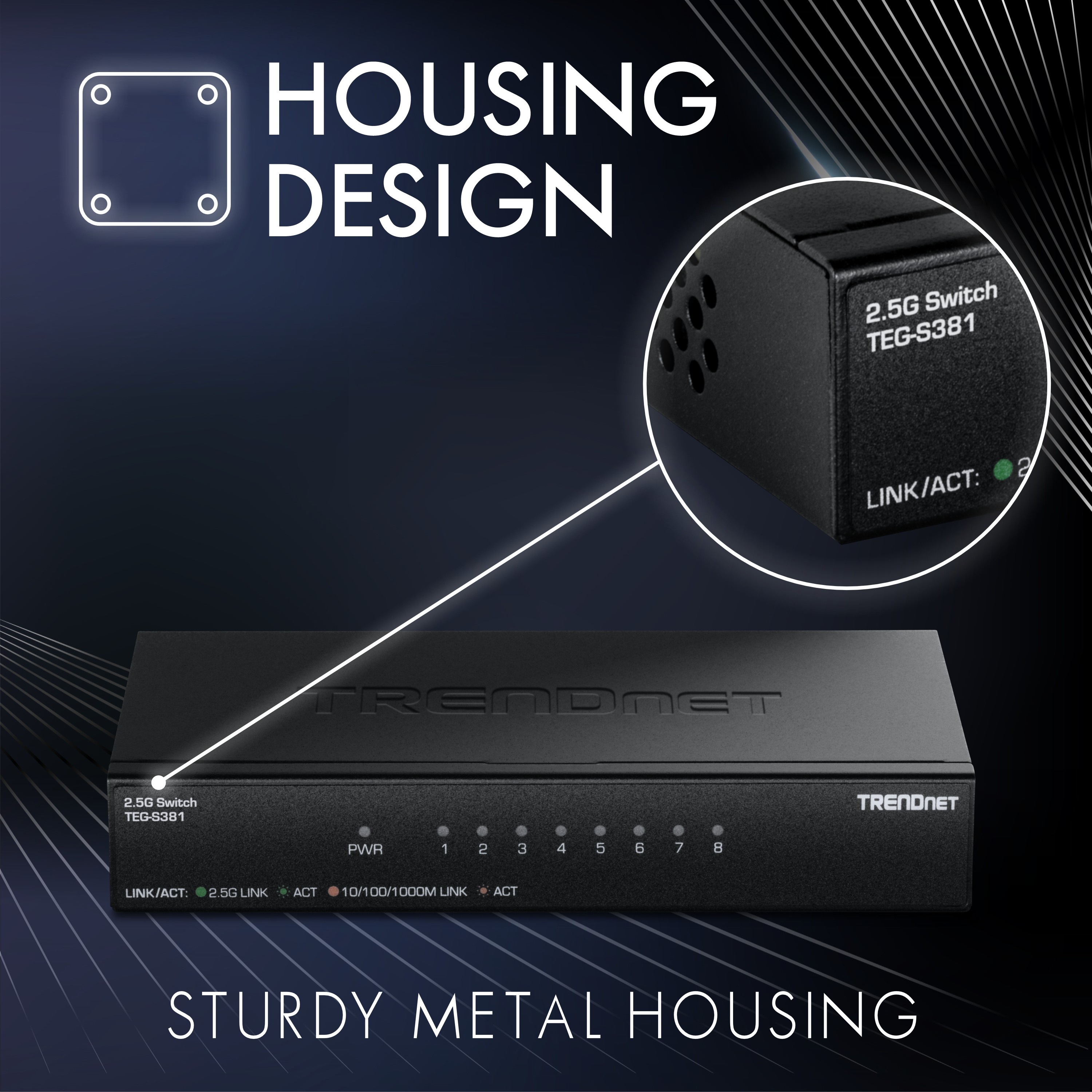

Housing Design

Sturdy metal housing

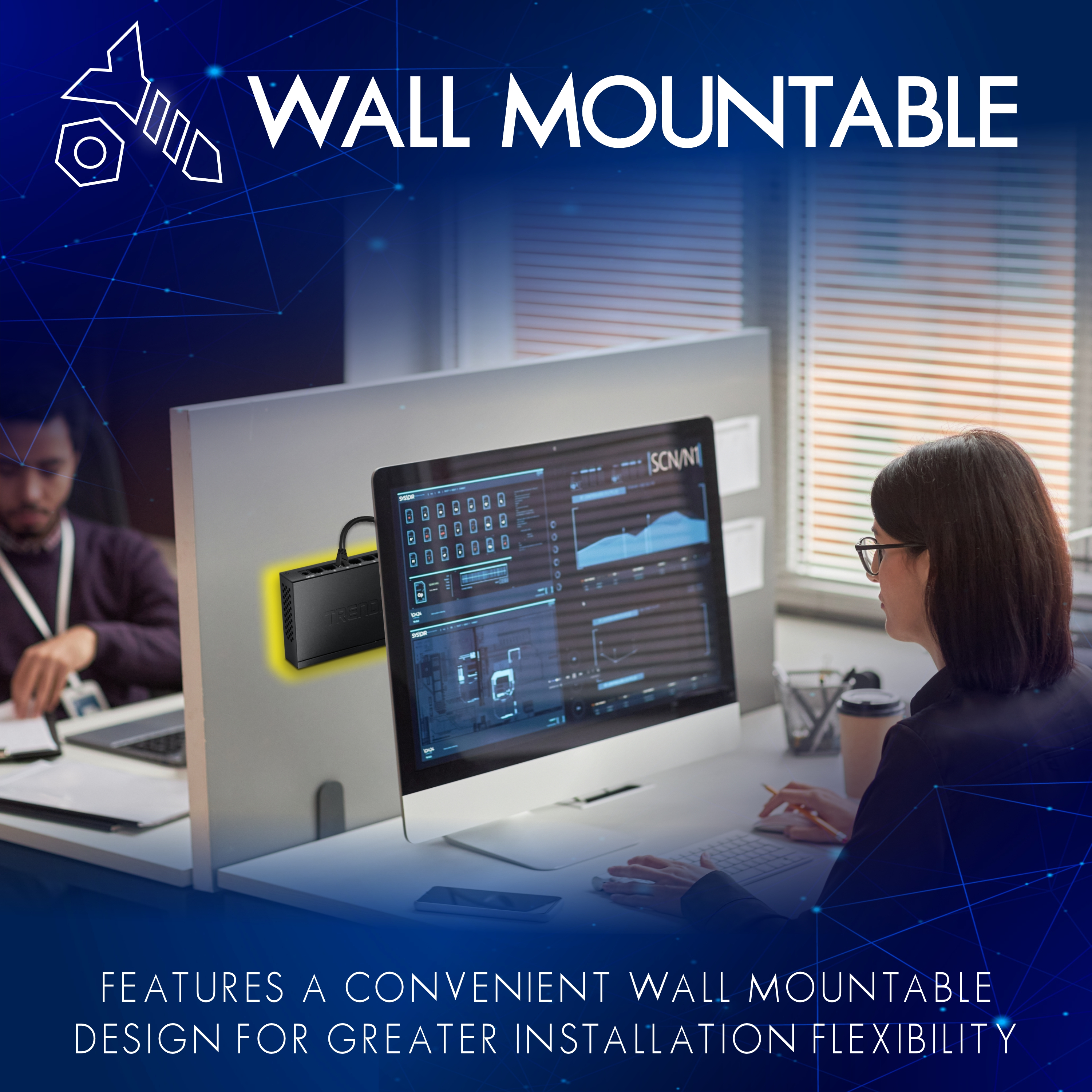

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

LED Indicators

LED indicators on this 2.5G switch conveys port status

SPECIFICATIONS

Standards	IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3az IEEE 802.3x

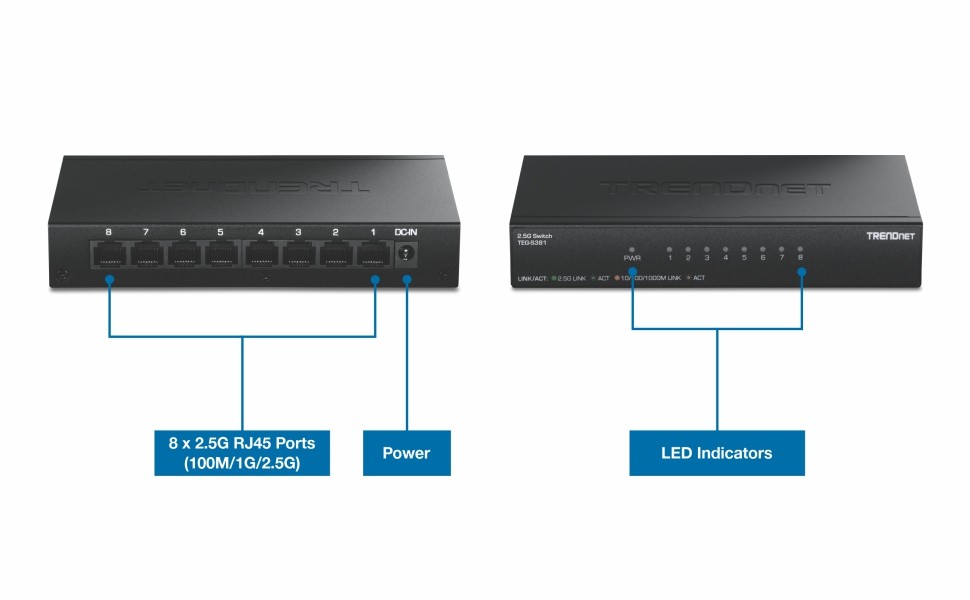

Device Interface	8 x 2.5G RJ45 ports (100M/1G/2.5G) LED indicators
Performance	Switching Capacity: 40Gbps RAM Buffer: 1MB MAC Address Table: 16K entries Jumbo Frames: 10KB Forwarding Rate: 29.76Mpps (64-byte packet size)
Power	Input: 90 – 264V AC, 47/63 Hz, 0.5A Output: 12V DC, 1A external power adapter Max. consumption: 6.85W
Fan/Acoustics	Fanless design
MTBF	904,717 hours @ 25° C
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	155 x 85 x 26mm (6 x 3.3 x 1 in.)
Weight	332g (11.7 oz.)
Certifications	FCC CE LVD
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S381
Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
