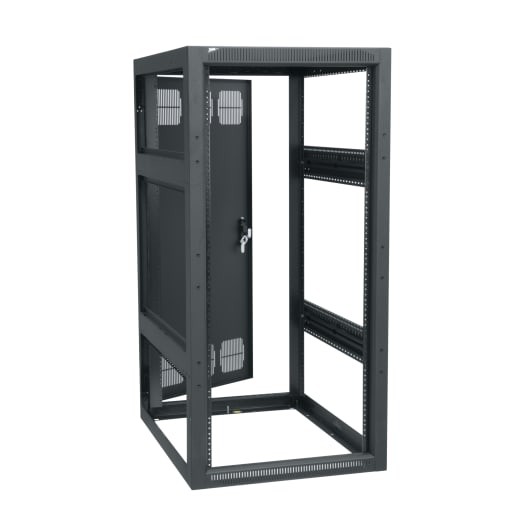

BGR Series - Frame Only
Includes standard vented rack rear door that accepts optional fans. The 1st Forward Compatible rack. Breakthrough design provides high rack strength without extra weight. Accepts Lever Lock™ system tool free cable management accessories. The 23” width gives you extra room in “no-man’s land” for front-to-back cable management and for mounting small devices on Lever Lock™, freeing up valuable rackspace. Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products. Includes standard vented rack rear door that accepts optional fans. Accepts brush grommet rear door kit for a large cable passage without fishing. Wide open rack top and bottom offer many cabling and cooling options. Standard front and rear adjustable Forward Rackrail with numbered spaces.
BGR Series - Pre-Configured for Pro AV
The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management.
The AV Pre-Configured BGR Includes:
Included Forward Panels
- (4) Forward 1RU flanged blank panels (FWD-EB1)
- (2) Forward 2RU flanged blank panels (FWD-EB2)
Included Horizontal Cable Management:
- (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK)
- (1) 4pk of Forward 2” offset horizontal lacer bar (FWD-LB-2A-4PK)
Included Vertical Cable Management:
- (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-35-40)
- (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-35-40) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15
- (2) Lever Lock™ vertical channel (LL-VC21)

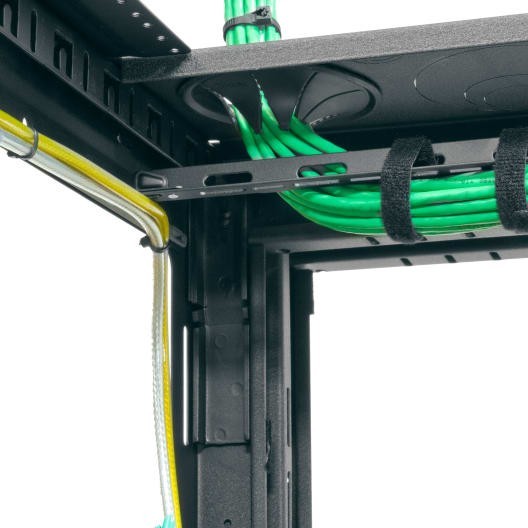

Included Cable Management Accessories:
- (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15)
- (2) Velcro® straps for tie saddles (TW12)
Included Small Device Mounting:
- (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4)
- (1) Lever Lock™ plate for small device mounting (LL-VP2110)
Included Thermal Management:
- (1) DC fan top with 4 fans moving 276CFM. Includes controller and plugs for North America, EU, UK and Australia (IBGR-276FT-FC)
Included Rack Options:
- (1) Solid front door (BFD-38)
- (1) Pair of side panels (BSPN-38-27)
- (1) set of leveling feet (LF-HD)
Included Hardware:
- (100) 10-32 threaded rackscrews (HP)

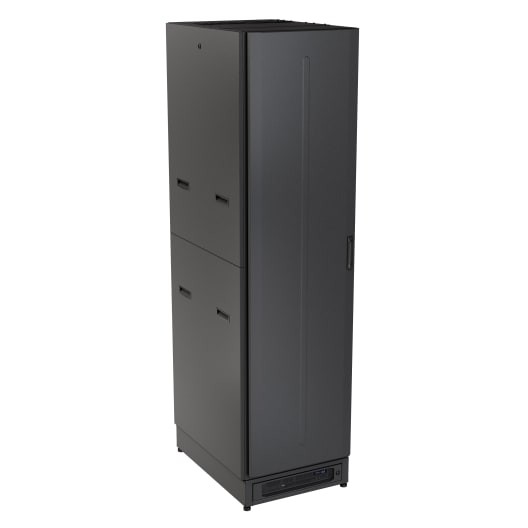

BGR Series - Pre-Configured for Forward
An AV foundation built for tomorrow’s speed. The Forward accessories and options included with the Forward Pre-Configured BGR were hand selected by our product experts with crucial input from customers. The result, a single part number aimed at helping you get the job done in a fraction of the time with everything needed for an optimized foundation to deliver the ultimate AV experience.
The Forward Pre-Configured BGR Includes:
Included Power
- Forward UPS Caster Base (FWD-CBS-1.5KVA-B27) with a NEXSYS™ UPX-1500R-2 pre-installed from our factory ready to be integrated
- (1) 10 outlet Select Series Vertical PDU with RackLink™ (RLNK-1015V)
Included Forward Panels
- (4) Forward 1RU flanged blank panels (FWD-EB1)
- (2) Forward 2RU flanged blank panels (FWD-EB2)
Included Horizontal Cable Management:
- (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK)
- (1) 4pk of Forward 2” offset horizontal lacer bar (FWD-LB-2A-4PK)
Included Vertical Cable Management:
- (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-35-40)
- (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-35-40) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15
- (2) Lever Lock™ vertical channel (LL-VC21)
Included Cable Management Accessories:
- (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15)
- (2) Velcro® straps for tie saddles (TW12)
Included Small Device Mounting:
- (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4)
- (1) Lever Lock™ plate for small device mounting (LL-VP2110)

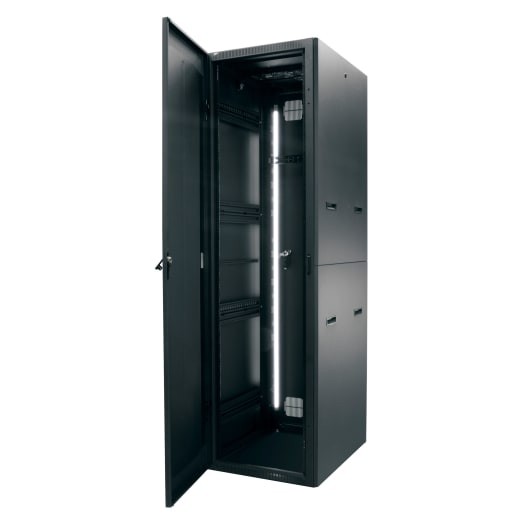

Included Lighting:
- (1) Forward utility light (pair) with IR sensor and dimmer (FWD-LT-UTL-35-40-D)
Included Thermal Management:
- (1) DC fan top with 4 fans moving 276CFM. Includes controller (BGR-276FT-FC)
Included Rack Options:
- (1) Solid front door (BFD-38)
- (1) Pair of side panels (BSPN-38-27)
- (1) set of leveling feet (LF-HD)
Included Hardware:
- (100) 10-32 threaded rackscrews (HP)
Pre-Configured for Pro AV Features
Lever Lock Vertical Plate (LL-VP2110)
Locks in place without tools in Lever Lock™ compatible racks. Locks in place without tools in Lever Lock™ compatible racks. Designed to hold a wide range of small devices
Steel construction with black powder coat finish.
Forward Tie Saddles (FWD-TSW-15) & Velcro Straps for Tie Saddles (TW12)
(1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15). (2) Velcro® straps for tie saddles (TW12).
Cable-Entry Rear Door (BGR-RDCxx)
Provides a large cable passage for easy access without fishing. Provides a large cable passage for easy access without fishing. Brush grommet can be installed at top or bottom of rear door. Vented door accepts optional cooling fans. Steel construction with matching finish.
