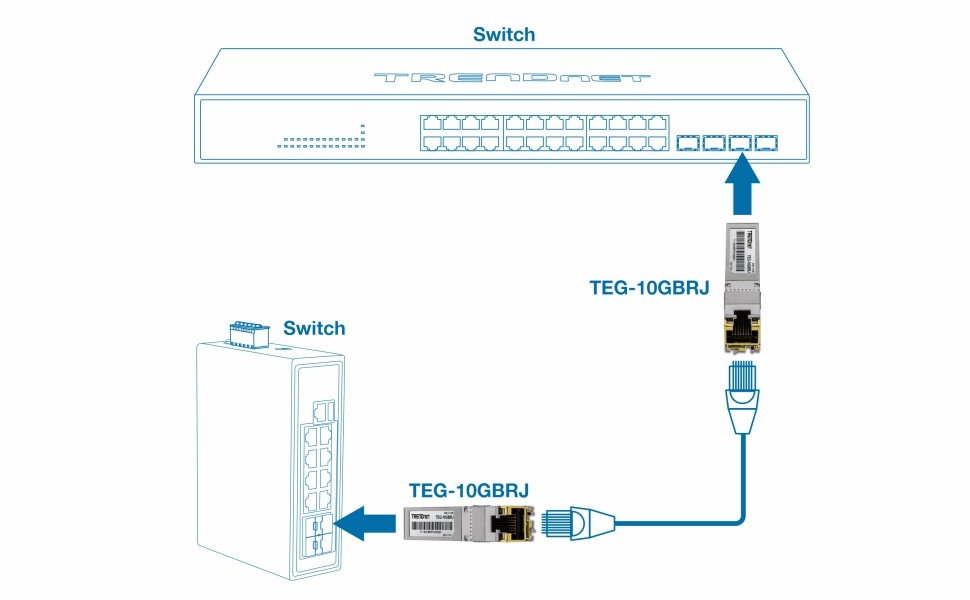

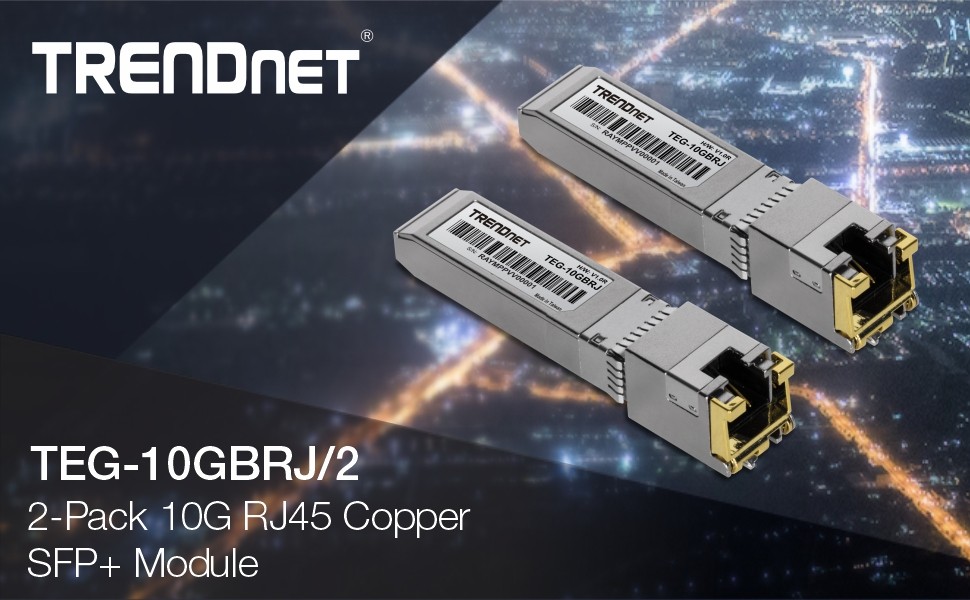

TRENDnet’s 2-Pack 10G RJ45 Copper SFP+ Module, model TEG-10GBRJ/2, converts standard SFP+ ports into an RJ45 multi gigabit port for additional high-speed copper connectivity. These 10G copper SFP+ modules work with standard SFP+ ports commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ ports for reliable copper connectivity with TRENDnet’s 10G copper SFP+ modules.

RJ45 Copper SFP+

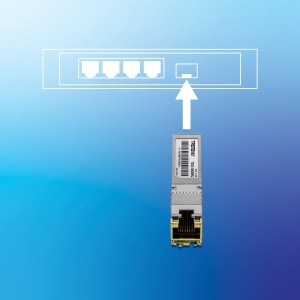

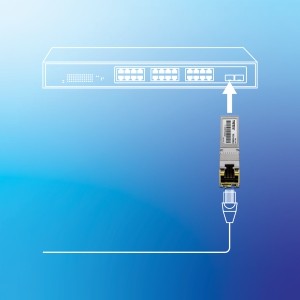

Take advantage of unused SFP+ ports and repurpose them for RJ45 copper multi-gigabit connectivity.

10G Speeds

These SFP+ modules span distances up to 30m (98 ft.) and supports up to 10Gbps speeds.

Compatibility

Compatible with an MSA compliant SFP+ port and multi-gigabit RJ45 copper connections.

Interface

Converts an SFP+ port to a 10Gbps RJ45 port

SFP+

Take advantage of unused SFP+ ports and repurpose them for RJ45 copper multi-gigabit connectivity

10G Speeds

These SFP+ modules span distances up to 30m (98 ft.) and supports up to 10Gbps speeds

Compatibility

Compatible with an MSA compliant SFP+ port and multi-gigabit RJ45 copper connections

Hot-Pluggable

Hot-pluggable 10G copper SFP+ compatible with an MSA compliant SFP+ port

Operating Temperature

Features an operating temperature range of 0°– 65° C (0° – 149° F)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3az IEEE 802.3an IEEE 802.3ab IEEE 802.3bz

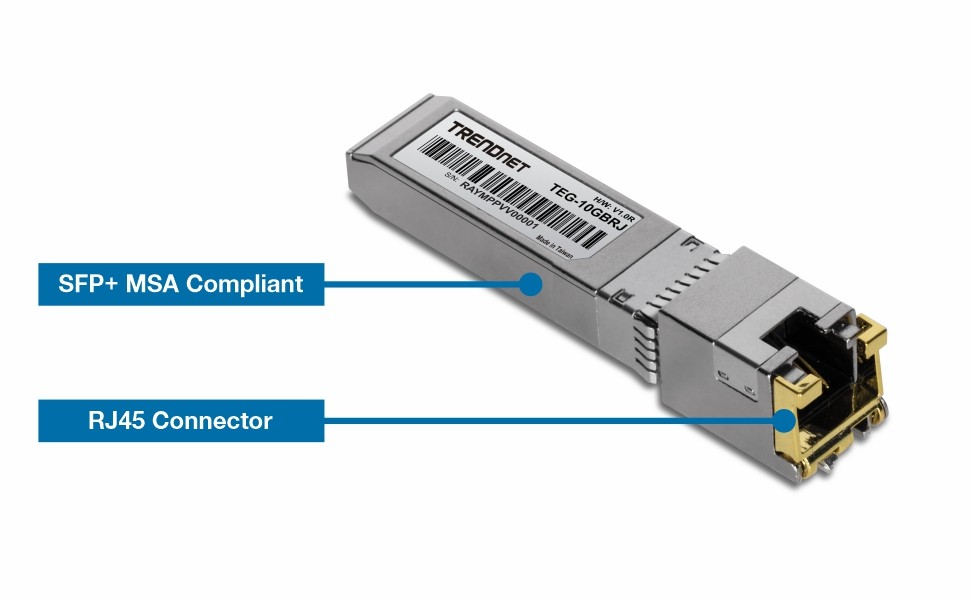

Device Interface	SFP+ MSA compliant RJ45 connector
Data Transfer Rate	Up to 10Gbps
Distance	10Gbps up to 30m (98 ft.) with Cat6A/7 2.5G/5Gbps up to 50m (164 ft.) with Cat5e 1Gbps up to 100m (328 ft.) with Cat5e
Special Features	Hot pluggable Metal enclosure DDM support
Power (per unit)	Max. consumption: 3W
Operating Temperature	0° – 65° C (32° – 149° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (per unit)	68.8 x 13.8 x 13.4mm (2.7 x 0.53 x 0.52 in.)
Weight (per unit)	24g (0.8 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

2 x TEG-10GBRJ

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
